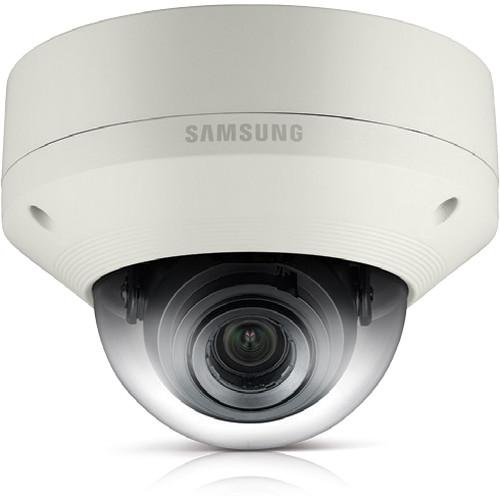

Product description The WiseNet III SNV-7084 3MP Outdoor Network Dome Camera from Samsung features a 3.2MP 1/2.8" progressive scan Exmor CMOS sensor to capture 2048 x 1536 resolution video at up to 30 fps. The camera features wide dynamic range to produce accurate images and a motorized varifocal lens for a wide range of monitoring.
The camera compresses video into H.264 and MJPEG codecs for enhanced recording capacity and low bandwidth consumption. It also can support up to a 64GB microSD card (available separately) for local video storage in case of network disconnection or alarm triggers that include motion detection, tampering, audio detection, face detection, video analytics, and alarm input. This camera is IP66- and IK10-rated for protection against dust, water, and impact. - 3MP 1/2.8" progressive scan CMOS sensor captures video at 2048 x 1536 resolution at up to 30 fps
- 3-8.5mm varifocal lens with motorized focus
- Electronic IR cut filter for day/night recording
- Built-in microSD card slot for on-board storage in the event of network failure or alarm trigger
- IP66-rated for protection against dust and water
- IK10-rated for vandal resistance
In the Box Hanwha Techwin WiseNet III SNV-7084 3MP Outdoor Network Dome Camera Software CD L Wrench Cable Bush Drill Bit Monitor Testing Cable Audio/Alarm Cable Power Cable Power Terminal Block Mounting Hardware Mounting Template Brochure PDF 856.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet III SNV-7084 3MP Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNV-7084 Specs | | | Imaging Device | 3.2 MP 1/2.8" progressive scan CMOS sensor | | Total Pixels (H x V) | 2065 x 1565 | | Effective Pixels (H x V) | 2065 x 1553 | | Minimum Illumination | Color: 0.1 lux (f/1.2, 50 IRE), 0.06 lux (f/1.2, 30 IRE), 0.0017 lux (2 sec, f/1.2, 30 IRE)
B&W: 0.01 lux (f/1.2, 50 IRE), 0.006 lux (f/1.2, 30 IRE), 0.00017 lux (2 sec, f/1.2, 50 IRE) | | S / N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p/75 Ohms composite, 720 x 480 (NTSC), 720 x 576 (PAL), for installation DIP connector type | | Pan / Tilt / Rotate | 0 to 354° / 0 to 67° / 0 to 355° | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | | | Focal Length (Zoom Ratio) | 3-8.5mm (2.8x) motorized varifocal lens | | Maximum Aperture Ratio | f/1.2 | | Angular Field of View | Horizontal: 100.12° (wide) to 35.38° (tele)
Vertical: 73.76° (wide) to 26.58° (tele) | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus / manual, remote control via network (manual, simple focus) | | Lens Type | DC auto iris, P-iris | | Mount Type | Board-in | | | | Camera Title | Off / on (displayed up to 45 characters) | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / on) | | Digital Noise Reduction (DNR) | SSNRIII (2D+3D noise filter) (Off / on) | | Image Stabilization | Off / on | | Defog | Off / auto / manual | | Motion Detection | Off / on (4 zones with 4 points polygonal) | | Privacy Masking | Off / on (32 zones with 4 points polygonal) | | Gain Control | Off / low / middle / high | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti-flicker (1 to 1/12,000 sec) | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, and face detection with metadata | | | | Alarm I/O | 1 x input / 1 x output | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, network disconnection, video analytics, and alarm input | | Alarm Events | File upload via FTP and email, notification via email, TCP & HTTP
Local storage (microSD) recording at network disconnection, event (alarm triggers), external output | | | | Ethernet | RJ45 10/100Base-T | | IP | IPv4, IPv6 | | Supported Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security Access | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / multicast | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Maximum User Access | 15 users in unicast mode | | | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Resolution | 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: Maximum 30 fps at 2048 x 1536, 1600 x 1200
Maximum 60 fps at other resolutions
MJPEG: Maximum 10 fps at 2048 x 1536
Maximum 15 fps at 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Maximum 30 fps at 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Smart Codec | Manual mode (Area-Based: 5), face detection mode | | Video Quality Adjustment | H.264: Compression level, target bit rate level control
MJPEG: Quality level control | | | | Audio In | Selectable (mic in / line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm mono jack)
Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law / G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, 40 kb/s | | Audio Communication | Two-way audio | | | | Supported OS | Supported OS: Windows XP, Vista, 7, 8, 8.1
Mac OS X 10.7 | | Web Viewer | Supported Browser: Microsoft Internet Explorer (version 11, 10, 9, 8), Mozilla Firefox (version 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9), Google Chrome (version 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15)Windows only
Apple Safari 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7 (Mac OS X only) | | CMS | SmartViewer, SSM | | | | Input Power | 24 VAC, 12 VDC, PoE (IEEE 802.3af class 3) | | Maximum Power Consumption | 12 VDC, Heater Off/On: 9 W/11.5 W
PoE, Heater Off/On: 10/12.5 W
24 VAC, Heater Off/On: 11/13 W | | | | Operating Temperature | 40 to 131°F (-40 to 55°C) | | Starting Temperature | -31°F (-35°C) or above | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Relative Humidity, Operating/Non-Operating | <90% RH | | | | Application Programming Interface | ONVIF Profile S, HTTP API v2.0, SVNP 1.2 | | Memory Card Slot | microSD / SDHC / SDXC
Motion images recorded in the SDXC / SDHC / SD memory card can be downloaded (available separately) | | Material | Aluminum | | Dimensions (Ø x H) | 6.3 x 4.7" (160 x 118.5 mm) | | Weight | 2.1 lb (0.96 kg) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 10.5 x 9.3 x 8.0" |
