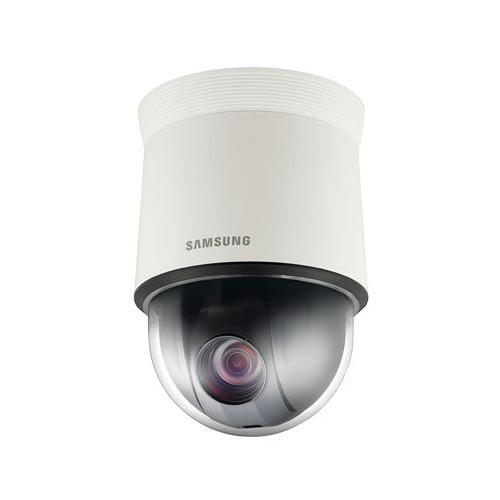

User Manual for Hanwha Techwin WiseNet Lite 1.3MP 23x PTZ Network Dome Camera with 4.44-102.1mm Lens Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Lite 1.3MP 23x
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet Lite 1.3MP 23x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The ivory WiseNet Lite 1.3MP 23x PTZ Network Dome Camera from Samsung features a 1/3" progressive scan CMOS sensor and a 4.44-102.1mm varifocal lens for capturing videos at a maximum resolution of 1280 x 1024. It supports PoE+ and features a SD/SDHC/SDXC memory card slot for on-board recording. In addition, the camera comes with bi-directional audio support. - Maximum resolution of 1.3MP (1280 x 1024)
- 16:9 HD (720p) resolution support
- 4.44-102.1mm (23x) optical zoom, 12x digital zoom
- Day & night (ICR), WDR (100 dB)
- Minimum illumination of 0.05 lux at f/1.6 (color) and 0.005 Lux at f/1.6 (B&W)
- H.264, MJPEG dual codec with multiple streaming
- Intelligent video analytics
- SD/SDHC/SDXC memory card slot
- Bi-directional audio support
In the Box Hanwha Techwin WiseNet Lite 1.3MP 23x PTZ Network Dome Camera with 4.44-102.1mm Lens Cable for the Testing Monitor Installation Base 4 x Tapping Screw Template Insulation Sheet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Lite 1.3MP 23x PTZ Network Dome Camera with 4.44-102.1mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNP-L5233 Specs | | | Imaging Device | 1/3" 1.3 MP CMOS | | Total Pixels (H x V) | 1312 x 1069, 1.4 MP | | Effective Pixels (H x V) | 1305 x 1049, 1.37 MP | | Scanning System | Progressive | | Minimum Illumination | Color: 0.1 lux (1/30 sec, f/1.6, 50 IRE, AGC high), 0.005 lux (2 sec, f/1.6, 50 IRE, AGC high)
B&W: 0.01 lux (1/30 sec, f/1.6, 50 IRE, AGC high), 0.0005 lux (2 sec, f/1.6, 50 IRE, AGC high)
Color: 0.05 lux (1/30 sec, f/1.6, 30 IRE), 0.0025 lux (2 sec, f/1.6, 30 IRE)
B&W: 0.005 lux (1/30 sec, f/1.6, 30 IRE), 0.00025 lux (2 sec, f/1.6, 30 IRE) | | S / N Ratio | 50 dB | | Video Out | CVBS: 1 V p-p / 75 Ohms Composite, 720 x 480 (NTSC), 720 x 576 (PAL) for installation | | | | Focal Length (Zoom Ratio) | 4.44-102.1mm (optical 23x) | | Maximum Aperture Ratio | f/1.6 (wide), f/3.63 (tele) | | Angular Field of View | H: 56.8 (wide) to 2.8° (tele)
V: 46.3 (wide) to 2.24° (tele) | | Minimum Object Distance | Wide: 4.9' (1.5 m)
Tele: 6.56' (2 m) | | Focus Control | Auto / manual / one push | | Lens Type | DC auto iris | | Mount Type | Board-in | | | | Pan Range | 360° endless | | Pan Speed | Preset: 500°/sec
Manual: 0.024 to 120°/sec | | Tilt Range | 210° (-15 to 195°) | | Tilt Speed | Preset: 500°/sec
Manual: 0.024 to 120°/sec | | Sequence | 255 Presets, Swing, 6 Groups, Trace, Tour, Auto Run, Schedule | | Preset Accuracy | ±0.2° | | Azimuth | Yes (E / W / S / N / NE / NW / SE / SW) | | | | Camera Title | Off / on (displayed up to 45 characters) | | Day & Night | Auto (ICR) / color / B&W | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 100 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (off / on) | | Digital Noise Reduction (DNR) | SSNRIII (2D+3D noise filter) (off / on) | | Digital Image Stabilizer | Off / on | | Defog | Auto / manual / off | | Motion Detection | Off / on (4 rectangle zones) | | Privacy Masking | Off / on (32 zones of rectangle zone) with zoom threshold mosaic option | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury | | Electronic Shutter Speed | Minimum / maximum / anti flicker (2 to 1/12,000 sec) | | Digital Zoom | 12x | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, face detection | | Alarm I/O | 4 x Input / 2 x output (relay) | | Remote Control Interface | RS-485 | | RS-485 Protocol | Samsung-T/E, Pelco P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE | | Audio In | Selectable (Mic in/line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm mono jack)
Maximum Output Level: 1 Vrms | | Alarm Triggers | Motion detection, tampering, audio detection, face detection, video analytics, alarm input, network disconnection | | Alarm Events | File upload via FTP and email, notification via email, TCP, and HTTP, local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (alarm triggers), external output | | | | Ethernet | RJ45 (10/100BaseT) | | Video Compression Format | H.264 (MPEG-4 Part 10/AVC), MJPEG | | Resolution | 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: Maximum 30 fps at all resolutions
MJPEG:
15 fps (maximum) at 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
30 fps (maximum) at 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Smart Codec | Manual mode (Area-Based: 5)
Face detection mode | | Video Quality Adjustment | H.264: Compression level, target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio Compression Format | G.711 μ-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kb/s, 24 kb/s, 32 kb/s, 40 kb/s | | Audio Communication | Bi-directional | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 10 users at unicast mode | | Edge Storage | SD/SDHC/SDXC slot for supporting memory card (card available separately)
Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded via NAS (Network Attached Storage) | | Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Romanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS : Windows XP / Vista / 7 / 8 / 8.1, Mac OS X 10.7 / 10.8
Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 32), Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7)
Apple Safari support for Mac OS X only | | Central Management | Software: SmartViewer, SSM | | | | Input Voltage | 24 VAC ± 10%, PoE+ (IEEE 802.3af, Class4) | | Power Consumption | 20 W | | | | Operating Temperature / Humidity | 14°F to 131°F (-10 to 55°C) / less than 90% RH | | Storage Temperature / Humidity | -22 to 140°F (-30 to 60°C) / less than 90% RH | | Vandal Resistant | IK10 (with SHP-3701H available separately) | | | | Material | Plastic and metal | | Dimensions (Ø x H) | 5.98 x 8.58" (152 x 218 mm) | | Weight | 3.97 lb (1.8 kg) |
