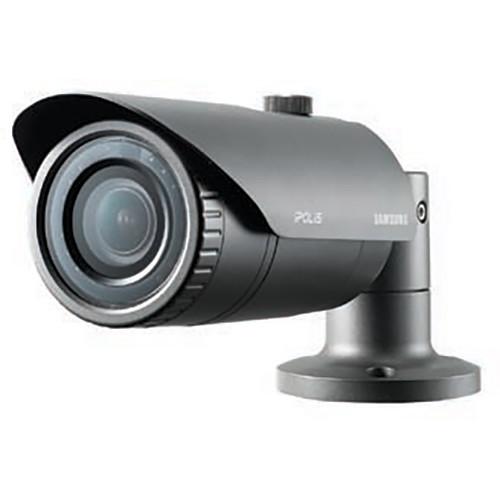

User Manual for Hanwha Techwin WiseNet Lite 1.3MP Vandal-Resistant Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Lite 1.3MP Vandal-Resistant
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet Lite 1.3MP Vandal-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The dark gray WiseNet Lite 1.3MP Vandal-Resistant Network Bullet Camera from Samsung utilizes a 1/3" 1.37MP CMOS imaging sensor and 2.8 to 12mm varifocal lens to capture video in 1280 x 1024 resolution. For night vision, the camera is equipped with IR LEDs with a range of up to 66’ and minimum illumination of 0 lux. It supports H.264 and MJPEG dual codec video compressions and allows multiple streaming. - 1.3MP (1280 x 1024) resolution
- 16:9 HD (720p) resolution support
- 2.8 to 12mm (4.3x) varifocal lens
- 0.04 lux @ f/1.4 (color), 0 lux @ f/1.4 (B&W: IR LED on)
- Maximum 30 fps in all resolutions in H.264
- H.264, MJPEG dual codec, multiple streaming
- Motion detection and tampering alerts
- micro SD/SDHC memory slot, PoE
- Hallway view support (rotate 90˚/270˚)
- LDC support (Lens Distortion Correction)
In the Box Hanwha Techwin WiseNet Lite 1.3MP Vandal-Resistant Network Bullet Camera with Night Vision Software CD Mounting Hardware L Wrench Sunshield Card-Type Moisture Absorbent Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Lite 1.3MP Vandal-Resistant Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNO-L5083R Specs | Image Sensor | 1/3" 1.37 MP CMOS | | Total Pixels (H x V) | 1,312 (H) x 1,069 (V) | | Effective Pixels (H x V) | 1,305 (H) x 1,049 (V) | | Scanning System | Progressive | | Minimum Illumination | Color: 0.04 lux (1/30 sec, f/1.4), 0.001 lux (2 sec, f/1.4) B&W: 0 lux (IR LED on) | | Lens | 2.8 to 12mm (4.3x) varifocal | | Maximum Aperture | f/1.4 | | Angular Field of View | H: 88.2 (wide) to 28.6˚(tele)
V: 69.4 (wide) to 23.0˚(tele)
D: 117.3 (wide) to 36.2˚(tele) | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Manual | | Lens Type | DC auto iris | | Mount Type | Board type | | | | IR Range | 65.6' (20 m) | | Camera Title | Off / On (Displayed up to 15 characters) | | Day & Night | True Day & Night | | Backlight Compensation | Off / BLC | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction | SSNR (Off / On) | | Motion Detection | Off / On (4 rectangular zones) | | Privacy Masking | Off / On (6 rectangular zones) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Lens Distortion Correction | Off / On (5 levels with min / max) | | Electronic Shutter Speed | Minimum / Maximum / Antiflicker | | Flip Mirror Images | Flip / Mirror / Hallway view | | Intelligent Video Analytics | Motion detection with metadata, Tampering | | Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error | | Alarm Events | File upload via FTP and email, Local storage recording at event, Notification via email | | | | Ethernet | RJ45 (10/100BASE-T) | | Video Compression Format | H.264, MJPEG | | Resolution | 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240 | | Frame Rate | H.264: Max. 30 fps at all resolutions
MJPEG: Max. 1 fps at 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Maximum 15 fps at other resolutions | | Video Quality Adjustment | H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to 3 profiles) | | Audio I/O | Line in | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16, 24, 32, 40 kb/s | | Audio Communication | Uni-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 6 users in unicast mode | | Storage | microSD/SDHC max. 32 GB, NAS
- Motion images recorded to the SD memory card can be downloaded
- Manual recording at local PC | | Application Programming Interface | ONVIF Profile S, G, SUNAPI (HTTP API) | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish | | Web Viewer | Supported OS: Windows XP / Vista / 7 / 8 / 8.1, Mac OS X 10.7 to 10.10
Supported Browsers: Microsoft Internet Explorer (Ver. 8 to 11), Mozilla Firefox (Ver. 9 to 35), Google Chrome (Ver. 15 to 40), Apple Safari (Ver. 8.0.2 (Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7), Mac OS X only | | Management Software | SmartViewer | | | | Operating Temperature | -22 to +131°F (-30 to +55°C)
Startup should be done at above -4°F (-20°C) | | Storage Temperature | -22 to +140°F (-30 to +60°C) | | Humidity | Less than 90% RH | | Ingress protection | IP66 | | Vandal Resistance | IK10 | | | | Input Voltage | PoE (IEEE802.3af, Class2) | | Power Consumption | Max. 5.9 W | | | | Dimensions (Ø x D) | 2.76 x 9.69" (7 x 24.6 cm) (Without sunshield) | | Weight | 22.9 oz (650 g) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 11.2 x 4.8 x 4.5" |
