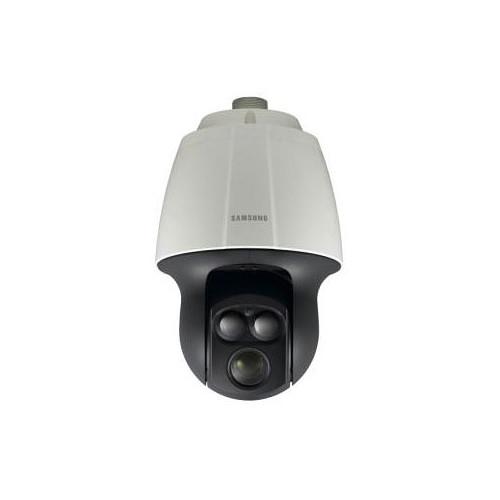

Product description The ivory WiseNet Lite 2MP Outdoor 23x PTZ Network Dome Camera from Samsung features a 1/2.8" progressive scan CMOS sensor and 4.44 to 101.2mm varifocal lens for capturing videos at a maximum resolution of 1920 x 1080. It supports PoE+ and features an SD/SDHC/SDXC memory card slot for on-board recording. In addition, the camera comes with bi-directional audio support.Enclosed in an IK10- and IP66-rated housing, the camera can be used for both indoor and outdoor applications in areas where vandalism is a concern. - Maximum resolution of 2MP (1920 x 1080)
- 16:9 full HD (1080p) resolution support
- IK10- and IP66-rated outdoor housing
- 4.44-101.2mm (23x) optical zoom, 12x digital zoom
- Day & night (ICR), WDR (100 dB)
- H.264, MJPEG dual codec with multiple streaming
- Intelligent video analytics
- SD/SDHC/SDXC memory card slot
- Bi-directional audio support
In the Box Hanwha Techwin WiseNet Lite 2MP Outdoor 23x PTZ Network Dome Camera with 4.44-101.2mm Lens Cable for the Testing Monitor 3 x Hexagon Screw L Wrench Installation Base Waterproofing Accessory Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Lite 2MP Outdoor 23x PTZ Network Dome Camera with 4.44-101.2mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNP-L6233RH Specs | | | Imaging Device | 1/2.8" 2.38 MP CMOS | | Total Pixels (H x V) | 1952 x 1116, 2.18 MP | | Effective Pixels (H x V) | 1944 x 1104, 2.14 MP | | Scanning System | Progressive | | Minimum Illumination | Color: 0.3 lux (1/30 sec, f/1.6, 50 IRE) , 0.005 lux (2 sec, f/1.6, 50 IRE)
0.1 lux (1/30 sec, f/1.6, 30 IRE), 0.0005 lux (2 sec, f/1.6, 30 IRE)
B&W : 0 lux (IR LED on) | | S / N Ratio | 50 dB | | Video Out | CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (NTSC), 720 x 576 (PAL) for installation | | | | Focal Length (Zoom Ratio) | 4.44-101.2mm (optical 23x) | | Maximum Aperture Ratio | f/1.6 (wide), f/4.5 (tele) | | Angular Field of View | H: 63.68 (wide) to 3.1° (tele)
V: 37.5 (wide) to 1.76° (tele) | | Minimum Object Distance | Wide: 4.9' (1.5 m) | | Focus Control | AF / One-shot AF / Manual | | Lens Type | DC auto iris | | Mount Type | Board-in | | | | Pan Range | 360° endless | | Pan Speed | Preset: 250°/sec
Manual: 0.024 to 120°/sec | | Tilt Range | 190° (-5 to 185°) | | Tilt Speed | Preset: 250°/sec
Manual: 0.024 to 120°/sec | | Sequence | 255 Presets, Swing, 6 Groups, Trace, Tour, Auto Run, Schedule | | Preset Accuracy | ±0.2° | | Azimuth | Yes (E / W / S / N / NE / SE / NW / SW OSD) | | | | IR LED | 2ea | | IR Range | 328' (100 m) | | Camera Title | Off / on (displayed up to 15 characters) | | Day & Night | Auto (ICR) / color / B&W | | Backlight Compensation | Off / BLC / HLC / WDR | | Wide Dynamic Range | 100 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (off / on) | | Digital Noise Reduction (DNR) | SSNR (2D+3D noise filter) (off / on) | | Digital Image Stabilizer | Off / on | | Defog | Auto / manual / off | | Motion Detection | Off / on (4 rectangle zones) | | Privacy Masking | Off / on (32 zones of rectangle zone) with zoom threshold mosaic option | | Gain Control | Off / Low / Middle / High / Manual | | White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium | | Electronic Shutter Speed | Minimum / maximum / anti flicker (2 to 1/12,000 sec) | | Digital Zoom | 12x area zoom function support digital zoom 2x | | Flip / Mirror | Off / on | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, face detection | | Alarm I/O | 4 x Input / 3 x output (relay) | | Remote Control Interface | RS-485/422 | | RS-485 Protocol | Samsung-T/E, Pelco P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE | | Alarm Triggers | Motion detection, intelligent video analytics, alarm input, network disconnection | | Alarm Events | File upload via FTP and email, notification via email, local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (alarm triggers), external output, PTZ preset | | | | Ethernet | RJ45 (10/100BaseT) | | Video Compression Format | H.264 (MPEG-4 Part 10/AVC): Main / Baseline / High, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: Maximum 30 fps at all resolutions
MJPEG:
15 fps (maximum) at 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
30 fps (maximum) at 800 x 600, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Smart Codec | Manual mode (Area-Based: 5)
Face detection mode | | Video Quality Adjustment | H.264: Compression level, target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio Compression Format | G.711 μ-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kb/s, 24 kb/s, 32 kb/s, 40 kb/s | | Audio Communication | Bi-directional | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at unicast mode | | Edge Storage | SD/SDHC/SDXC (up to 128 GB) slot for supporting memory card (card available separately)
Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded via NAS (Network Attached Storage)
Local PC for instant recording | | Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Romanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP / Vista / 7 / 8, Mac OS X 10.7
Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 19), Google Chrome (Version 15 to 25), Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7)
Mac OS X only Apple Safari support for Mac OS X only | | Central Management | Software: SmartViewer, SSM | | | | Input Voltage | 24 VAC only / 6A | | Power Consumption | Maximum 30 W (heater off)
Maximum 35 W / 90W (heater off/on, IR on) | | | | Operating Temperature / Humidity | -58 to 131°F (-50 to 55°C) / less than 90% RH
| | Storage Temperature / Humidity | -22 to 140°F (-30 to 60°C) / less than 90% RH | | Ingress Protection | IP66 | | Vandal Resistant | IK10 (with SHP-3701H available separately) | | | | Material | Plastic and metal | | Dimensions (Ø x H) | 9.76 x 15.73" (248 x 400 mm) | | Weight | 16 lb (7.1 kg) | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 21.8 x 18.0 x 14.2" |
