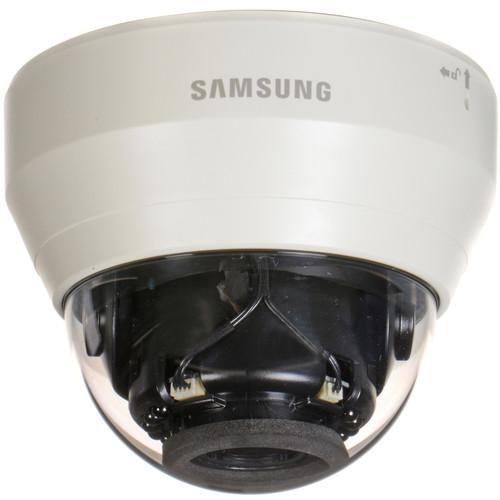

Product description The ivory WiseNet Lite Series 1.3MP Full HD Network IR Dome Camera from Samsung features a 1.3" progressive scan CMOS sensor and a 2.8 to 12mm varifocal lens. It features IR illuminators that help capture images up to 49.2' in complete darkness. Day & Night functionality combined with SSDR (Samsung Super Dynamic Range) allows this camera to capture clear, detailed images at all times of the day. H.264 compression technology allows you to save storage space while also minimizing the bandwidth requirement for operation. The multiple streaming feature allows simultaneous transmission of the recorded H.264 and MJPEG video streams. The camera also supports Hallway View and LDC (Lens Distortion Correction). - Captures images up to 720p (1280 x 1024) resolution
- Built-in 2.8 to 12mm varifocal lens
- Captures images in illumination levels as low as lux 0.04 @ F1.4 in color and 0 lux @ F1.4 in B&W
- 30 fps @ all resolutions (H.264)
- Supports H.264, MJPEG dual codec, and multiple streaming
- Motion detection, tampering
- microSD/SDHC memory slot 1
Please Note: Memory card not included. close - PoE (Power over Ethernet)
- IR viewable length up to 49.2'
- Hallway view support (Rotate 90˚/270˚)
- LDC support (Lens Distortion Correction)
In the Box Hanwha Techwin WiseNet Lite Series 1.3MP Full HD Network IR Dome Camera with 2.8 to 12mm Lens (Ivory) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Lite Series 1.3MP Full HD Network IR Dome Camera with 2.8 to 12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SND-L5083R Specs | | | Imaging Device | 1/3" 1.37M CMOS | | Total Pixels (H x V) | 1312 x 1069 | | Effective Pixels (H x V) | 1305 x 1049 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.04 lux (1/30 sec, F1.4), 0.001 lux (2 sec, F1.4)
B&W: 0 lux (IR LED on) | | | | Focal Length (Zoom Ratio) | 2.8 to 12 mm (4.3x) varifocal lens | | Maximum Aperture Ratio | F1.4 | | Angular Field of View | H: 88.2° (Wide) to 28.6° (Tele)
V: 69.4° (Wide) to 23.0° (Tele)
D: 117.3° (Wide) to 36.2° (Tele) | | Minimum Object Distance | 1.64' (0.50 m) | | Focus Control | Manual | | Lens Type | DC auto iris | | Mount Type | Board type | | | | Pan Range | 0 to 350° | | Tilt Range | 0 to 67° | | Rotate Range | 0 to 355° | | | | IR Range | 49.2' (15.0 m) | | Camera Title | Off / On (displayed up to 15 characters) | | Day & Night | True Day & Night | | Backlight Compensation | Off / BLC | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNR (Off / On) | | Motion Detection | Off / On (4ea rectangular zones) | | Privacy Masking | Off / On (6ea rectangular zones) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Lens Distortion Compensation | Off / On (5 levels with min / max) | | Electronic Shutter Speed | Minimum / Maximum / Anti-flicker | | Flip / Mirror | Flip / Mirror / Hallway view | | Intelligent Video Analytics | Motion detection with metadata, Tampering | | Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error | | Alarm Events | File upload via FTP and email, Local storage recording at event, Notification via email | | | | Ethernet | RJ-45 (10/100BASE-T) | | Video Compression Format | H.264 and MJPEG | | Resolution | 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240 | | Maximum Frame Rate | H.264: Maximum 30 fps at all resolutions
MJPEG: Maximum 1 fps at 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, maximum 15 fps at other resolution | | Video Quality Adjustment | H.264: Target bitrate level control
MJPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 3 profiles) | | Audio I/O | Built-in mic | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16 kb/s, 24 kb/s, 32 kb/s, 40 kb/s | | Audio Communication | Uni-directional audio | | IP Addresses | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 6 Users at unicast mode | | Storage | microSD/SDHC maximum 32G, NAS
Motion images recorded in the SD memory card can be downloaded
Manual recording at local PC | | Application Programming Interface | ONVIF Profile S, G, SUNAPI (HTTP API) | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish | | Web Viewer | Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 35), Google Chrome (Version 15 to 40), Apple Safari (Version 8.0.2 (Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only | | Central Management | Software: SmartViewer | | | | Operating Temperature / Humidity | 14 to 131°F (-10 to 55°C) | | Operating Humidity | Less than 90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | Less than 90% RH | | | | Input Voltage/Current | PoE (IEEE802.3af, Class2) | | Power Consumption | Maximum 5.4 W | | | | Material | Body: Plastic | | Dimensions (Ø x H) | 4.7 x 3.9" (11.9 x 9.9 cm) | | Weight | 0.64 lb (0.29 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 5.7 x 5.7 x 4.8" |
