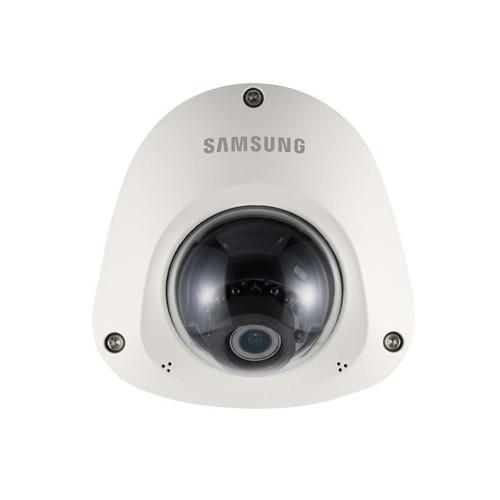

User Manual for Hanwha Techwin WiseNet Lite Series 2MP Vandal-Resistant Outdoor Network Camera with 3.6mm Fixed Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Lite Series 2MP
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet Lite Series 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The ivory WiseNet Lite Series 2MP Vandal-Resistant Outdoor Network Camera from Hanwha Techwin features a 1/2.9" progressive scan CMOS sensor and 3.6mm fixed lens. It features built-in adaptive LED illuminators that help create clear images in complete darkness. Day & Night functionality combined with SSDR (Samsung Super Dynamic Range) allows this camera to capture clear, detailed images at all times of the day. H.264 compression technology allows you to save storage space while also minimizing bandwidth requirements. This camera features unidirectional audio. The multiple streaming feature allows simultaneous transmission of recorded H.264 and MJPEG video streams. It also supports Hallway View and LDC (Lens Distortion Correction). This camera is IP66- and IK10-rated for use in extreme weather conditions where vandalism is a concern. - Maximum 2MP (1920 x 1080) resolution
- 0.15 lux at f/1.8 (color), 0 lux at f/1.8 (B&W: IR LED on)
- 30 fps at all resolutions (H.264)
- H.264, MJPEG dual codec, Multiple streaming
- Motion detection and tampering analytics
- PoE (Power over Ethernet)
- IR viewable length 49' (15 m)
- IP66-rated weather-resistant and IK10-rated vandal-resistant
- Hallway view support (Rotate 90˚/270˚)
- LDC support (Lens Distortion Correction)
In the Box Hanwha Techwin WiseNet Lite Series 2MP Vandal-Resistant Outdoor Network Camera with 3.6mm Fixed Lens & Night Vision RJ45 Waterproof Accessory 2 x Plastic Anchor Template Installation Bracket Mounting Hardware Limited 3-Year Warranty Brochure PDF 249.7kbbfrbfdsz Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Lite Series 2MP Vandal-Resistant Outdoor Network Camera with 3.6mm Fixed Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNV-L6013R Specs | | | Imaging Device | 1/2.9" 2.19 MP CMOS | | Total Pixels (H x V) | 2000 x 1121 | | Effective Pixels (H x V) | 1984 x 1105 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.15 lux (1/30 sec, f/1.8), 0.003 lux (2 sec, f/1.8)
B&W: 0 lux (IR LED on) | | | | Focal Length (Zoom Ratio) | 3.6mm fixed | | Maximum Aperture Ratio | f/1.8 | | Angular Field of View | H: 86.5°
V: 47.8°
D: 101.2° | | Minimum Object Distance | 1.64' (0.50 m) | | Lens Type | Fixed | | Mount Type | Board type | | | | Pan Range | -5 to 5° | | Tilt Range | 0 to 67° | | Rotate Range | 90° | | | | IR Range | 49' (15 m) | | Camera Title | Off / On (displayed up to 15 characters) | | Day & Night | True day & night | | Backlight Compensation | Off / BLC | | Contrast Enhancement | DWDR: SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNR (Off / On) | | Motion Detection | Off / On (4 rectangular zones) | | Privacy Masking | Off / On (6 rectangular zones) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Lens Distortion Correction | Off / On (5 levels with min / max) | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker | | Flip / Mirror | Flip / Mirror / Hallway view | | Intelligent Video Analytics | Motion detection with metadata, Tampering | | Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error | | Alarm Events | File upload via FTP and email, Local storage recording at event, Notification via email | | | | Ethernet | RJ45 (10/100BaseT) | | Video Compression Format | H.264 and MJPEG | | Resolution | 1980 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240 | | Maximum Frame Rate | H.264: Maximum 30 fps at all resolutions
MJPEG: Maximum 1 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768
Maximum 15 fps at other resolution | | Video Quality Adjustment | H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 3 profiles) | | Audio I/O | Line-in | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16 kb/s, 24 kb/s, 32 kb/s, 40 kb/s | | Audio Communication | Unidirectional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication,
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 6 Users at unicast mode | | Storage | microSD/SDHC maximum 32 GB, NAS
Motion images recorded in the SD memory card can be downloaded
Manual recording at local PC | | Application Programming Interface | ONVIF Profile S & G, SUNAPI (HTTP API) | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish | | Web Viewer | Supported OS: Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Supported Browser: Internet Explorer 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only | | Central Management | Software: SmartViewer | | | | Operating Temperature / Humidity | -22 to 131°F (-30 to 55°C)
Less than 90% RH
Startup should be done at above -4°F (-20°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | Less than 90% RH | | Ingress Protection | IP66 | | Vandal Resistance | IK10 | | Vibration Resistance | EN55011:2009+A1:2010, EN50581:2012, EN50121-3-2:2015, EN61000-4-2:2009, EN61000-4-3:2006+A2:2010, EN61000-4.4:2012, EN61000-4-5:2014, EN61000-4-6:2009, EN50155:2007, NEMA 4x | | | | Input Voltage/Current | PoE (IEEE 802.3af, Class2) | | Power Consumption | Maximum 5.8 W | | | | Material | Body: Metal | | Dimensions | 3.9 x 2 x 3.9" (99 x 52 x 100 mm) | | Weight | 0.66 lb (0.3 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 7.2 x 7.1 x 6.6" |
