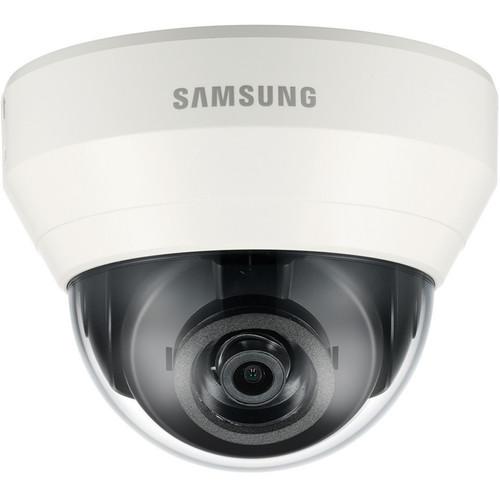

User Manual for Hanwha Techwin WiseNet Lite SND-L6012 2MP Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Lite SND-L6012 2MP
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet Lite SND-L6012 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The WiseNet Lite 2MP Network Dome Camera from Samsung has a 2MP 1/2.9" progressive-scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. Its 2.8mm fixed lens provides a wide 110° horizontal field of view to monitor large areas. An electronic cut filter and SSDR (Samsung Super Dynamic Range) helps this camera capture clear images in low-light scenes. Recording video is compressed using H.264 and M-JPEG codecs, ensuring high-quality recording and playback. The multiple streaming feature allows simultaneous transmission of the recorded H.264 and M-JPEG video streams. The camera also supports Hallway View and LDC (Lens Distortion Correction). - 2MP 1/2.9" progressive-scan CMOS sensor captures 1920 x 1080 resolution video at up to 30 fps
- 2.8mm fixed lens has a 110° horizontal field a view
- H.264 and M-JPEG compression codecs with triple streaming
- microSD slot for microSD card up to 32GB (available separately)
- Hallway view support (rotate 90/270°)
In the Box Hanwha Techwin WiseNet Lite SND-L6012 2MP Network Dome Camera Software CD Mounting Template Mounting Screws Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Lite SND-L6012 2MP Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SND-L6012 Specs | | | Image Sensor | 2.19 MP 1/2.9" progressive-scan CMOS sensor | | Total Pixels | 2000 x 1121 | | Effective Pixels | 1984 x 1105 | | Minimum Illumination | Color: 0.15 lux (1/30 sec, f/1.8), 0.003 lux (2 sec, f/1.8)
B&W: 0.15 lux (1/30 sec, f/1.8) | | | | Focal Length | 2.8mm fixed lens | | Aperture | f/1.8 | | Angular Field of View | Horizontal: 110°
Vertical: 61°
Diagonal: 125° | | Minimum Object Distance | 1.64' (0.50 m) | | Lens Type | Fixed | | Mount Type | Board-type | | | | Pan Range | 0 to 350° | | Tilt Range | 0 to 67° | | Rotate Range | 0 to 355° | | | | Camera Title | Off / On (displayed up to 15 characters) | | Day & Night | Electric day/night | | Backlight Compensation | Off / BLC | | Contrast Enhancement | DWDR: SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNR (Off / On) | | Motion Detection | Off / On (4 rectangular zones) | | Privacy Masking | Off / On (6 rectangular zones) | | Gain Control | Off / low / middle / high | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti-flicker | | Flip / Mirror | Flip / mirror / hallway view | | Intelligent Video Analytics | Motion detection with metadata, Tampering | | Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error | | Alarm Events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail | | | | Ethernet | RJ45 10/100Base-T Ethernet | | Video Compression Format | H.264 and M-JPEG | | Resolution | 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240 | | Maximum Frame Rate | H.264: Maximum 30 fps at all resolutions
M-JPEG: Maximum 1 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, maximum 15 fps at other resolution | | Video Quality Adjustment | H.264: Target bitrate level control
M-JPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR
M-JPEG: VBR | | Streaming Capability | Multiple streaming (up to 3 profiles) | | Audio I/O | Built-in microphone | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16, 24 , 32, 40 Kb/s | | Audio Communication | Uni-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 6 users at unicast mode | | Storage | microSD slot supports up to 32 GB microSD card (available separately), NAS
Motion images recorded in the SD memory card can be downloaded
Manual recording at local PC | | Application Programming Interface | ONVIF Profile S and G, SUNAPI (HTTP API) | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish | | Web Viewer | Supported OS : Windows XP, Vista, 7, 8, 8.1, Mac OS X 10.7 to 10.10
Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 35), Google Chrome (Version 15 to 40), Apple Safari (Version 8.0.2 (Mac OS X 10.10), 7.0.6(Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only | | Central Management | Software: SmartViewer | | | | Operating Temperature / Humidity | 14 to 131°F (-10 to 55°C) | | Operating Humidity (Relative) | < 90% | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Non-Operating Relative Humidity | < 90% RH | | | | Input Voltage/Current | PoE (IEEE802.3af, Class2) | | Maximum Power Consumption | 2.4 W | | | | Dimensions (Ø x H) | 4.3 x 3.4" (11 x 8.6 cm) | | Weight | 0.53 lb (0.24 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.7 x 5.7 x 4.7" |
