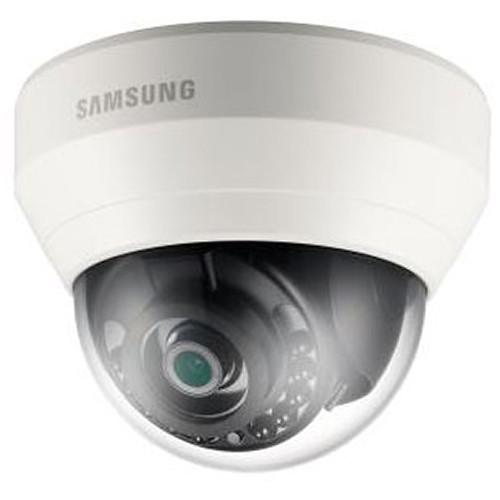

User Manual for Hanwha Techwin WiseNet Lite SND-L6013R 2MP Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Lite SND-L6013R 2MP
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet Lite SND-L6013R 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The WiseNet Lite SND-L6013R 2MP Network Dome Camera with Night Vision from Samsung captures 1080p video at up to 30 fps thanks to its 1/2.9" progressive scan CMOS sensor. It's 3.6mm fixed lens has a wide 101.2° diagonal field of view to capture large areas, depending on placement. A mechanical IR cut filter and IR LEDs allow this camera to produce clear images in complete darkness from up to 49' away. Video is compressed using H.264 and MJPEG codecs to ensure high-quality recording and playback. The camera uses PoE technology to simplify installation and is designed for indoor use. - 2MP 1/2.9" progressive scan CMOS sensor capture 1920 x 1080 resolution video at up to 30 fps
- 3.6mm fixed lens has a 101.2° diagonal field of view
- Mechanical IR cut filter and IR LEDs provide clear images in total darkness from up to 49' away
- H.264 and MJPEG dual-codec compression
- Motion and tamper detection
- microSD slot supports up to 32GB
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Lite SND-L6013R 2MP Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SND-L6013R Specs | | | Imaging Device | 2.19 MP 1/2.9" progressive scan CMOS sensor | | Total Pixels | 2000 x 1121 | | Effective Pixels | 1984 x 1105 | | Minimum Illumination | Color: 0.15 lux (1/30 s, f/1.8), 0.003 lux (2 s, f/1.8)
B&W: 0 lux (IR LED on) | | | | Lens | 3.6mm fixed | | Maximum Aperture Ratio | f/1.8 | | Angular Field of View | Horizontal: 86.5°
Vertical: 47.8°
Diagonal: 101.2° | | Minimum Object Distance | 1.64' (0.5 m) | | Mount Type | Board type | | | | Pan Range | 0 to 350° | | Tilt Range | 0 to 67° | | Rotate Range | 0 to 355° | | | | IR Range | 49' (15 m) | | Camera Title | Off / On (displayed up to 15 characters) | | Day & Night | Mechanical IR cut filter | | Backlight Compensation | Off / BLC | | Contrast Enhancement | DWDR: SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNR (Off / On) | | Motion Detection | Off / On (4 x rectangular zones) | | Privacy Masking | Off / On (6 x rectangular zones) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Minimum / Maximum / Anti-flicker | | Flip / Mirror | Flip / Mirror / Hallway view | | Intelligent Video Analytics | Motion detection with metadata, tampering | | Alarm Triggers | Motion detection, tampering detection, SD card error, NAS error | | Alarm Events | File upload via FTP and email, local storage recording at event, notification via email | | | | Ethernet | RJ45 10/100Base-T | | Video Compression Format | H.264 and MJPEG | | Resolution | 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240 | | Maximum Frame Rate | H.264: Maximum 30 fps at all resolutions
MJPEG: Maximum 1 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, maximum 15 fps at other resolution | | Video Quality Adjustment | H.264: Target bitrate level control
MJPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 3 profiles) | | Audio I/O | Built-in microphone | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16, 24, 32, 40 kb/s | | Audio Communication | Uni-directional audio | | IP Rating | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 6 x users at unicast mode | | Storage | microSD slot supports up to 32 GB, NAS
Motion images recorded to a microSD memory card (available separately) can be downloaded
Manual recording to a local PC | | Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API) | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish | | Web Viewer | Supported OS: Windows XP, Vista, 7, 8, 8.1, Mac OS X 10.7-10.10
Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 35), Google Chrome (Version 15 to 40), Apple Safari (Version 8.0.2 (Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only | | Central Management | Software: SmartViewer | | | | Operating Temperature / Humidity | 14 to 131°F (-10 to 55°C)
Less than 90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | Less than 90% RH | | | | Input Voltage/Current | PoE (IEEE802.3af, Class2) | | Power Consumption | Maximum 5.9 W | | | | Material | Body: Plastic | | Dimensions | 4.3 x 3.4" (110 x 86 mm) | | Weight | 0.54 lb (0.25 kg) | | | | Package Weight | 2.025 lb | | Box Dimensions (LxWxH) | 9.25 x 6.35 x 5.75" |
