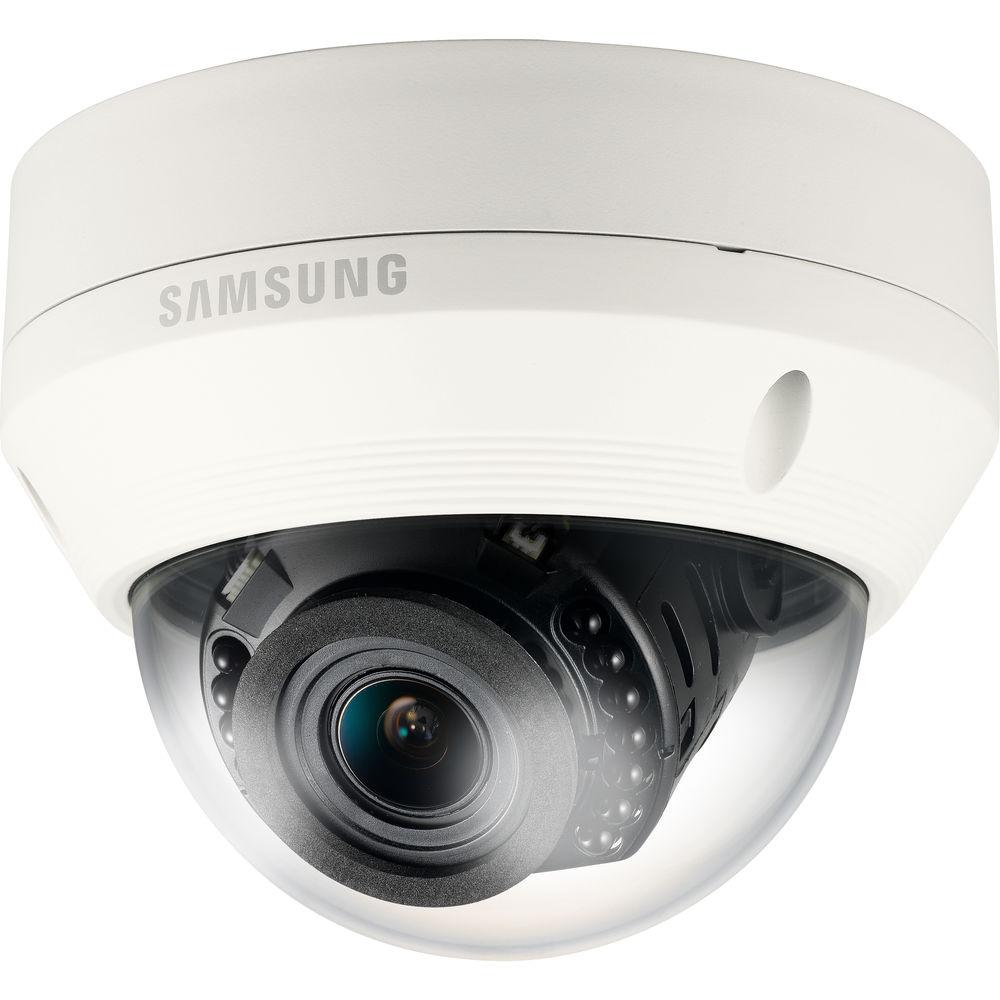

User Manual for Hanwha Techwin WiseNet Lite SNV-L5083R 1.3MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Lite SNV-L5083R 1.3MP
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
 |
User manual for the Hanwha Techwin WiseNet Lite SNV-L5083R 1.3MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|

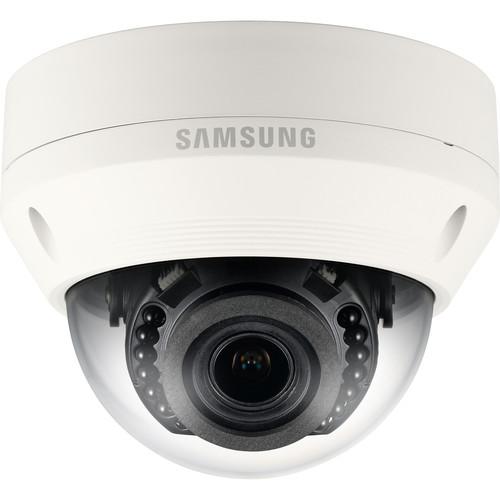

Product description The ivory WiseNet Lite SNV-L5083R 1.3MP Outdoor Network Dome Camera from Hanwha Techwin uses a 1/3" progressive scan CMOS sensor to capture 1280 x 1024 resolution video at 30 fps. IR LEDs provide up to 65' of night vision. The 2.8-12mm varifocal lens delivers an 88.2 to 28.6° horizontal field of view. This camera is equipped with an audio line input. An onboard memory card slot accepts microSD/SDHC cards up to 32GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism. - IR cut filter for day and night functionality
- H.264 and MJPEG video compressions
- Unicast and multicast streaming
- Up to six users in unicast mode
- Camera pivots from 0 to 350° horizontally and from 0 to 67° vertically
- Lens distortion correction
- 1.64' minimum object distance
- Digital wide dynamic range
- Digital noise reduction (SSNR)
- White balance modes include ATW, AWC, manual, indoor, and outdoor
- Motion detection for up to four rectangular zones
- Privacy masking for up to six rectangular zones
- Flip, mirror, and hallway view support (90 and 270° rotation)
- Intelligent video analytics include motion detection with metadata and tampering
- Alarm triggers include motion detection, tampering detection, microSD card error, and NAS error
- Alarm events include file upload via FTP and email, local storage recording at event, and notification via email
- Compatible with Windows XP, Vista, 7, 8 & 8.1, Mac OS X 10.7 to 10.10, Internet Explorer 8 to 11, Firefox 9 to 35, Chrome 15 to 40, Safari 8.0.2 (Mac OS X 10.10), Safari 7.0.6 (Mac OS X 10.9), Safari 6.0.2 (Mac OS X 10.8 & 10.7 only), Safari 5.1.7 (Mac OS X only), and SmartViewer
- Camera title settings displayed in up to fifteen characters
- FCC, cUL, and CE certified
In the Box Hanwha Techwin WiseNet Lite SNV-L5083R 1.3MP Outdoor Network Dome Camera with Night Vision Template 3 x Tapping Screws L Wrench Card-Type Moisture Absorbent Audio Cable Cable Bush 3 x Machine Screws Brochure PDF 258.6kbcvzqbybecsrqueedrxrcbedeyffsdxdcue Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Lite SNV-L5083R 1.3MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SNV-L5083R Specs | | | Sensor | 1.37 MP 1/3" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 88.2 to 28.6°
Vertical: 69.4 to 23°
Diagonal: 117.3 to 36.2° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.001 Lux
B&W: 0 Lux | | Camera Angle Adjustment | Horizontal: 0 to 350°
Vertical: 0 to 67° | | | | Streaming Resolution | 1280 x 1024 at 30 fps (H.264) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Single | | Audio Formats | G.711, G.726 | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, SUNAPI (HTTP API) | | Analytics | Motion Detection with Metadata
Tampering | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows XP, Vista, 7, 8, 8.1 | | Mac OS Support | OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7 | | | | Recording Media | microSD (Up to 32 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Range | 65.62' / 20 m | | Video Management Software | SmartViewer | | Supported Languages | Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Serbian
Simplified Chinese
Spanish
Swedish
Turkish | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 5.8 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 131°F / -30 to 55°C Startup Temperature: Above -4°F / -20°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
