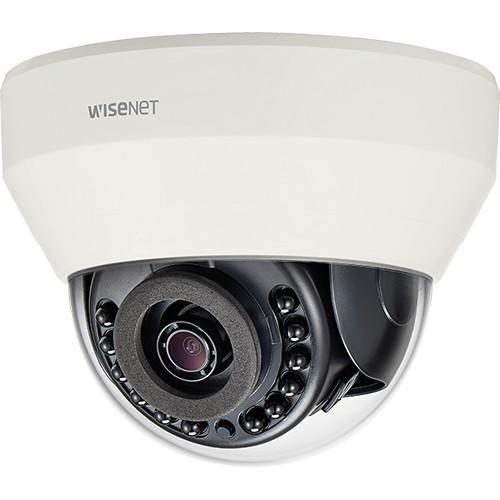

User Manual for Hanwha Techwin WiseNet LND-6021R 2MP Network Dome Camera with Night Vision and 4mm Lens Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet LND-6021R 2MP Network
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet LND-6021R 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Keep your premises monitored day and night with the ivory WiseNet LND-6021R 2MP Network Dome Camera with Night Vision from Hanwha Techwin. Equipped with a 1/2.9" 2.19MP CMOS sensor and a 4mm lens, the LND-6021R captures video at resolutions of up to 1920 x 1080 at 30 fps in a 80 x 43° field of view. The camera has an automatic IR cut filter and IR LEDs for night vision with an effective range of up to 66'. Image enhancement features such as wide dynamic range and automatic white balance allow you to capture images in varying lighting conditions.
Designed for easy setup, the LND-6021R uses PoE technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices. - Up to 2MP (1920 x 1080) resolution
- Up to 30 fps at all supported resolutions (H.264)
- H.264 and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression based on movement in the image
- IR cut filter for day and night vision
- 120 dB wide dynamic range
- Tamper and motion detection
- microSD/SDHC memory slot for edge storage supports up to 32GB (microSD/SDHC cards available separately)
- PoE technology for easy, clutter-free installation
- Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
In the Box Hanwha Techwin WiseNet LND-6021R 2MP Network Dome Camera with Night Vision and 4mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet LND-6021R 2MP Network Dome Camera with Night Vision and 4mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin LND-6021R Specs | | | Sensor | 2.19 MP 1/2.9" CMOS | | Focal Length | 4mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 80°
Vertical: 43° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.18 Lux
B&W: 0 Lux | | Camera Angle Adjustment | Horizontal: 0 to 350°
Vertical: 0 to 67° | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | SUNAPI (HTTP API) | | Analytics | Tamper and Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8.1, 10 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 | | | | Recording Media | microSD (Up to 32 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Range | 65.62' / 20.00 m | | Video Management Software | SmartViewer, SSM | | Supported Languages | Croatian
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Serbian
Spanish
Swedish
Traditional Chinese
Turkish | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | PoE 802.3af (15 W) | | Power Consumption | PoE: 6.5 W | | Material of Construction | Plastic | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 89% | | Dimensions |
