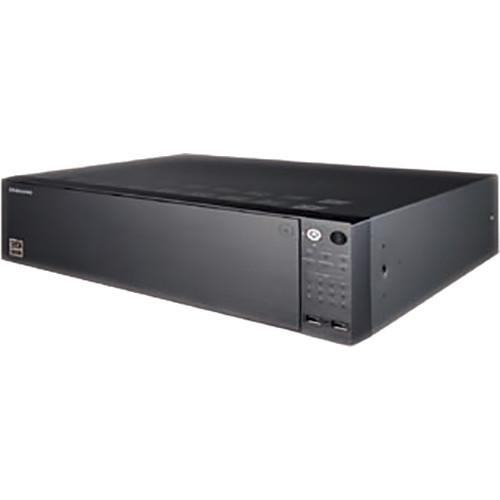

User Manual for Hanwha Techwin WiseNet P PRN-4011 64-Channel 12MP NVR with 24TB HDD Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet P PRN-4011 64-Channel
- Product category: Network Video Recorders (NVRs) Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Network Video Recorders (NVRs)
|
User manual for the Hanwha Techwin WiseNet P PRN-4011 64-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Stream and record up to 64 video channels with the WiseNet P PRN-4011 64-Channel 12MP NVR from Hanwha Techwin, at resolutions of up to 12MP. Featuring 12 drive bays supporting up to 12TB each, the recorder has a maximum internal storage capacity of 96TB (24TB preinstalled). It supports RAID 5 and 6 configurations. External storage options include PCs via internet connection, network servers, USB storage devices, and iSCSI storage devices. WiseStream H.265/H.264 and MJPEG compression are supported, enabling you to choose the format that works best for your application.
The NVR enables simultaneous live viewing of up to 64 channels and simultaneous playback of up to 16 channels at resolutions up to 12MP via its HDMI and VGA ports. Up to 64 channels can be simultaneously recorded at full frame rate in 12MP resolution with an incoming bandwidth of up to 400 Mb/s. The NVR supports two-way audio communication, and is equipped with an RS-232 serial data port for connection to a UPS (available separately). Internet connectivity enables remote monitoring via PCs as well as from Android and iOS devices. - HDMI and VGA video output
- Supports ARB (Auto Recovery Backup) & Failover (N+1)
In the Box Hanwha Techwin WiseNet P PRN-4011 64-Channel 12MP NVR with 24TB HDD Mouse Power Cord Terminal Block Rack Mount and Screws HDD Fixing Screws HDD Door Lock Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet P PRN-4011 64-Channel 12MP NVR with 24TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin PRN-4011 Specs | | | Camera | Inputs: 64 Channels
Resolution: CIF to 12 MP | | Communication Protocol | Samsung, ONVIF | | Local Display | 1 x HDMI, 1 x VGA Dual Monitor | | Multi-Screen Display | Local Monitor: 1/2V/3V/4/9/16/25/36/64/Sequence
Web: 1/4/9/16/25/36/64/Sequence | | Performance | Local Monitor: 12 MP at 30 fps; 8.3 MP at 120 fps; 1080p at 480 fps; 720p at 960 fps; D1 at 1920 fps | | | | Operating System | Embedded Linux | | Recording Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) | | Bandwidth | Recording: 400 Mb/s Max. (RAID 5/6)
Transmission: 400 Mb/s Max. | | Recording Resolution | CIF to 12 MP | | Recording Mode | Normal, Schedule (Continuous/Event), Event (Pre/Post) | | Event Trigger | Alarm Input; Video Loss; Camera Event (Sensor, Motion Detection, Video Analytics, Defocus) | | Event Action | Email, PTZ Preset, Alarm Out, Buzzer, Monitor Out | | Playback | Bandwidth: 32 Mb/s Max., 16 Channels Simultaneously | | User Limit | 4 (1 Local, 3 Remote) | | Search & Playback | Mode: Date & Time (Calendar); Event Log List; Text Search; Smart Search
Resolution: CIF to 12 MP
Fisheye Dewarping: Processed on Web/CMS | | Playback Control | Fast/Slow, Forward/Backward, Move One Step Up/Down | | Storage | Internal: 12 x SATA Ports, 24 TB Preinstalled
External: iSCSI, Maximum 192 TB; Promise VessRaid R2600
RAID: RAID-5/6 (Array Size: 2 x 6 HDD Array) | | Built-in Backup Functions | Multi-Channel Play (16 Channels Max.)
Date-Time/Title Display | | Video File Backup | GUI: BU, EXE
Network: JPEG, AVI | | Sensor | 4 x Inputs
4 x Outputs
NO/NC Selectable | | Audio | 64-Channel Input, Network
1 x RCA Output | | Audio Compression | G.711, G.726, AAC (16/48 kHz) | | Audio Communication | 2-Way | | | | Interface | 4 x RJ45 Ethernet (LAN/WAN, 1 Gb/s)
2 x SFP | | Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client) | | DDNS | Hanwha DDNS | | Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | IP | IPv4/IPv6 | | Security | IP Address Filtering, User Access Log, 802.1x Authentication, Encryption, 2Men-Rule | | Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | | OS Supported | Windows 7, 8, 10
Mac OS X (10.8 or Above) | | Supported Web Browsers | Microsoft Internet Explorer, Google Chrome, Mozilla Firefox, Mac Safari | | Viewer | Software Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
CMS Support: SDK/CGI (SUNAPI) for Integration to 3rd Party VMS | | | | Camera Setup | Register: Auto Mode, Manual Mode
Setup Items: IP Address; Add Profile Edit; Bit Rate; Compression; GOP; Quality; Camera MD Setup; Camera Video Setup (Simple Focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS); Fisheye Dewarping; Hallway View Setup; Camera Webpage | | PTZ Control | Via GUI, Webviewer, SPC-2000
255 Presets | | Smart Phone | Model Support: Android, iPhone
Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
Live 16-Channel Control: Multi-Profile Support, Playback (1 Channel)
Maximum Remote Users: Search - 3; Live Unicast - 10 | | Redundancy | Failover: N+1
ARB: Yes | | System Control | Mouse, Web, Controller (SPC-2000) | | | | Indicator LEDs | 12 x HDD Action
1 x RAID Status
1 x Alarm
1 x Power
1 x Record
1 x Backup
1 x Network | | Connectors | 2 x USB (Front)
1 x HDMI
1 x VGA
4 x LAN/WAN 1 Gb/s Ethernet
2 x 1000M SFP
1 x RCA, Audio Output
1 x RS-232C Serial, for UPS
4 x Alarm, Inputs
4 x Alarm, Outputs
1 x Alarm Reset
2 x Power Terminals | | | | System Log | Log List: 20,000 Max. (for Each System Log & Event Log) | | | | Power | 100-240 VAC ±10%
50/60 Hz
3.0/1.5 A (Dual SMPS) | | Power Consumption | 250 W, Maximum (853 BTU with 12 x HDDs) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Relative Humidity | 20-85% | | Rack Unit Space | 3 RU | | Dimensions | 17.72 x 17.17 x 5.2" / 45 x 43.6 x 13.2 cm | | Weight | 24.3 lb / 11 kg Approx., without HDDs |
