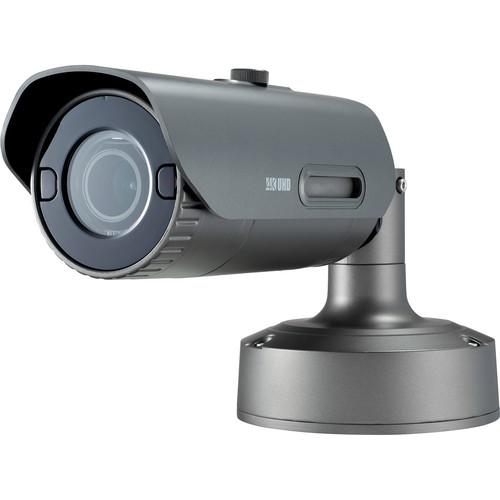

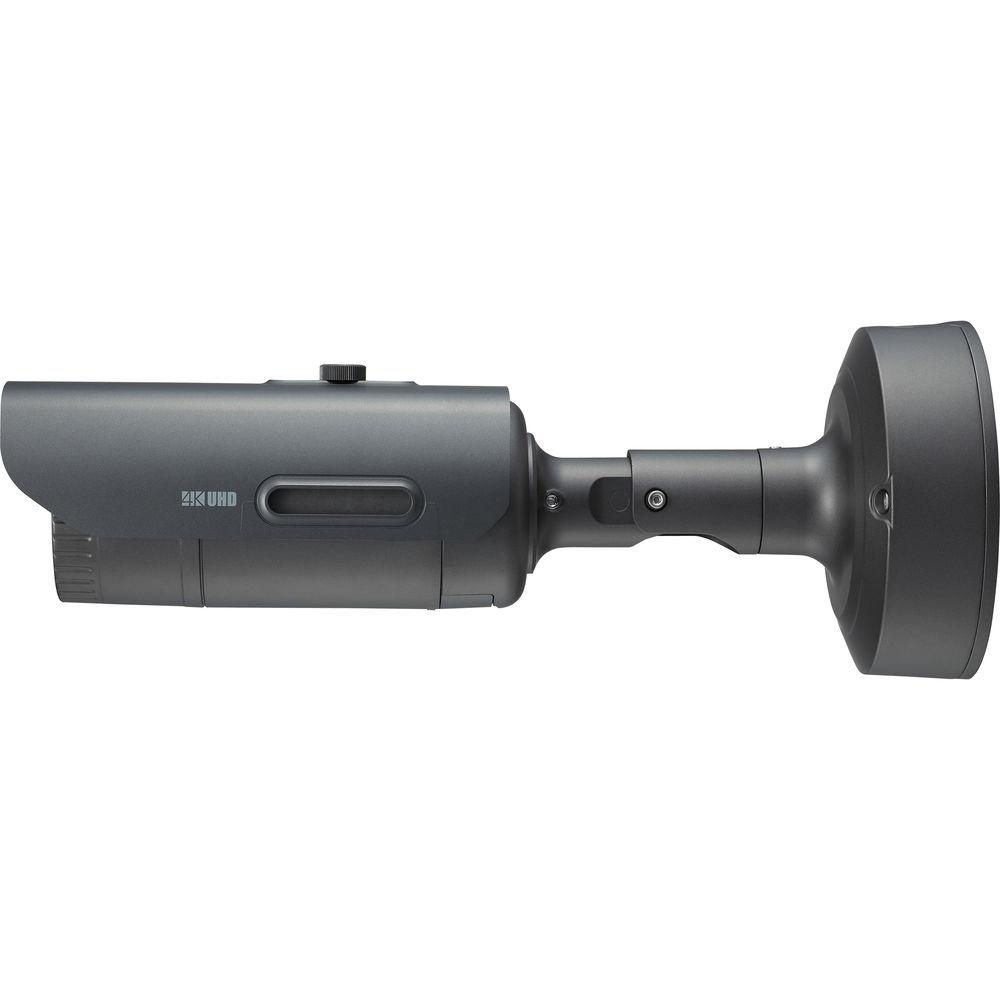

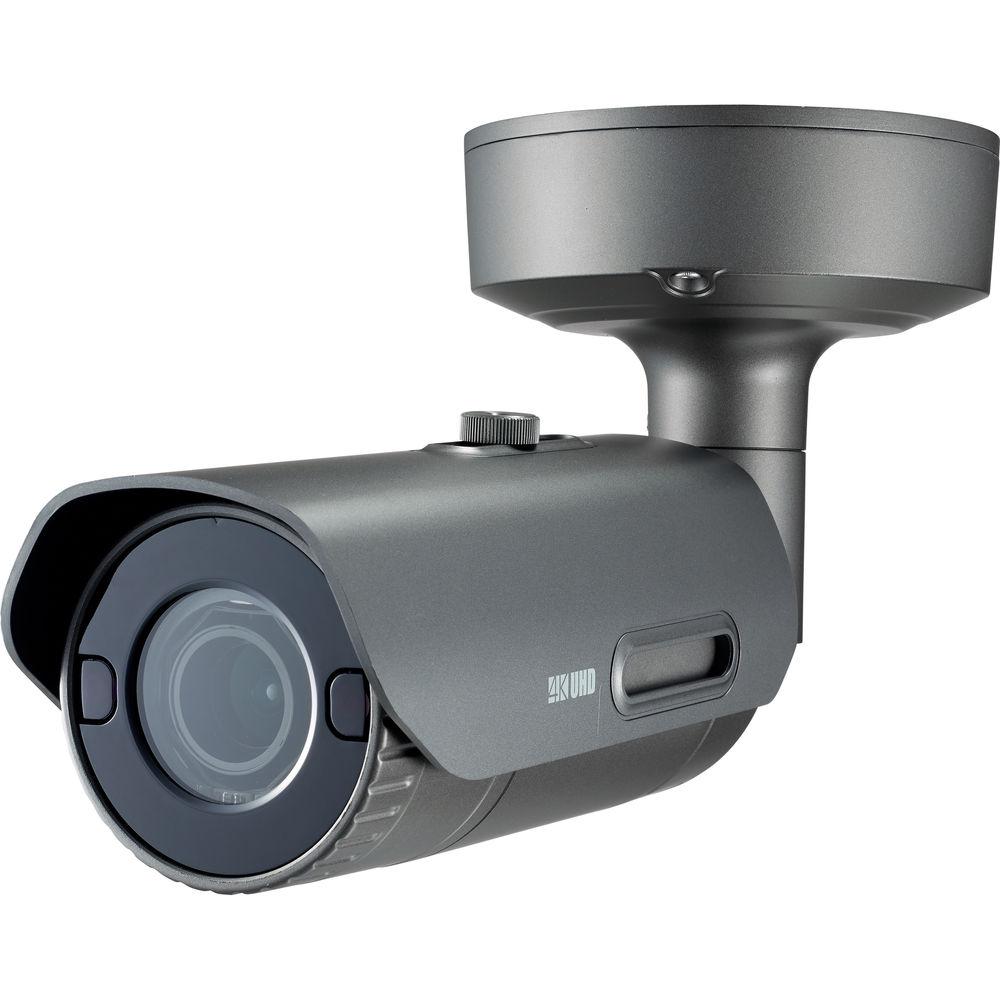

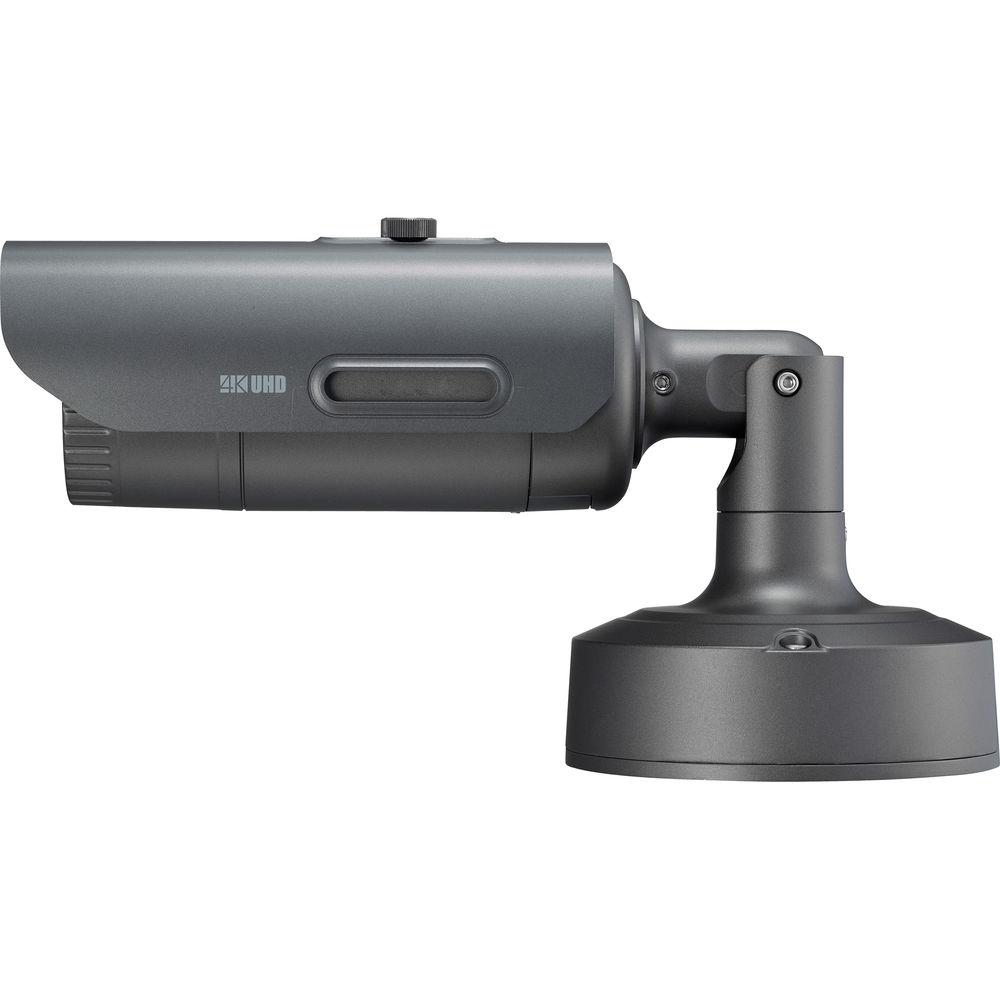

Product description The dark gray WiseNet P Series 12MP Outdoor Network Bullet Camera from Samsung features a 1/1.7" CMOS sensor and 4.5-10mm motorized varifocal lens. It can capture videos at 4168 x 3062 resolution and supports 2.2x zoom. The camera offers a WDR of up to 120 dB for capturing images under varied lighting conditions. It comes with a built-in microSD/SDHC/SDXC card slot (up to 128GB, available separately) for on-board storage. With an IK10-rated vandal-resistant and IP66 weatherproof housing, this camera is suitable for outdoor applications. -
- Records at 20 fps at 12MP and 30 fps at 8MP
- H.265, H.264, MJPEG compression formats
- Day & night (ICR) function for capturing images under low-light conditions
- Simple focus, P-Iris
- Supports motion detection, defocus detection, and tampering
- microSD/SDHC/SDXC memory slot (card not included), NAS, local PC support
- Hallway view (Rotate 90° / 270°)
- WiseStream support, digital auto tracking
- Bi-directional audio support
In the Box Hanwha Techwin WiseNet P Series 12MP Outdoor Network Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet P Series 12MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin PNO-9080R Specs | | | Imaging Device | 1/1.7" 12.4 MP CMOS | | Total Pixels (H x V) | 4,168 x 3,062 | | Effective Pixels (H x V) | 4,072 x 3,046 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.3 lux (1/30 sec, f/1.6, 30 IRE), 0.01 lux (2 sec, f/1.6, 30 IRE)
B&W: 0 lux (IR LED on) | | S / N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p / 75 Ohms composite, 714 x 480, 702 x 576, for installation
DIP connector type | | | | Focal Length | 4.5-10mm motorized varifocal | | Zoom Ratio | 2.2x | | Maximum Aperture Ratio | f/1.6 | | Angular Field of View | Horizontal:
4,096 x 2,160
Wide to Tele: 100.3-45.6°
3,840 x 2,160:
Wide to Tele: 92.3-42.6°
Vertical:
4,096 x 2,160
Wide to Tele: 49.7-24°
3,840 x 2,160:
Wide to Tele: 49.7-24° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (Motorized V/F) / manual, remote control via network (Manual, simple focus) | | Mount Type | Board-in type | | Lens Type | P-Iris mode | | | | IR Range | 131.23' (30 m) | | Camera Title | Supported Characters: English / Numeric / Special characters
Common Features: Multi-line (Maximum 5), Color (Gray / Green / Red / Blue / Black / White), transparency, auto scale by resolution | | Day and Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Off / On) | | Digital Noise Reduction | SSNR (2D+3D noise filter) (Off / On) | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (8 x Polygonal) | | Privacy Masking | Off / On (16 x Polygonal)
Color: Gray / Green / Red / Blue / Black / White | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor (including mercury & sodium) | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 to 1/12,000 sec) | | Flip / Mirror | Off / On, Hallway: 90° / 270° | | Intelligent Video Analytics | Tampering (Scene change), virtual line, enter / exit, (Dis)appear, audio detection, defocus detection, digital auto tracking - with metadata | | Alarm I/O | 1 x input
1 x output | | Alarm Triggers | Alarm input, motion detection, video analytics, audio detection, network disconnect | | Alarm Events | File upload via FTP and email, notification via email
Local storage (microSD/SDHC/SDXC available separately) or NAS recording at event triggers, external output | | Pixel Counter | Support (plug-in viewer only) | | | | Ethernet | RJ45 (10/100/1000Base-T) | | Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG | | Resolution | 8 MP Mode: 4096 x 2160, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
12 MP Mode: 4000 x 3000, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Maximum Frame Rate | H.265 / H.264: 20 fps at 4000 x 3000, 30 fps at 4096 x 2160
MJPEG: 2 fps at 4000 x 3000 to 2592 x 1464, 15 fps at 1920 x 1080 to 320 x 240 | | Smart Codec | 5 x manual mode (area-based) | | Video Quality Adjustment | H.265 / H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.265 / H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 3 profiles) | | Audio In | Selectable (Mic in / Line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm mono jack)
Max Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps
AAC-LC: 48 kbps at 16 kHz | | Audio Communication | Bi-directional audio (2-way) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast / Multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | microSD/SDHC/SDXC (128 GB) - Motion images recorded in the microSD/SDHC/SDXC memory card can be downloaded, camera can detect automatically when the memory is connected, memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), local PC for instant recording (Plug-in viewer only) | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet open platform | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in free Web viewer
Supported Browser: Google Chrome 47, MS Edge 20
Plug-in Web viewer
Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | CMS | SmartViewer | | | | Operating Conditions | Temperature: -40°F to 131°F) / (-30 to 55°C)
Humidity: Less than 90% RH
Start-up should be done at above -31°F (5°C) | | Storage Conditions | Temperature: -40 to 140°F (-40 to 60°C)
Humidity: Less than 90% RH | | Rating | IP66 / IK10 | | | | Input Voltage | 24 VAC, 12V DC, PoE (IEEE802.3af, Class3) | | Power Consumption | With Heater On:
12 VDC: Maximum 11.55 W
PoE: Maximum 12.95 W
24 VAC (50/60 Hz): 14.08 W
With Heater Off:
12 VDC: Maximum 10.45 W
PoE: Maximum 11.77 W
24 VAC (50/60 Hz): 12.43 W | | | | Material | Aluminum | | Dimensions | 3.24 x 3.43 x 13.71" (82.4 x 87 x 348.3 mm) without sunshield | | Weight | 3.09 lb (1.4 kg) | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 18.8 x 7.2 x 6.7" |
