User Manual for Hanwha Techwin WiseNet P Series 4K Network IR Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet P Series 4K
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
 |
User manual for the Hanwha Techwin WiseNet P Series 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|

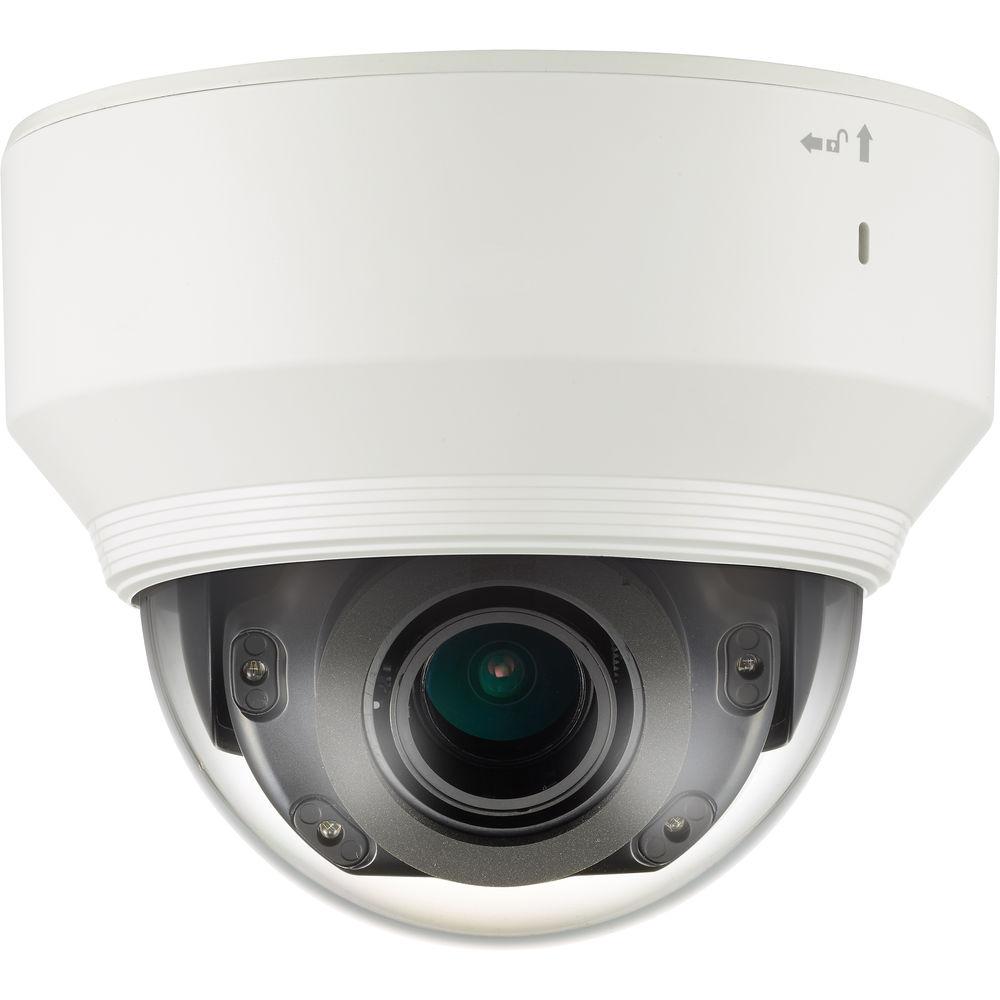

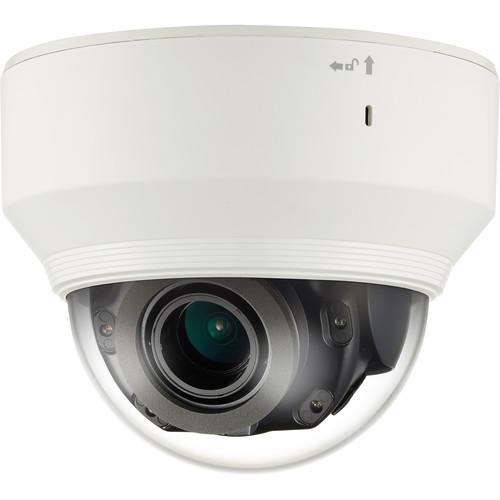

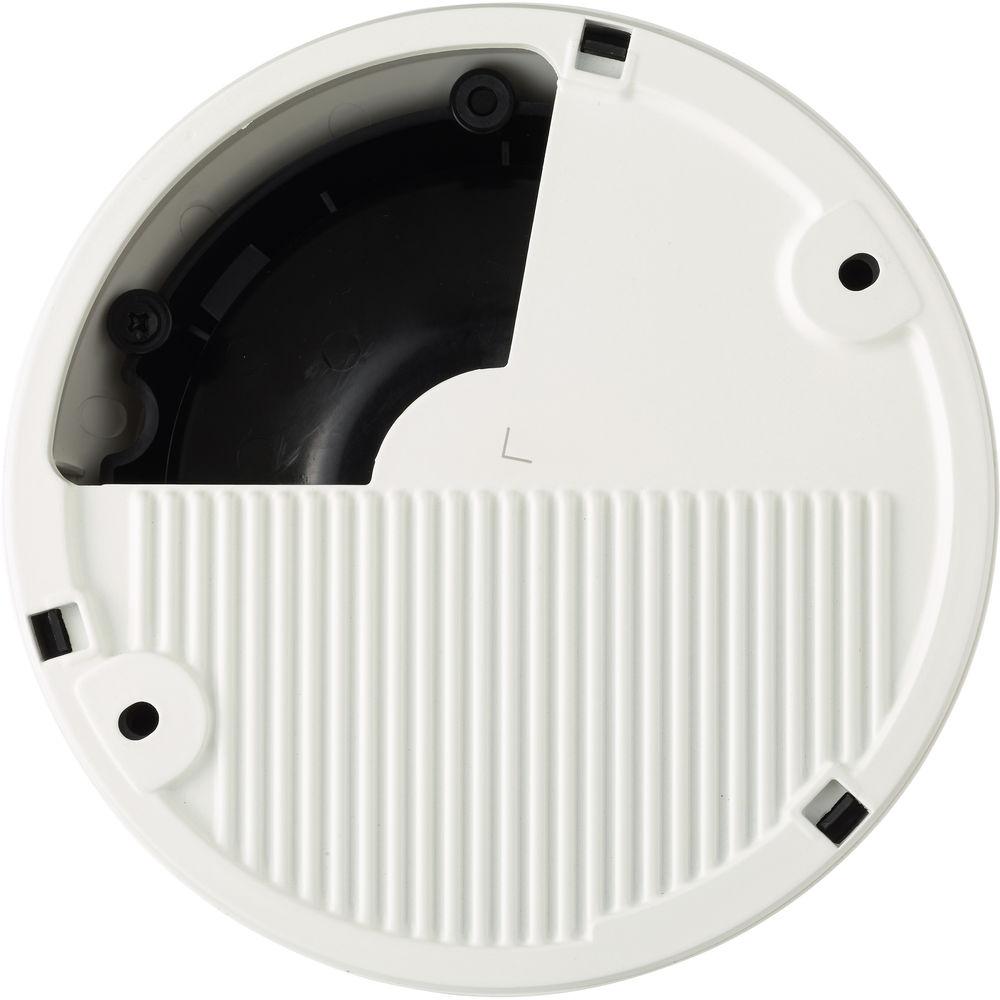

Product description The ivory WiseNet P Series 4K IR Dome Camera from Samsung features 1/1.7" CMOS sensor and 4.5-10mm motorized varifocal lens. It can capture videos in 4K resolution and supports 2.2x zoom. The camera offers WDR of up to 120 dB for capturing images under varied lighting conditions. It comes with a built-in microSD/SDHC/SDXC card slot (up to 128GB) for on-board storage. -
- Records 20 fps at 12MP (4000 x 3000) and 30 fps at DCI 4K (4096 x 2160)
- H.265, H.264, MJPEG compression formats
- IR LEDs for night vision recording with a 98' range
- Day & night (ICR) function for capturing images under low light conditions
- Simple focus, P-Iris
- Supports motion detection, defocus detection, and tampering
- SD/SDHC/SDXC memory slot (card not included), NAS, local PC support
- Hallway view (Rotate 90 / 270°)
- WiseStream support, digital auto tracking
- Bi-directional audio support
In the Box Hanwha Techwin WiseNet P Series 4K Network IR Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet P Series 4K Network IR Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin PND-9080R Specs | | | Imaging Device | 1/1.7" 12.4 MP CMOS | | Total Pixels (H x V) | 4,168 x 3,062 | | Effective Pixels (H x V) | 4,072 x 3,046 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.3 lux (1/30 sec, f/1.6, 30 IRE)
0.01 lux (2 sec, f/ 1.6, 30 IRE)
B&W: 0 lux (IR LED On) | | S / N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p / 75 Ohms composite, 714 x 480, 702 x 576, for installation
DIP connector type | | | | Focal Length | 4.5-10mm motorized varifocal | | Zoom Ratio | 2.2x | | Maximum Aperture Ratio | f/1.6 | | Angular Field of View | Horizontal:
At 4,096 x 2,160
Wide to Tele: 100.3-45.6°
At 3,840 x 2,160:
Wide to Tele: 92.3-42.6°
Vertical:
At 4,096 x 2,160
Wide to Tele: 49.7-24°
At 3,840 x 2,160:
Wide to Tele: 49.7-24° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (Motorized V/F) / manual, remote control via network (Manual, simple focus) | | Mount Type | Board-in type | | Lens Type | P-Iris mode | | Pan | 0 to 354° | | Tilt | 0 to 67° | | Rotate | 0 to 355° | | | | IR Range | 98.43' (30 m) | | Camera Title | Supported Characters: English / Numeric / Special characters
Common Features: Multi-line (Maximum 5), Color (Gray / Green / Red / Blue / Black / White), transparency, auto scale by resolution | | Day and Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Off / On) | | Digital Noise Reduction | SSNR (2D+3D noise filter) (Off / On) | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (8 x polygonal) | | Privacy Masking | Off / On (16 x polygonal)
Color: Gray / Green / Red / Blue / Black / White | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor (Include mercury & sodium) | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 to 1/12,000 sec) | | Flip / Mirror | Off / On, Hallway: 90° / 270° | | Intelligent Video Analytics | Tampering (Scene change), virtual line, enter / exit, (Dis)appear, audio detection, defocus detection, digital auto tracking - with metadata | | Alarm I/O | 1 x Input
1 x Output | | Alarm Triggers | Alarm input, motion detection, video analytics, audio detection, network disconnect | | Alarm Events | File upload via FTP and email, notification via email
Local storage (microSD/SDHC/SDXC) or NAS recording at event triggers, external output | | Pixel Counter | Support (plug-in viewer only) | | | | Ethernet | RJ45 (10/100/1000Base-T) | | Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG | | Resolution | At 8 MP Mode: 4096 x 2160, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
At 12 MP Mode: 4000 x 3000, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Maximum Frame Rate | H.265 / H.264: 20 fps at 4000 x 3000, 30 fps at 4096 x 2160
MJPEG: 2 fps at 4000 x 3000 to 2592 x 1464, 15 fps at 1920 x 1080 to 320 x 240 | | Smart Codec | 5 x Manual mode (area-based) | | Video Quality Adjustment | H.265 / H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.265 / H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 3 profiles) | | Audio In | Selectable (Mic in / Line in / Built-in mic)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm mono jack)
Max Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps
AAC-LC: 48 kbps at 16 kHz | | Audio Communication | Bi-directional audio (2-way) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast / multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | microSD/SDHC/SDXC (128 GB) - Motion images recorded in the microSD/SDHC/SDXC memory card can be downloaded, camera can detect automatically when the memory is connected, memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), local PC for instant recording (Plug-in viewer only) | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet open platform | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in free Webviewer
Supported Browser: Google Chrome 47, MS Edge 20
Plug-in Web viewer
Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | CMS | SmartViewer | | | | Operating Conditions | Temperature: -22 to 131°F (-30 to 55°C)
Humidity: Less than 90% RH
Start-up should be done at above 14°F (-10°C) | | Storage Conditions | Temperature: -40 to 140°F (-40 to 60°C)
Humidity: Less than 90% RH | | Vandal Resistance | IK08 | | | | Input Voltage | 12 VDC, PoE (IEEE 802.3af, Class3) | | Power Consumption | 12 VDC: Maximum 9.5 W
PoE: Maximum 10.5 W | | | | Dimensions | 5.54" x 4.45" (140.8 x 113 mm) | | Weight | 1.34 lb (0.61 kg) |
