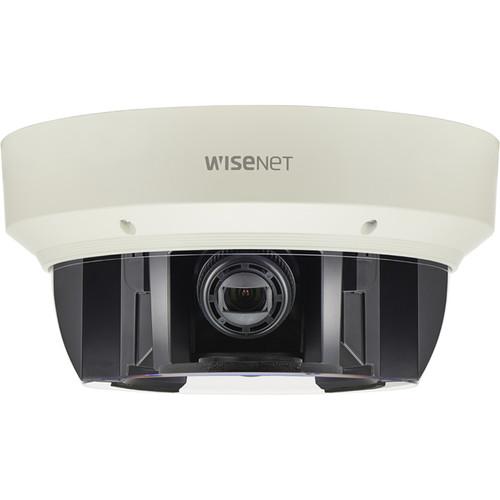

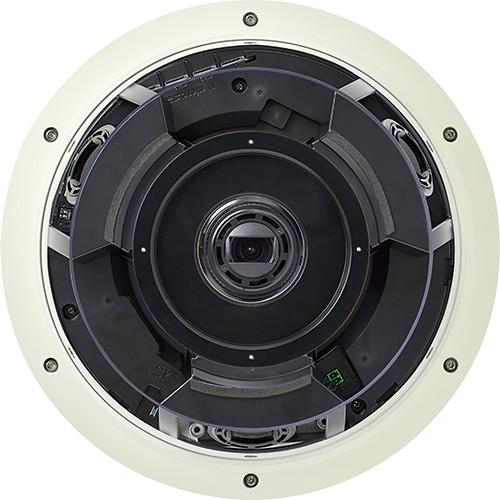

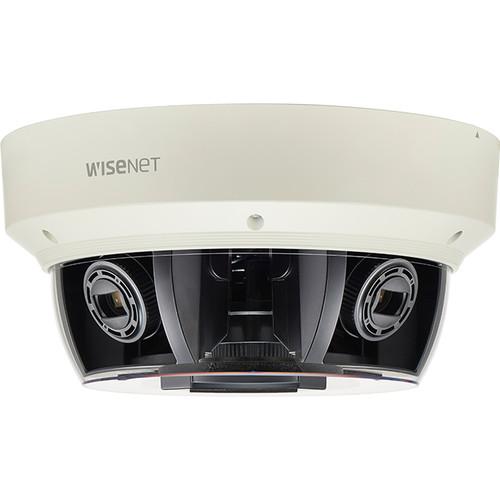

Product description The ivory WiseNet P Series 8MP Outdoor Multi-Sensor Panoramic Network Dome Camera from Hanwha Techwin comes with four 2.38MP sensors, each with a 1920 x 1080 resolution, for a total resolution of 8MP. Each sensor features a 2.8-12mm motorized varifocal lenses. The camera supports H.265, H.264, and MJPEG compression formats with support for simultaneous multi streaming, ensuring smooth recording and playback while optimizing network bandwidth use. The SD slot supports up to 128GB cards (available separately) for local storage. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk areas. - Four 1/2.8" progressive scan CMOS image sensors
- Each sensor captures 1920 x 1080 resolution video at up to 60 fps
- Four 2.8-12mm motorized varifocal lenses
- Digital image stabilization with built-in gyro sensor
- H.265, H.264, and MJPEG codec support
- Day and night functionality with ICR
- Wide dynamic range of 150 dB
- Motion detection, tampering detection, and advanced video analytics
- SD/SDHC/SDXC card slot for local storage (card available separately)
- IP66- and IK10-rated enclosure
In the Box Hanwha Techwin WiseNet P Series 8MP Outdoor Multi-Sensor Panoramic Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet P Series 8MP Outdoor Multi-Sensor Panoramic Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet P Series Specs | | | Image Sensor | 4 x 1/2.8" 2.38 MP CMOS | | Total Pixels | 1945 x 1109 per sensor | | Effective Pixels | 1945 x 1097 per sensor | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.015 lux (f/1.4, 1/30 sec)
B&W: 0.0015 lux (f/1.4, 1/30 sec) | | S/N Ratio | 50 dB | | Video Out | CVBS: 1.0 V p-p / 75 Ohms composite, 720 x 480 (NTSC), 720 x 576 (PAL), for installation (selectable CVBS per channel) | | | | Lens | DC auto iris, P-iris | | Focal Length | 4 x 2.8-12mm motorized varifocal lenses | | Maximum Aperture Ratio | f/1.4 to 3.6 (wide to tele) | | Optical Zoom | 4.3x | | Field of View | Horizontal: 119.5 to 27.9° (wide to tele)
Vertical: 62.8 to 15.7° (wide to tele)
Diagonal: 142.1 to 32° (wide to tele) | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (Motorized varifocal) / Manual, Remote control via network (Manual, Simple focus) | | Mount Type | Board type | | | | Range | Quad Mode: ±30° / 10 to 41° / ±90°
Center Mode: ±60° / 10 to 41°, 10 to 90° (CH2/Center) / ±90° | | | | Camera Title | Off/on (displayed up to 85 characters)
English/numeric/special characters
Multi-line (maximum 5), color (gray/green/red/blue/black/white), transparency, auto scale by resolution | | Day/Night | Auto (ICR), color, B&W, external, schedule | | Backlight Compensation | Off, BLC, HLC (Masking, Dimming) | | Wide Dynamic Range | 150 dB | | Contrast Enhancement | SSDR (off/on) | | Digital Noise Reduction | SSNRV (2D and 3D noise filter) (off/on) | | Image Stabilization | Digital: Off/on (built-in gyro sensor) | | Defog | Off, auto, manual | | Motion Detection | Off/on (8 x 8-point polygonal zones) | | Privacy Masking | Off/on (32 x polygonal zones)
Color: Gray/green/red/blue/black/white, mosaic | | Gain Control | Off, low, middle, high, manual | | White Balance | ATW, AWC, manual, indoor, outdoor (including mercury and sodium light sources) | | Contrast | Level adjustment | | Lens Distortion Correction | Off/on (5 levels with minimum/maximum) | | Electronic Shutter Speed | Minimum/maximum/anti-flicker (2 to 1/12,000 sec) | | Digital Zoom | 24x | | Flip / Mirror | Flip: Off/on
Mirror: Off/on
Hallway View: 90°, 270° | | Intelligent Video Analytics | Tampering, loitering, directional detection, defocus detection, fog detection, virtual line, enter/exit, appear/disappear, motion detection | | Alarm I/O | 1/1 | | Alarm Triggers | Alarm input, motion detection, video analytics, network disconnect, SD card error | | Alarm Events | File upload via FTP, email, notification via email, local storage (SD/SDHC/SDXC) recording at event triggers, external output | | Pixel Counter | Supported | | | | Ethernet | RJ45 10/100/1000Base-T Ethernet | | Video Compression Format | H.265, H.264 (MPEG-4 part 10/AVC) mainbaselinehigh, MJPEG | | Resolution | Per Sensor: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265/H.264: Maximum 60 fps in all resolutions
MJPEG: Maximum 30 fps | | Smart Codec | Manual mode (5 x area-based)
Supports WiseStream II | | Video Quality Adjustment | H.265, H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.265, H.264: CBR or VBR, with WiseStream
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 40 profiles) | | IP | IPv4, IPv6 | | Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast, multicast | | Maximum User Access | 20 users at unicast mode | | Storage | 4 x SD/SDHC/SDXC card slots, each supports up to 128 GB (cards not included)
Motion images can be downloaded on the memory card or local PC for instant recording | | Application Programming Interface | ONVIF Profile S, SUNAPI (HTTP API) | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | OS Compatibility | Microsoft Windows 7, 8, 10
Apple Mac OS X 10.10, 10.11, 10.12 | | Web Viewer | Plugin-Free:
Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9 (Mac OS X only)
Plugin: MS Explore 11, Apple Safari 9 (Mac OS X only) | | | | Operating Temperature | -40° to 131°F (-40 to 55°C) | | Operating Humidity | <90% RH | | Storage Temperature | -58 to 140°F (-50 to 60°C) | | Storage Humidity | <90% RH | | IP Rating | IP66 | | IK Rating | IK10 | | | | Power Supply | 12 VDC, PoE+ | | Maximum Power Consumption | 21.6 W (12 VDC)
25.5 W (PoE+) | | | | Material | Aluminum | | Dimensions | 12.36 x 5.98" (314 x 152 mm) | | Weight | 10.7 lb (4.8 kg) | | | | Package Weight | 16.3 lb | | Box Dimensions (LxWxH) | 23.6 x 17.3 x 12.0" |
