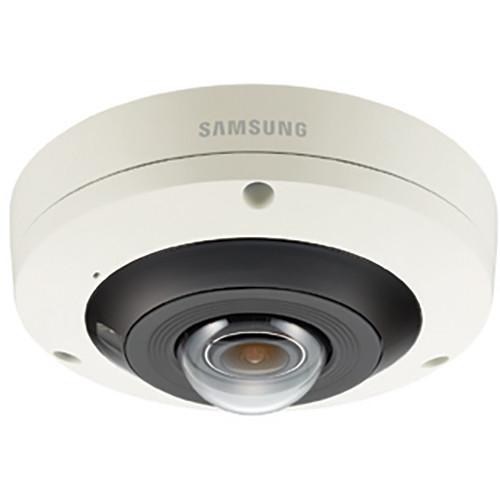

User Manual for Hanwha Techwin WiseNet P Series PNF-9010R 12MP Network Fisheye Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet P Series PNF-9010R
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet P Series PNF-9010R contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Monitor an entire room with the WiseNet P Series PNF-9010R 12MP Network Fisheye Dome Camera from Samsung. The camera has a 2.1mm fisheye lens with 180° horizontal, diagonal, and vertical fields of view for a combined 360° panoramic view. The 12MP CMOS sensor is able to capture 4000 x 3000 resolution video at up to 20 fps for detailed and smooth recordings during the day and at night, thanks to a built-in IR LED. H.265, H.264, and MJPEG triple-compression codecs provide for high-quality recording and playback while optimizing network bandwidth. The camera is housed in an IK10-rated enclosure for protection against impact, making it suitable for use in high-risk areas. - Capture 4000 x 3000 resolution at up to 20 fps
- 2.1mm fisheye lens with a combined 360° field of view
- IR LED for night vision up to 49'
- Built-in dewarping software
- Built-in microphone picks up nearby sound
- IR cut filter and wide dynamic range (120 dB) help the camera produce accurate images in varying lighting conditions
- People counting, heatmapping, and defocus detection functions
- microSD card slot supports up to 128GB card (available separately)
- RJ45 Ethernet connection with PoE for quick installation
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet P Series PNF-9010R 12MP Network Fisheye Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin PNF-9010R Specs | | | Image Sensor | 12 MP 1/1.7" progressive scan CMOS sensor | | Pixels | Total: 4168 x 3062
Effective: 2992 x 2992 | | Minimum Illumination | Color: 0.3 lux at f/2.2, 30 IRE
B&W: 0 lux with IR LED on | | S/N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p, 75 Ohms composite, 714 x 480 (NTSC), 702 x 576 (PAL), for installation
DIP connector type | | | | Type | Fixed, board type | | Focal Length | 2.1mm fisheye | | Aperture | f/2.2 | | Field of View | Horizontal: 180°
Vertical: 180°
Diagonal: 180° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus, manual (remote control via network) | | | | Number of IR LEDs and Range | 1 x IR LED, up to 49' (15 m) | | Camera Title | Off, on (displayed up to 60 characters)
English, numeric special characters
Multi-Line (5 Maximum): Color (grey, green, red, blue, black, white), transparency, auto scale by resolution | | Day/Night | Auto (ICR), color, B&W, external, schedule | | Backlight Compensation | Off, BLC | | Wide Dynamic Range | Up to 120 dB | | Contrast Enhancement | SSDR (off, on) | | Digital Noise Reduction | SSNR (2D and 3D noise filter) (off, on) | | Defog | Off, auto, manual | | Motion Detection | Off, on (8 x polygonal zones) | | Privacy Masking | Off, on (8 x polygonal zones)
Color: Gray, green, red, blue, black, white | | Gain Control | Off, low, middle, high | | White Balance | ATW, AWC, manual, indoor, outdoor | | Electronic Shutter Speed | Minimum, maximum, anti-flicker | | Digital Zoom | 16x (preset, group) | | Flip / Mirror | Off, on | | Intelligent Video Analytics | Tampering, virtual line, enter/Exit, appear/disappear, audio detection, defocus detection | | Alarm Input / Output | 1 x input, 1 x output | | Alarm Triggers | Alarm input, motion detection, video analytics, audio detection, network disconnect, microSD card error, NAS error | | Alarm Events | File upload via FTP and email, notification via email, local storage (microSD/SDHC/SDXC) or NAS recording at event triggers, external output | | Viewing | Camera Side: Fisheye, single panorama, double panorama, fisheye and 4 PTZ quad view, fisheye and 8 PTZ | | Pixel Counter | Support (plug-in viewer only) | | | | Ethernet | RJ45 10/100/1000Base-T | | Video Compression Format | H.265, H.264, MJPEG | | Resolution | Fisheye: 4000 x 3000, 2992 x 2992, 2560 x 2560, 2048 x 2048, 1280 x 1280, 640 x 640
Double Panorama: 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360
Single Panorama: 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 576, 640 x 360
Quad View: 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480 | | Frame Rates | H.265/H.264: 20 fps at 4000 x 3000, 25 fps at under 2992 x 2992
MJPEG: Maximum 15 fps in all resolutions | | Smart Codec | Manual mode (area-based: 5 x zones) | | Streaming | WiseStream
Multiple streaming (up to 3) | | Video Quality Adjustment | H.265/H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Audio In | Selectable (mic in, line in, built-in mic)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm mono jack)
Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 KHz, G.711 8 KHz
G.726: 16, 24, 32, 40 Kbps, AAC-LC: 48 Kbps at 16 KHz | | Audio Communication | Two-way | | Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SIP | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast, multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | microSD/SDHC/SDXC (up to 128 GB)
Motion images recorded on the microSD/SDHC/SDXC memory card can be downloaded
Camera can detect automatically when the memory is connected
Memory status display (normal, error, active, formatting, lock)
NAS (Network Attached Storage), local PC for instant recording (plug-in viewer only) | | Application Programming Interface | ONVIF Profile S and G, SUNAPI (HTTP API) v2.0, WiseNet Open Platform | | Web Browser Support | Supported OS: Windows 7, 8.1, 10
Mac OS X 10.9, 10.10, 10.11
Google Chrome 47, Microsoft Edge 20, Internet Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Central Management | Software: SmartViewer | | Languages | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek | | | | Input Voltage | 12 VDC ±10%, PoE (IEEE 802.3af, Class 3) | | Power Consumption | 12 VDC: Maximum 11 W
PoE: 12 W | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | <90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <90% RH | | IK Rating | IK10 | | | | Casing | Plastic | | Dimensions | 5.75 x 2.5" (146 x 63.4 mm) | | Weight | 1.77 lb (0.81 kg) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 7.2 x 7.1 x 6.5" |
