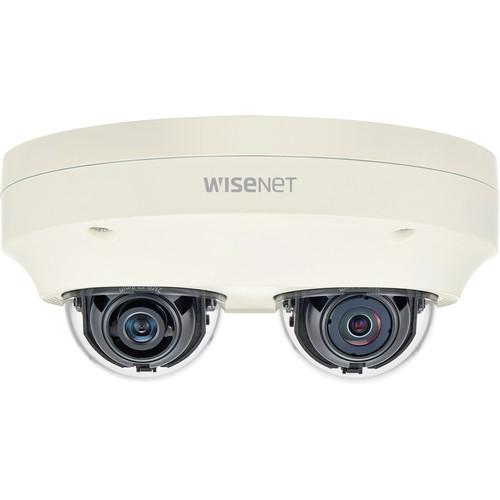

User Manual for Hanwha Techwin WiseNet P Series PNM-7000VD Outdoor Network Dual Dome Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet P Series PNM-7000VD
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet P Series PNM-7000VD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Customize a dual-lens security camera to your needs with the ivory WiseNet P Series PNM-7000VD Outdoor Network Dual Dome Camera from Hanwha Techwin. Combined with two separately available 2MP sensor modules, the PNM-7000VD enables you to capture two views with a single camera. The sensor modules integrate 2.4, 2.8, 3.6, or 6mm fixed lenses to fit a variety of applications.
The PNM-7000VD camera body is equipped with two microSD card slots for onboard storage of footage and uses PoE to transfer data and power over a single cable. Moreover, it is rated IP66 and IK10 for weather and vandal resistance. ONVIF compliance ensures compatibility with a wide range of surveillance devices. - Supports two 2MP (2x 1920 x 1080) sensor modules (available separately)
- 2.4, 2.8, 3.6, and 6mm fixed lens options (lenses are integrated into sensor modules)
- Up to 60 fps per sensor at all supported resolutions (H.265/H.264)
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Digital IR cut filter for day and night vision
- 150 dB wide dynamic range
- Intelligent video analytics including loitering detection, directional detection, fog detection, motion detection, and tamper detection
- Two built-in microSD/SDHC/SDXC memory card slots for edge storage support up to 256GB each (microSD/SDHC/SDXC cards available separately)
- Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
- PoE technology for easy, clutter-free installation
- Integrated Lens Distortion Correction (LDC) technology
- IP66 rated for outdoor use
- IK10-rated vandal resistance
In the Box Hanwha Techwin WiseNet P Series PNM-7000VD Outdoor Network Dual Dome Camera (No Sensor) Software CD Cable for Testing Monitor Template Star-Shaped Wrench 3 x Tapping Screws 3 x Plastic Anchors 3 x Machine Screws RJ45 Waterproofing Accessory Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet P Series PNM-7000VD Outdoor Network Dual Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin PNM-7000VD Specs | | | Zoom | Digital: 24x | | IR Cut Filter | Digital | | Day/Night | Yes | | Shutter Speed | 1/12,000 to 2 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps Per Module | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | SUNAPI (HTTP API) | | Analytics | Tampering, Loitering, Directional Detection, Fog & Dust Detection, Virtual Line, Enter, Exit, Appear, Disappear, Face Detection, and Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8.1, 10 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 | | | | Recording Media | microSD (Up to 512 GB) 2 x 256 GB | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | Video Management Software | SmartViewer, SSM | | Supported Languages | Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese
Turkish | | Certifications | UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 12.95 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Storage Temperature | -58 to 140°F / -50 to 60°C | | Operating Humidity | 0 to 89% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
