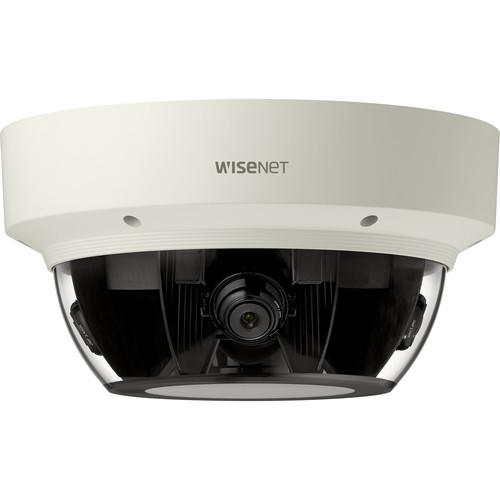

User Manual for Hanwha Techwin WiseNet P Series PNM-9000VQ Outdoor Network Quad Dome Camera

• Product category: Wired IP Cameras Hanwha Techwin
• Brand: Hanwha Techwin
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hanwha Techwin Wired IP Cameras

Product description

• Supports four 5MP (2560 x 1920) or 2MP (1920 x 1080) sensor modules (available separately)

• Up to 20MP total resolution depending on the combination of sensor/lens modules

• 5MP sensor modules available with 3.7, 4.6, or 7mm fixed lens

• 2MP sensor modules available with 2.4, 2.8, 3.6, or 6mm fixed lens

• Up to 60 fps per 2MP sensor and up to 30 fps per 5MP sensor at all supported resolutions (H.265/H.264)

• H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use

• WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image

• Multiple streaming

• Digital IR cut filter for day and night vision

• 120 dB wide dynamic range

• Intelligent video analytics including tamper detection, loitering detection, directional detection, fog detection, virtual line, enter, exit, appear, disappear, face detection, motion detection, and defocus detection

• Four built-in microSD/SDHC/SDXC memory card slots for edge storage support up to 256GB each (microSD/SDHC/SDXC cards available separately)

• Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles

• PoE+ technology for easy, clutter-free installation

• Integrated Lens Distortion Correction (LDC) technology

• IP66 rated for outdoor use

• IK10-rated vandal resistance

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Hanwha Techwin PNM-9000VQ Specs

Recording Media	microSD (Up to 1024 GB) 4 x 256 GB
Pan/Tilt	None
I/O Connections	1 x RJ45
Video Management Software	SmartViewer, SSM
Supported Languages	Czech Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Spanish Swedish Traditional Chinese Turkish
Certifications	UL, as per Manufacturer
Internal Storage	None
External Storage Options	Local PC
Power Source	PoE 802.3at (30 W)
Power Consumption	25.5 W
Material of Construction	Metal (Unspecified Type)
Operating Temperature	-40 to 131°F / -40 to 55°C
Storage Temperature	-58 to 140°F / -50 to 60°C
Operating Humidity	0 to 89%
IP Rating	IP66
IK Rating	IK10
