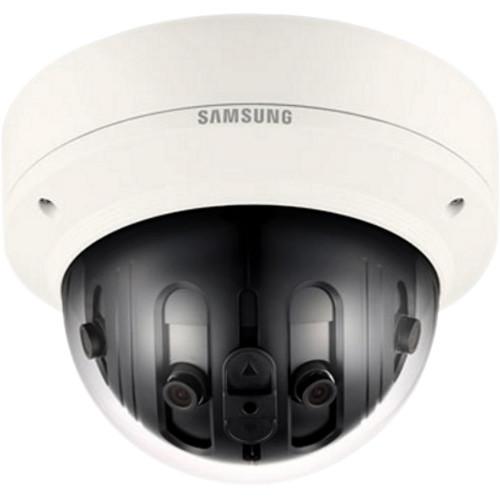

Product description Monitor a large outdoor area with the WiseNet P Series PNM-9020V 7.3MP Multi-Sensor Panoramic Outdoor Network Dome Camera with Heater from Hanwha Techwin. This multi-sensor camera has four 3.6mm fixed lenses to produce a 180° panoramic field of view. Its four sensors can capture up to 4096 x 1800 resolution video in panoramic view, or 2048 x 1536 resolution video in half-view, both at up to 30 fps. It supports H.265, H.264, and MJPEG compression formats with support for simultaneous multiple streaming, ensuring smooth recording and playback while optimizing network bandwidth.
With an audio input and output, this camera can support two-way audio and has an alarm input and output as well. The microSD slot supports up to 128GB cards (available separately) for local storage. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for use outdoors and in high-risk areas. A built-in heater allows the camera to operate in extremely cold environments down to -40°F. - Four sensors capture a combined 4096 x 1800 resolution video at up to 30 fps
- Four 3.6mm fixed lenses generate a 180° panoramic field of view
- Two-way audio communication with audio input and output
- Alarm input and output for event and trigger functionality
- 2D/3D digital noise reduction, backlight compensation, and contrast enhancement help the camera produce accurate images in varying lighting conditions
- Pan the lenses from 0 to 355° and tilt them from 0 to 60°
- ONVIF-compliant (Profile S and G) for compatibility
- microSD slot for local storage
- Built-in heater for use in extreme weather conditions
- IP66- and IK10-rated enclosure for outdoor use and for use in high-risk environments
In the Box Hanwha Techwin WiseNet P Series PNM-9020V 7.3MP Multi-Sensor Panoramic Outdoor Network Dome Camera with Heater Power Terminal Block Mounting Template Power Cable Audio/Alarm Cable Cable Bush 2 x Ferrite Cores Mounting Hardware L Wrench Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet P Series PNM-9020V 7.3MP Multi-Sensor Panoramic Outdoor Network Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin PNM-9020V Specs | | | Image Sensor | 7.3 MP (4 x 2 MP) | | Total Pixels | 5152 x 1981 | | Effective Pixels | 4096 x 1800 | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.3 lux | | | | Focal Length | 4 x 3.6mm fixed lenses | | Maximum Aperture Ratio | f/2.0 | | Field of View | Horizontal: 180°
Vertical: 84° | | Minimum Object Distance | 4.92' (1.5 m) | | Focus Control | Manual | | Mount Type | Board type | | Pan | 0 to 355° | | Tilt | 0 to 60° | | | | Camera Title | Off, on (displayed up to 45 characters)
English, numeric, special characters
Multi-line (maximum 6), color (gray, green, red, blue, black, white), transparency, auto scale by resolution | | Day/Night | Auto (ICR), color, B&W, external, schedule | | Backlight Compensation | Off, BLC | | Contrast Enhancement | SSDR (off, on) | | Digital Noise Reduction | SSNR III (2D and 3D noise filter) (off, on) | | Defog | Off, auto, manual | | Motion Detection | Off, on (8 x polygonal), hand over | | Privacy Masking | Off, on (16 x polygonal with 4 lines only)
Color: Gray, green, red, blue, black, white | | Gain Control | Off, low, middle, high | | White Balance | ATW, AWC, manual, indoor, outdoor (not including mercury and sodium light sources) | | Electronic Shutter Speed | Minimum, maximum, anti-flicker | | Flip / Mirror | Off, on | | Digital PTZ | Supported | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear/disappear, audio detection, defocus detection, digital auto tracking, heat map | | Alarm I/O | 1 x input
1 x output | | Alarm Triggers | Alarm input, motion detection, tampering (scene change), virtual line, enter/exit, appear/disappear, audio detection, defocus detection | | Alarm Events | File upload via FTP, email, notification via email, local storage, or NAS recording at event triggers, external output | | Pixel Counter | Supported (plug-in viewer only) | | Composition | Plugin: Single panorama, panorama +3 PTZ
Plugin-Free: 3D view | | | | Ethernet | RJ45 1000Base-T Ethernet | | Video Compression Format | H.265, H.264 (MPEG-4 part 10/AVC) main, baseline, high), MJPEG | | Resolution | Panorama: 4096 x 1800, 3584 x 1576, 3072 x 1352, 2560 x 1124, 2048 x 900, 1536 x 676, 1024 x 452, 512 x 224, 720 x 576
Half-View: 2048 x 1536, 1600 x 1200, 1024 x 768, 800 x 600 | | Frame Rate | H.265/H.264: Maximum 30 fps in all resolutions
MJPEG: Maximum 15 fps | | Smart Codec | Manual mode (5 x area-based) | | Video Quality Adjustment | H.265, H.264, MJPEG: Target bit rate level control | | Bit Rate Control | H.265, H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Line in
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm stereo mini jack) | | Audio Compression Format | G.711 u-law/G.726: selectable, G.726 (ADPCM): 8 kHz, G.711: 8 kHz
G.726: 16, 24, 32, 40 kbps
AAC-LC: 48 kbps at 16 kHz | | Audio Communication | Two-way | | Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast, multicast | | Maximum User Access | 15 users at unicast mode | | Storage | microSD/SDHC/SDXC up to 128 GB (available separately)
Motion images can be downloaded
Camera can detect automatically when memory is connected
Memory status display (normal, error, active, formatting, lock)
NAS (Network Attached Storage), Local PC for instant recording (plug-in viewer only) | | Application Programming Interface | ONVIF Profile S and G SUNAPI (HTTP API), SVNP, WiseNet open platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | OS Compatibility | Microsoft Windows 7, 8.1, 10
Apple Mac OS X 10.9, 10.10, 10.11 | | Web Viewer | Plugin-Free Web Viewer:
Google Chrome 47, Microsoft Edge 20, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only)
Plugin Web Viewer: Microsoft Explore 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Central Management | SmartViewer, SSM | | | | Operating Temperature | -40° to 131°F (-40 to 55°C)
Startup: Above -31°F (-35°C) | | Operating Humidity | <90% RH | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Storage Humidity | <90% RH | | Heater | Built-in | | IP Rating | IP66 | | IK Rating | IK10 | | | | Input Voltage | PoE+ IEEE 802.3at | | Current | 12 VDC | | Power Consumption | PoE+ and Heater On: 25.5 W maximum
12 VDC with Heater On: 21 W maximum | | | | Material | Aluminum | | Dimensions | 7.8 x 5.65" (199 x 143.5 mm) | | Weight | 4.5 lb (2.03 kg) | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 11.4 x 9.4 x 7.9" |
