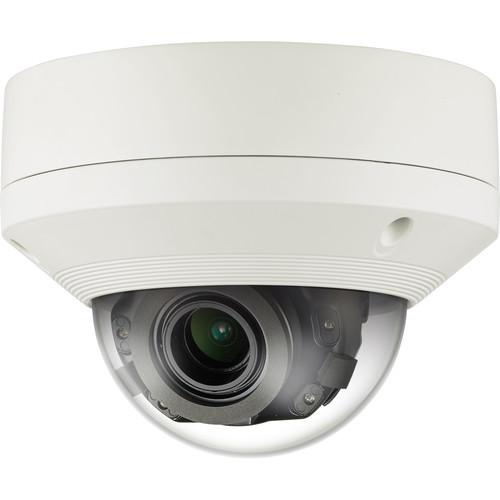

User Manual for Hanwha Techwin WiseNet P Series PNV-9080R 12MP Outdoor Network Dome Camera with Night Vision & Heater Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet P Series PNV-9080R
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
 |
User manual for the Hanwha Techwin WiseNet P Series PNV-9080R contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|

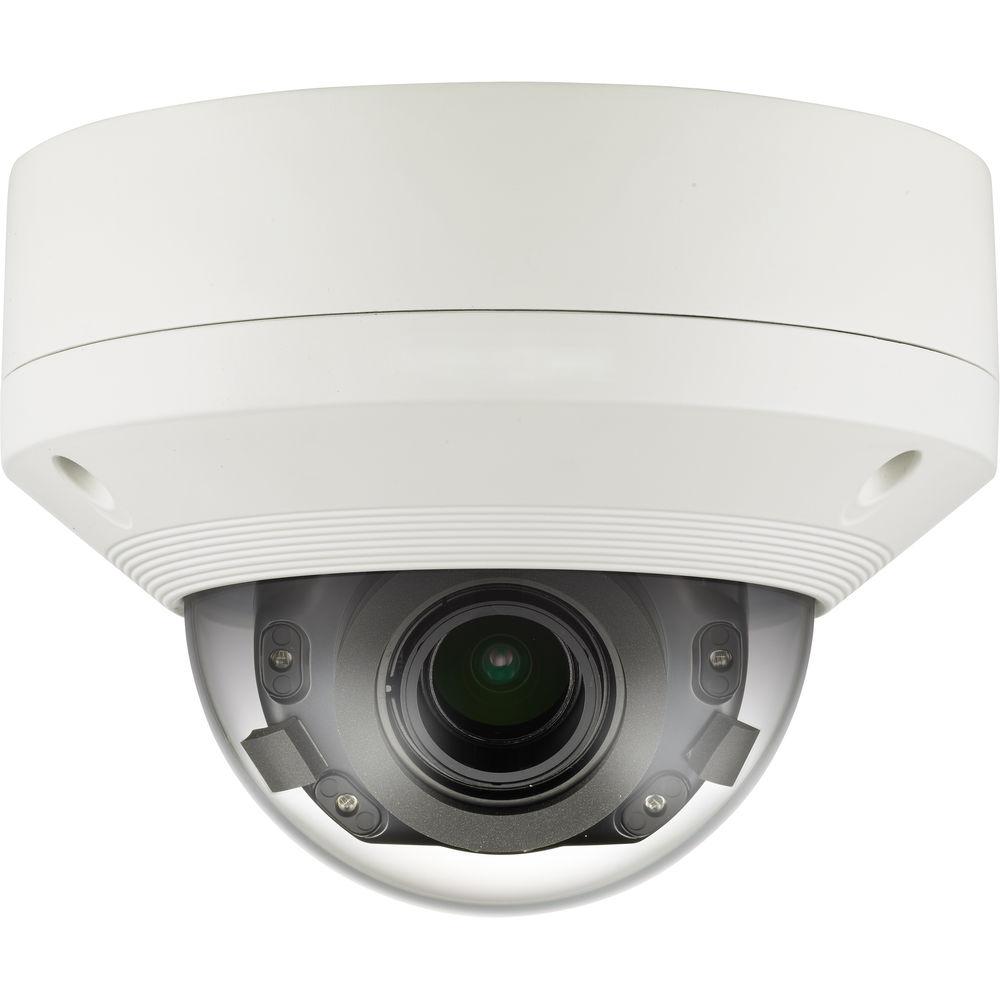

Product description The ivory WiseNet P Series PNV-9080R 12MP Outdoor Network Dome Camera from Hanwha Techwin uses a 1/1.7" progressive scan CMOS sensor to capture 4000 x 3000 resolution video at 20 fps. IR LEDs provide up to 131' of night vision. The camera's 4.5-10mm motorized varifocal lens delivers a horizontal view up to 100.3 to 45.6°. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles S, G, and Q, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated aluminum enclosure. A built-in heater ensures that the camera remains within operating temperatures. - IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video compressions
- Unicast and multicast streaming
- Up to fifteen users in unicast mode
- Camera pivots from 0 to 354° horizontally and from 0 to 67° vertically
- 1.64' minimum object distance
- Focus control includes simple focus, along with manual and remote control via network
- 120 dB wide dynamic range
- SSDR contrast enhancement
- White balance modes include ATW, AWC, manual, indoor, and outdoor (mercury & sodium)
- Flip, mirror, and hallway view (90 and 270° rotation)
- BNC video output for installation
- Intelligent video analytics include tampering (scene change), virtual line, (dis)appear, enter/exit, audio detection, defocus detection, and digital auto tracking with metadata
- Alarm triggers include alarm input, motion detection, video analytics, audio detection, and network disconnect
- Alarm events include file upload via FTP and email, notification via email, local storage (microSD card) or NAS recording at event triggers, and external output
- Compatible with Windows 7, 8.1 & 10, Mac OS X 10.9, 10.10 & 10.11, Chrome 47, Microsoft Edge 20, Internet Explorer 11, Firefox 43, Safari 9 (Mac OS X only), and SmartViewer
- Camera title settings in English and Chinese
- FCC, cUL, and CE certified
In the Box Hanwha Techwin WiseNet P Series PNV-9080R 12MP Outdoor Network Dome Camera with Night Vision & Heater Monitor Testing Cable Template Power Terminal Block L Wrench 3 x Tapping Screws Power Cable Audio/Alarm Cable Cable Bush 3 x Plastic Anchors 3 x Machine Screws Card-Type Moisture Absorbent Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet P Series PNV-9080R 12MP Outdoor Network Dome Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin PNV-9080R Specs | | | Sensor | 12.4 MP 1/1.7" CMOS | | Focal Length | 4.5 to 10mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 2.2x | | Lens Field of View | Horizontal: 100.3 to 45.6°
Horizontal: 92.3 to 42.6°
Vertical: 49.7 to 24° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.01 Lux
B&W: 0 Lux | | Shutter Speed | 1/12,000 to 2 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 354°
Vertical: 0 to 67° | | | | Streaming Resolution | 4000 x 3000 at 20 fps
4096 x 2160 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | AAC, G.711, G.726 | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S, P, and Q, SUNAPI (HTTP API), SVNP, Wisenet Open Platform | | Analytics | Motion Detection
Tampering (Scene Change)
Virtual Line
Enter/Exit
(Dis)Appear
Audio Detection
Defocus Detection
Digital Auto Tracking with Metadata | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | Pixel Counter | | | | Windows OS Support | Windows 7, 8.1, 10 | | Mac OS Support | OS X 10.11, OS X 10.10, OS X 10.9 | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC | | IR Range | 131.23' / 40 m | | Video Management Software | SmartViewer | | Supported Languages | Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Turkish | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | AC: 14.08 W (With Heater)
DC: 11.55 W (With Heater)
PoE: 12.95 W (With Heater) | | Material of Construction | Aluminum | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
