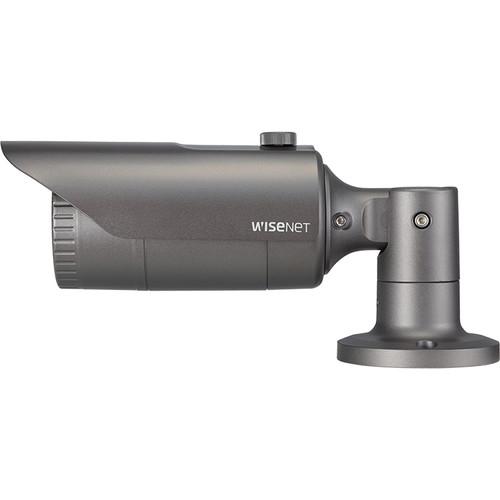

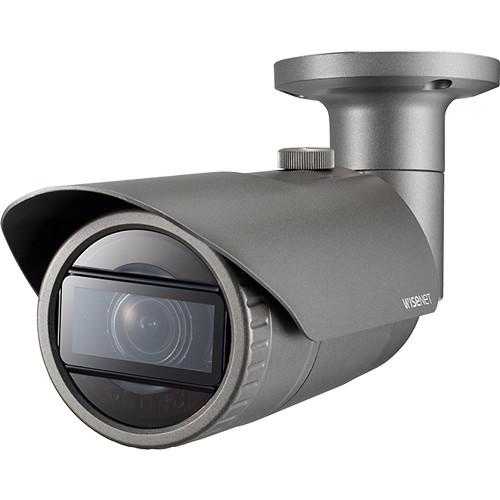

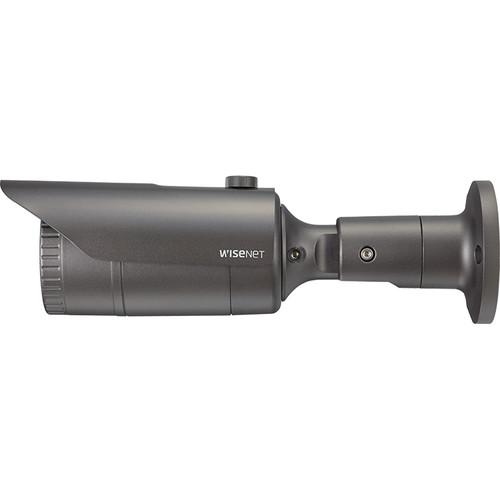

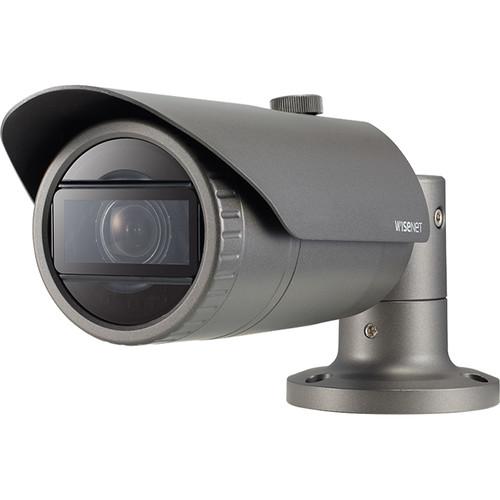

User Manual for Hanwha Techwin WiseNet Q 2MP Outdoor Network Bullet Camera with 2.8-12mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Q 2MP Outdoor
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
 |
User manual for the Hanwha Techwin WiseNet Q 2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The dark gray WiseNet Q 2MP Outdoor Network Bullet Camera from Samsung is equipped with a 2.8-12mm varifocal lens. It features 1920 x 1080 resolution, WiseStream support, defocus detection, hallway view, unidirectional audio, and a microSD card slot (SD/SDHC/SDXC up to 128GB, available separately). PoE technology enables you to run just one wire for both data and power, for a simple and easy setup, and H.264 video compression conserves bandwidth usage for fast transmissions. - Maximum 2MP (1920 x 1080) resolution
- H.265 and H.264 MJPEG codecs supported with multiple streaming
- Built-in 2.8-12mm varifocal lens
- Motion detection, tampering, defocus detection
- microSD (128GB) memory slot, PoE / 12 VDC
- IP66-rated weather resistance, IK10 vandal resistance
- Hallway view and WiseStream support
- LDC support (Lens Distortion Correction)
- Maximum 30 fps at 2 MP all resolutions (H.265/H.264)
In the Box Hanwha Techwin WiseNet Q 2MP Outdoor Network Bullet Camera with 2.8-12mm Varifocal Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Q 2MP Outdoor Network Bullet Camera with 2.8-12mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QNO-6070R Specs | | | Focal Length (Zoom Ratio) | 2.8-12mm (4.3x) manual | | Maximum Aperture Ratio | f/1.4 | | Angular Field of View (D/V/H) | Horizontal: 103.8-32.4˚
Vertical: 53.7-18.4˚
Diagonal: 121.9-37.1˚ | | Lens Type | Manual varifocal, DC auto iris | | Mount Type | Board type | | | | Imaging Device | 1/2.9" 2.19 MP CMOS sensor | | Total Pixels (H x V) | 2,000 x 1,121 | | Effective Pixels (H x V) | 1,984 x 1,105 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.095 lux
B&W: 0 lux (IR LED on) | | | | IR Range | 98.43' (30 m) | | Camera Title | Off / On (Displayed up to 20 characters per line)
W/W: English / Numeric / Special characters
China: English / Numeric / Special / Chinese characters
Common: Multi-line (maximum 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | | Day & Night | True Day & Night | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | SSNR (Off / On) | | Motion Detection | Off / On (4 each polygonal zones) | | Privacy Masking | Off / On (6 each rectangular zones) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Lens Distortion Correction | Off / On (5 levels with minimum / maximum) | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker | | Flip / Mirror | Flip / Mirror / Hallway view | | Intelligent Video Analytics | Motion detection with metadata, tampering, defocus detection | | Alarm I/O | 1 x input
1 x output | | Alarm Triggers | Motion detection, tampering detection, SD card error, NAS error, alarm input, defocus detection | | Alarm Events | File upload via FTP and email, local storage recording at event, notification via email, external output | | Pixel Counter | Support (plug-in viewer only) | | | | Ethernet | RJ45 (10/100Base-T) | | Video Compression Format | H.265, H.264, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240 | | Frame Rate | H.265 / H.264: Maximum 30 fps at 2 MP all resolutions, MJPEG: 15 fps | | Smart Codec | WiseStream | | Video Quality Adjustment | H.265/H.264: Target bit rate level control, MJPEG: Quality level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to three profiles) | | Audio I/O | Line in | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps | | Audio Communication | Unidirectional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Max. User Access | 6 users at unicast mode | | Storage | microSD/SDHC/SDXC (Maximum 128 GB, available separately), NAS
Motion images recorded in the SD memory card can be downloaded
Manual recording at local PC | | Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API) | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in free Webviewer
Supported Browser: Google Chrome 47, MS Edge 20
Plug-in Webviewer
Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | CMS | SmartViewer | | | | Input Voltage | PoE (IEEE802.3af, Class3) / 12 VDC | | Power Consumption | Maximum 8 W (PoE), Maximum 7 W (12 VDC) | | | | Operating Temperature / Humidity | -22 to 131°F (-30 to 55°C) / Less than 90% RH
(Startup should be done at above -4°F (-20°C ) | | Storage Temperature / Humidity | -22 to 140°F (-30 to 60°C) / Less than 90% RH | | Ingress protection | IP66 | | Vandal Resistance | IK10 | | | | Material | Metal | | Dimensions (Ø x H) | 2.76 x 9.69" (70 x 246 mm) | | Weight | 1.61 lb (0.73 kg) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 11.2 x 4.8 x 4.4" |
