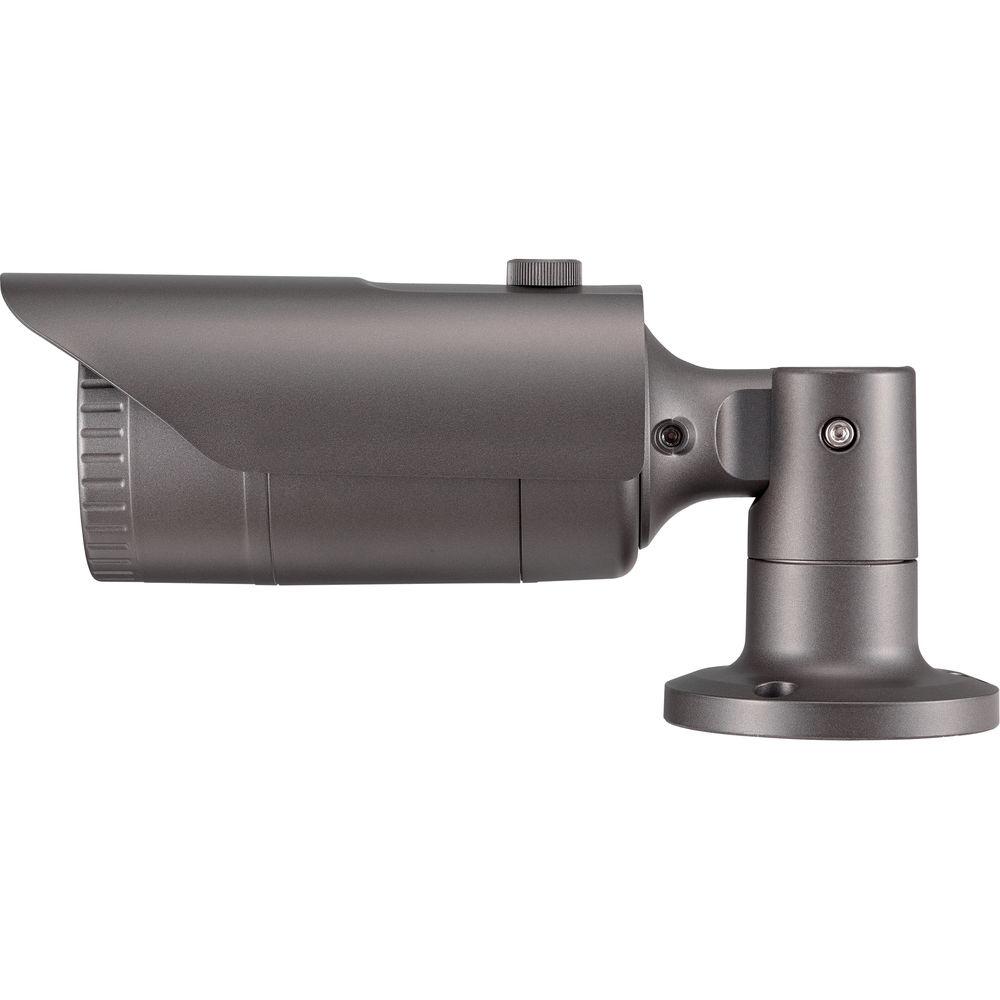

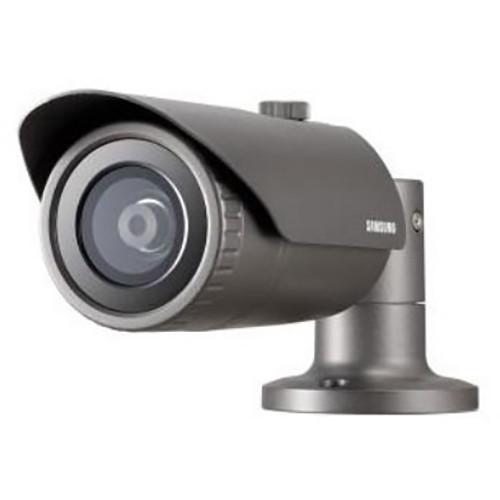

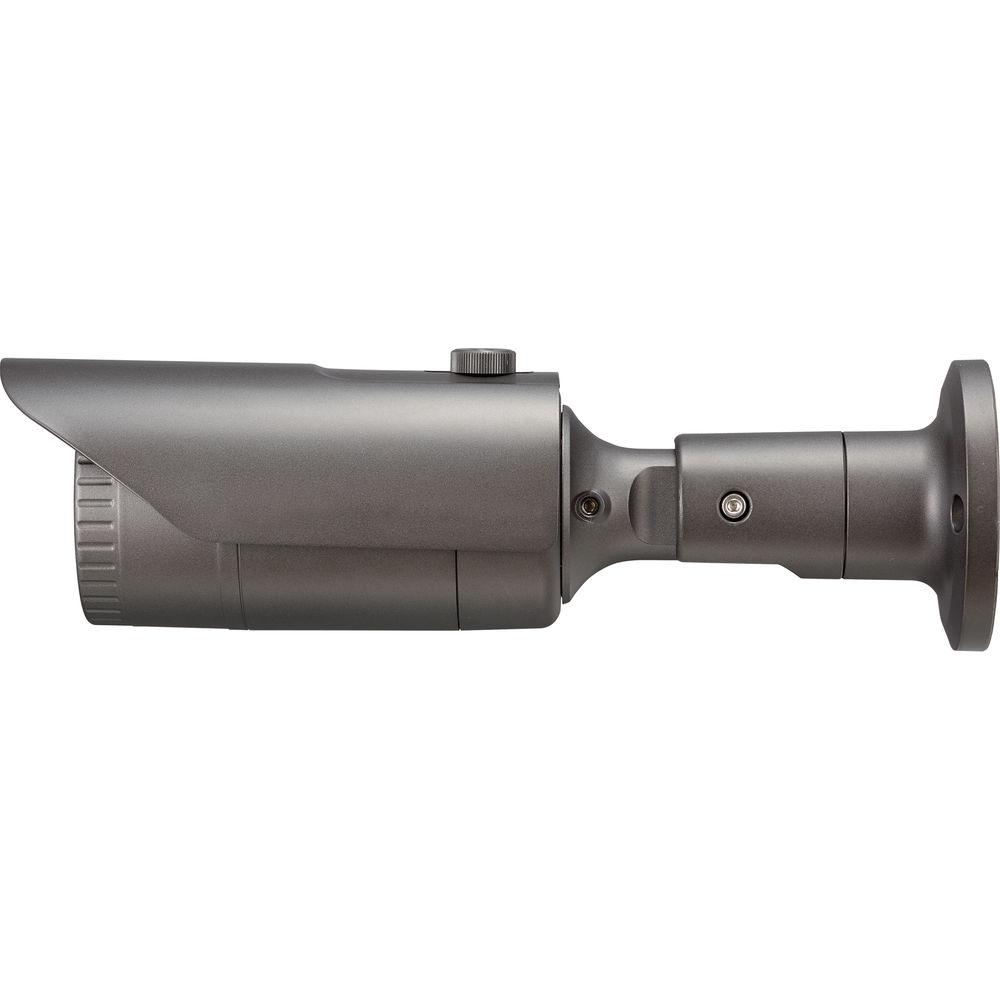

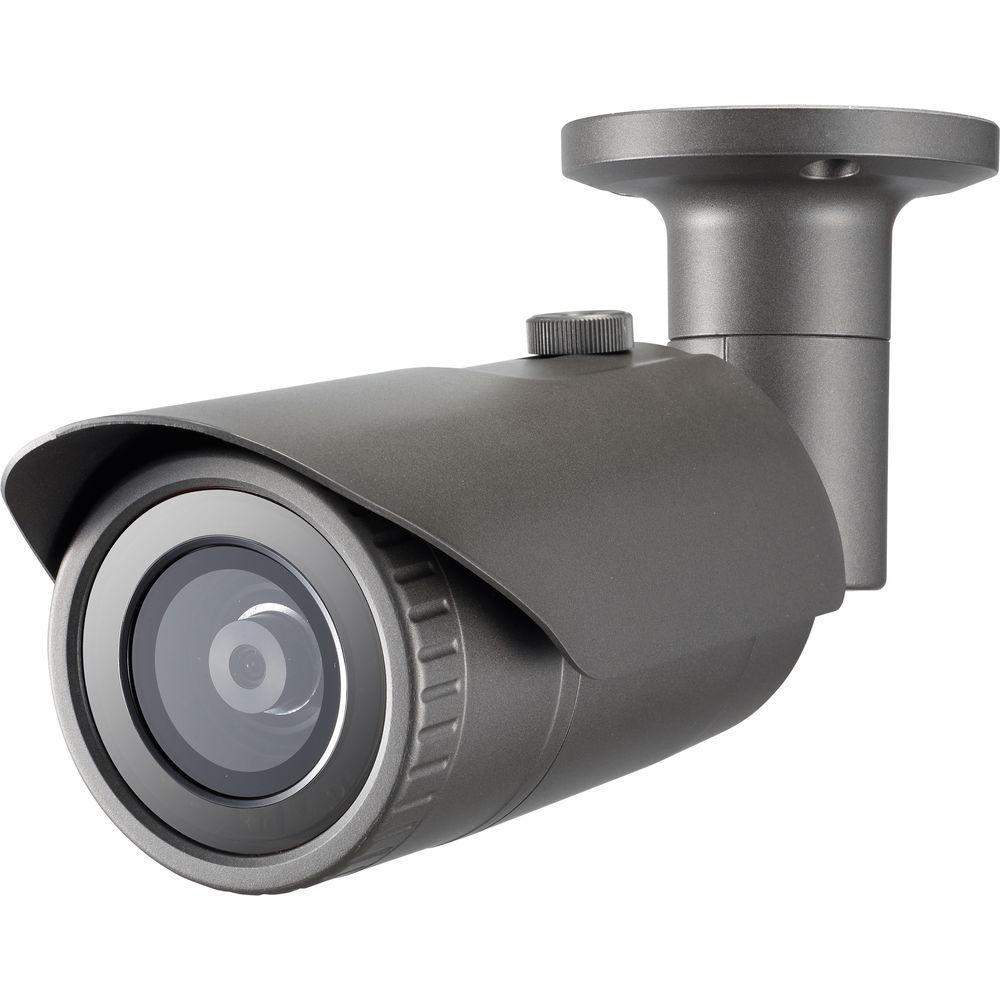

User Manual for Hanwha Techwin WiseNet Q 4MP Network Outdoor Bullet Camera with 6mm Fixed Lens with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Q 4MP Network
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
 |
User manual for the Hanwha Techwin WiseNet Q 4MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The dark gray-colored WiseNet Q 4MP Network Outdoor Bullet Camera from Samsung is equipped with a {lens} fixed lens. It features a 2720 x 1536 resolution, WiseStream support, defocus detection, hallway view, one-way audio, and a microSD card slot (SD/SDHC/SDXC up to 128GB). PoE technology enables you to run just one wire for both data and power for a simple setup, and H.264 video compression conserves bandwidth for faster transmissions. - Maximum 4MP (2720 x 1536) resolution
- H.265 and H.264 MJPEG codec supported with multiple streaming
- Motion detection, tampering, defocus detection
- microSD (128GB) memory card slot
- IR viewable length 98.43'
- IK10 vandal resistance and IP66-rated camera
- Hallway view and WiseStream support
- LDC support (Lens Distortion Correction)
- Maximum 20 fps at 4MP, 30 fps at under 2MP (H.265/H.264)
In the Box Hanwha Techwin WiseNet Q 4MP Network Outdoor Bullet Camera with 6mm Fixed Lens with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Q 4MP Network Outdoor Bullet Camera with 6mm Fixed Lens with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QNO-7030R Specs | | | Focal Length (Zoom Ratio) | 6mm Fixed | | Maximum Aperture Ratio | f/2.2 | | Field of View (H x V x D) | Horizontal: 53.0°
Vertical: 31.0°
Diagonal: 62.0° | | Lens Type | Fixed | | Mount Type | Board type | | | | Imaging Device | 1/3" 4 MP CMOS Sensor | | Total Pixels (H x V) | 2,720 x 1,536 | | Effective Pixels (H x V) | 2,688 x 1,520 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.3 lux
B&W: 0 lux (IR LED on) | | | | IR Range | 98.43' (30 m) | | Camera Title | Off / On (Displayed up to 20 characters per line)
W/W: English / Numeric / Special characters
China: English / Numeric / Special / Chinese characters
Common: Multi-line (maximum 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | | Day & Night | True Day & Night | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | SSNR (Off / On) | | Motion Detection | Off / On (4ea polygonal zones) | | Privacy Masking | Off / On (6ea rectangular zones) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Lens Distortion Correction | Off / On (5 levels with minimum / maximum) | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker | | Flip / Mirror | Flip / Mirror / Hallway view | | Intelligent Video Analytics | Motion detection with metadata, tampering, defocus deteciton | | Alarm I/O | 1x Input
1x Output | | Alarm Triggers | Motion detection, tampering detection, SD card error, NAS error, alarm input, defocus detection | | Alarm Events | File upload via FTP and email, local storage recording at event, notification via email, external output | | Pixel Counter | Support (plug-in viewer only) | | | | Ethernet | RJ45 (10/100BaseT) | | Video Compression Format | H.265, H.264, MJPEG | | Resolution | 2592 x 1520, 2560 x 1440 (16:9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265 / H.264: Maximum 20 fps at 4 MP, 30 fps at under 2 MP
MJPEG: 15 fps | | Smart Codec | WiseStream | | Video Quality Adjustment | H.265/H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to three profiles) | | Audio I/O | Line-in | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps | | Audio Communication | Uni-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Max. User Access | 6 users at unicast mode | | Storage | microSD/SDHC/SDXC (Maximum 128 GB), NAS
Motion images recorded in the SD memory card can be downloaded
Manual recording at local PC | | Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API) | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in free Webviewer
Supported Browser: Google Chrome 47, MS Edge 20
Plug-in Webviewer
Supported Browser: MS Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Management Software | Central: SmartViewer | | | | Input Voltage | PoE (IEEE 802.3af, Class3) / 12 VDC | | Power Consumption | Maximum 7 W (PoE), Maximum 6 W (12 VDC) | | | | Operating Temperature / Humidity | -22 to 131°F (-30 to 55°C) / Less than 90% RH
(Startup should be done at above -4°F (-20°C)) | | Storage Temperature / Humidity | -22 to 140°F (-30 to 60°C) / Less than 90% RH | | Ingress Protection | IP66 | | Vandal Resistance | IK10 | | | | Material | Metal | | Dimensions (Ø x H) | 2.76 x 9.69" (70 x 246 mm) | | Weight | 0.61 lb (0.73 kg) |
