User Manual for Hanwha Techwin WiseNet Q 4MP Outdoor Vandal-Resistant Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Q 4MP Outdoor
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet Q 4MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|

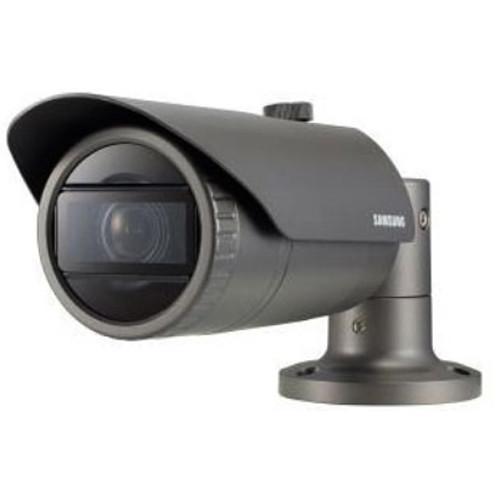

Product description The WiseNet Q 4MP Outdoor Vandal-Resistant Network Bullet Camera with Night Vision from Samsung has a 2.8-12mm motorized varifocal lens with a wide-angle 131.3-30.1° field of view to monitor large outdoor areas. It captures video in resolutions up to 4MP at 20 fps and can store footage locally via a microSD card up to 128GB (available separately). An integrated IR LED provides up to 98' of visibility in complete darkness. Backlight compensation and a wide dynamic range further help the camera produce clear images in varying lighting conditions. PoE technology simplifies installation by supplying the camera with power and a network connection in a single Ethernet cable. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, and impact, making it suitable for outdoor use. - 4MP 1/3" progressive scan CMOS sensor captures 4MP video at up to 20 fps
- 2.8-12mm motorized varifocal lens has a 131.3-30.1° field of view
- IR LED for night vision up to 98'
- Motion detection, tampering, defocus detection, LDC support (Lens Distortion Correction)
- microSD slot supports up to 128GB memory cards (available separately) for on-board storage
- IP66- and IK10-rated enclosure
Brochure PDF 235.1kbvbvquztwttbcsxcdcyvcrdba Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Q 4MP Outdoor Vandal-Resistant Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QNO-7080R Specs | | | Imaging Device | 4 MP 1/3" progressive CMOS sensor | | Total Pixels | 2720 x 1536 | | Effective Pixels | 2688 x 1520 | | Minimum Illumination | Color: 0.15 lux (30 IRE)
B/W: 0 lux (IR LED on) | | | | Focal Length | 2.8 to 12mm | | Maximum Aperture Ratio | f/1.4 | | Field of View | Horizontal: 109.7-26.0°
Vertical: 60.8-15.2°
Diagonal: 131.3-30.1° | | Focus Control | Simple focus (motorized varifocal), manual, remote control via network | | Lens Type | DC auto iris | | Mount Type | Board type | | | | IR Range | Up to 98' (30 m) | | Camera Title | Off, on (displayed up to 20 characters per line)
W/W: English, numeric, special characters
China: English, numeric, special, Chinese characters
Common: Multi-line (maximum 5), color (gray, green, red, blue, black, white), transparency, auto scale by resolution | | Day/Night | Mechanical IR cut filter | | Backlight Compensation | Supported | | Wide Dynamic Range | Up to 120 dB | | Digital Noise Reduction | SSNR (Off, on) | | Motion Detection | Off, on (4 zones, polygonal) | | Privacy Masking | Off, on (6 zones, rectangular) | | Gain Control | Off, low, middle, high | | White Balance | ATW, AWC, manual, indoor, outdoor | | Lens Distortion Correction | Off, on (5 levels with minimum/maximum) | | Electronic Shutter Speed | Minimum, maximum, anti-flicker | | Flip / Mirror | Flip, mirror, hallway view | | Intelligent Video Analytics | Motion detection with metadata, tampering, defocus detection | | Alarm I/O | 1 x input, 1 x output | | Alarm Triggers | Motion detection, tampering detection, SD card error, NAS error, alarm input, defocus detection | | Alarm Events | File upload via FTP and email, local storage recording at event, notification via email, external output | | Pixel Counter | Support (plug-in viewer only) | | | | Ethernet | RJ45 10/100Base-T | | Video Compression Format | H.265, H.264, MJPEG | | Resolution | 2592 x 1520, 2560 x 1440 (16:9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265/H.264: Maximum 20 fps at 4 MP, 30 fps at 2 MP and below
MJPEG: 15 fps | | Smart Codec | WiseStream | | Video Quality Adjustment | H.265/H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to three profiles) | | Audio I/O | Line-in | | Audio Compression Format | G.711 u-law, G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps | | Audio Communication | Uni-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast, multicast | | Max. User Access | 6 users in unicast mode | | Storage | microSD/SDHC/SDXC up to 128 GB (available separately), NAS
Motion images recorded to the SD memory card can be downloaded
Manual recording at local PC | | Application Programming Interface | ONVIF Profile S and G, SUNAPI (HTTP API) | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10
Mac OS X 10.9, 10.10, 10.11
Plug-in free Webviewer
Supported Browser: Google Chrome 47, MS Edge 20
Plug-in Webviewer
Supported Browser: MS Explore 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Software | Central Management Software (CMS): SmartViewer | | | | Input Voltage | PoE IEEE 802.3af, Class 3, 12 VDC | | Maximum Power Consumption | PoE: 8 W
12 VDC: 7 W | | | | Operating Temperature | -22 to 131°F (-30 to 55°C) | | Operating Humidity | <90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <90% RH | | | | Material | Metal | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions (Ø x H) | Without Sunshield: 2.76 x 9.7" (70 x 246 mm)
With Sunshield: 3.1 x 10.2" (77.6 x 260 | | Weight | 1.65 lb (0.75 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 11.7 x 7.0 x 5.4" |
