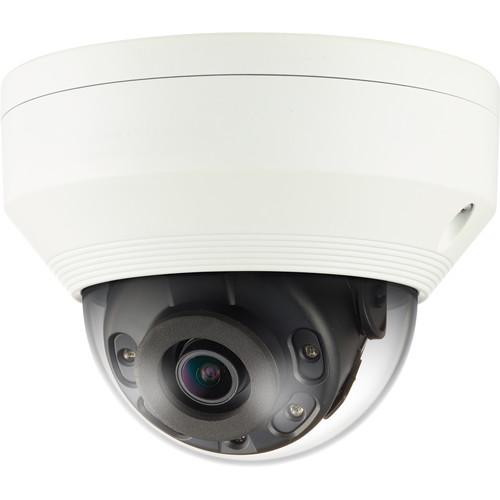

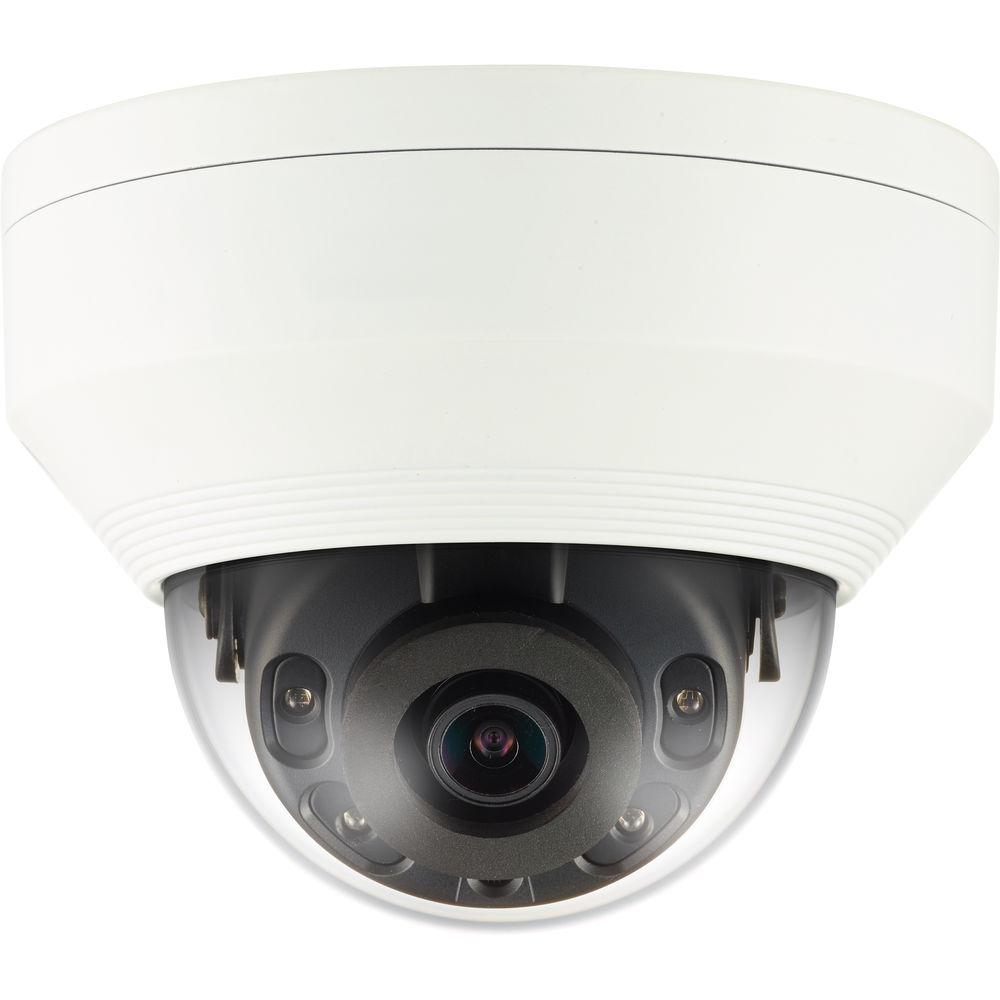

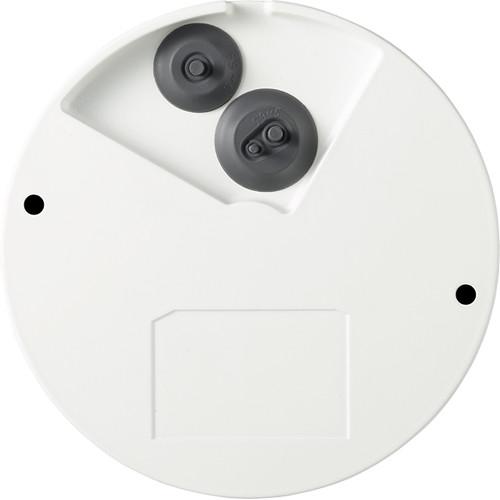

Product description Monitor an outdoor area with the WiseNet Q 4MP Outdoor Vandal-Resistant Network Dome Camera from Samsung. The camera is equipped with a 4MP 1/3" progressive scan CMOS sensor for a resolution of 2720 x 1536 at up to 20 fps. It features a 2.8mm fixed lens with a 111° horizontal field of view to monitor a wide area. A microSD/SDHC/SDXC slot supports cards up to 128GB, which are available for purchase separately.Power over Ethernet simplifies connectivity by delivering power and data transmission over one cable. The camera is ONVIF-compliant for Profile S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66-and IK10-rated metal enclosure suitable for outdoor use. - Lens distortion correction
- Pan range of 0 to 350°, tilt range of 0 to 67°, and rotation range of 0 to 355°
- H.265, H.264, and MJPEG multiple streaming
- Tampering and defocus detection
- Alarm triggers and events
- IP66-rated weather-resistant with IK10 vandal-resistance metal housing
In the Box Hanwha Techwin WiseNet Q 4MP Outdoor Vandal-Resistant Network Dome Camera with 2.8mm Lens & Night Vision Template Power Terminal Block 2 x Machine Screws L Wrench 2 x Tapping Screw Card-Type Moisture Absorbent Power Cable Audio/Alarm Cable Cable Bush 2 x Plastic Anchor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Q 4MP Outdoor Vandal-Resistant Network Dome Camera with 2.8mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QNV-7010R Specs | | | Focal Length (Zoom Ratio) | 2.8mm fixed | | Maximum Aperture Ratio | f/2.0 | | Angular Field of View | Horizontal: 111°
Vertical: 63.0°
Diagonal: 133.0° | | Lens Type | Fixed | | Mount Type | Board type | | | | Imaging Device | 1/3" 4 MP CMOS Sensor | | Total Pixels (H x V) | 2,720 x 1,536 | | Effective Pixels (H x V) | 2,688 x 1,520 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.5 lux
B&W: 0 lux (IR LED on) | | | | Pan / Tilt / Rotate | 0 to 350°/0 to 67°/0 to 355° | | | | IR Range | 65.62' (20 m) | | Camera Title | Off/on (displayed up to 20 characters per line)
W/W: English, Numeric, Special Characters
China: English, Numeric, Special, Chinese Characters
Common: Multi-Line (Maximum 5), Color (Gray/Green/Red/Blue/Black/White), Transparency, Auto scale by resolution | | Day & Night | True day & night | | Backlight Compensation | Off/BLC/WDR | | Wide Dynamic Range | 120 dB | | Digital Noise Reduction | SSNR (off/on) | | Motion Detection | Off/on (4ea polygonal zones) | | Privacy Masking | Off/on (6ea rectangular zones) | | Gain Control | Off, low, middle, high | | White Balance | ATW, AWC, manual, indoor, outdoor | | Lens Distortion Correction | Off/on (5 levels with minimum/maximum) | | Electronic Shutter Speed | Minimum, maximum, anti flicker | | Flip / Mirror | Flip, mirror, hallway view | | Intelligent Video Analytics | Motion detection with metadata, tampering, defocus detection | | Alarm I/O | 1 x Input
1 x Output | | Alarm Triggers | Motion detection, tampering detection, SD card error, NAS error, alarm input, defocus detection | | Alarm Events | File upload via FTP and email, local storage recording at event, notification via email, external output | | Pixel Counter | Support (plug-in viewer only) | | | | Ethernet | 1 x RJ45 (10/100BaseT) | | Video Compression Format | H.265, H.264, MJPEG | | Resolution | 2592 x 1520, 2560 x 1440 (16:9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265/H.264: Maximum 20 fps at 4 MP, 30 fps at under 2 MP
MJPEG: 15 fps | | Smart Codec | WiseStream | | Video Quality Adjustment | H.265/H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to three profiles) | | Audio I/O | 1 x line in | | Audio Compression Format | G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps | | Audio Communication | Uni-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Max. User Access | 6 users in unicast mode | | Storage | microSD/SDHC/SDXC (Maximum 128 GB), NAS
Motion images recorded in the SD memory card can be downloaded
Manual recording at local PC | | Application Programming Interface | ONVIF Profile S/G, SUNAPI (HTTP API) | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in free Webviewer
Supported Browser: Google Chrome 47, MS Edge 20
Plug-in Webviewer
Supported Browser: MS Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Management Software | Central: SmartViewer | | | | Input Voltage | PoE (IEEE 802.3af, Class3) / 12 VDC | | Power Consumption | Maximum 7 W (PoE), Maximum 5.8 W (12 VDC) | | | | Operating Temperature / Humidity | -22 to 131°F (-30 to 55°C) / Less than 90% RH | | Storage Temperature / Humidity | -22 to 140°F (-30 to 60°C) / Less than 90% RH | | | | Material | Metal | | Dimensions (Ø x H) | 4.74 x 3.61" (120 x 91.7 mm) | | Weight | 1.08 lb (0.49 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 6.4 x 6.4 x 5.2" |
