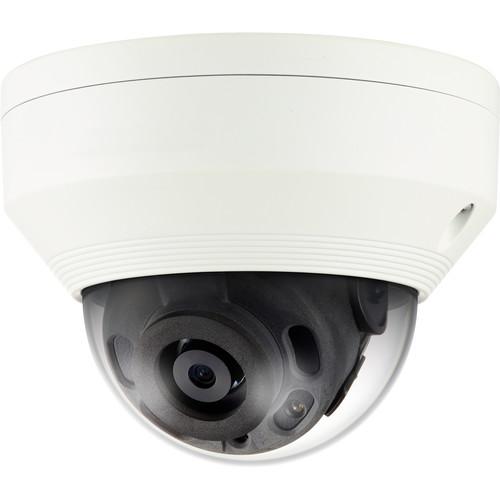

Product description The WiseNet Q Series 2MP Outdoor Vandal-Resistant Network Dome Camera from Samsung Techwin has a 1/2.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. A mechanical IR cut filter and built-in IR LEDs around the lens allow the camera to produce clear images of objects up to 82' away. Its 3.6mm has a 102.44° diagonal field of view to monitor outdoor areas. The camera features an alarm input and output for added functionality, as well as one-way audio communication. It is housed in an IP66- and IK10-rated enclosure, making it suitable for use outdoors and in high-risk areas. - 1/2.9" progressive scan CMOS sensor captures 2MP video at up to 30 fps
- 3.6mm fixed lens has a 102.44° diagonal field of view
- IR LEDs for night vision up to 82'
- Lens distortion correction
- H.265, H.264, and MJPEG compression formats with multiple streams
- Motion, tampering, and defocus detection
- IP66- and IK10-rated for protection against dust, water, and impact
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Q Series 2MP Outdoor Vandal-Resistant Network Dome Camera with 3.6mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QNV-6020R Specs | | | Image Sensor | 2.19 MP 1/2.9" progressive scan CMOS sensor | | Total Pixels (H x V) | 2000 x 1121 | | Effective Pixels (H x V) | 1984 x 1105 | | Minimum Illumination | Color: 0.15 lux
B&W: 0 lux with IR LEDs on | | | | Focal Length | 3.6mm | | Maximum Aperture Ratio | f/1.8 | | Field of View | Horizontal: 86.48°
Vertical: 46.22°
Diagonal: 102.44° | | Lens Type | Fixed | | Mount Type | Board type | | | | IR Range | Up to 82' (25 m) | | Camera Title | On, off (up to 20 characters per line)
Worldwide: English, numeric, special characters
China: English, numeric, special, Chinese characters
Common: Multi-line (maximum 5), color (gray, green, red, blue, black, white), transparency, auto scale by resolution | | Day/Night | Mechanical IR cut filter | | Backlight Compensation | Off, BLC, WDR | | Wide Dynamic Range | Up to 120 dB | | Digital Noise Reduction | SSNR (off, on) | | Motion Detection | Off, on (4 polygonal zones) | | Privacy Masking | Off, on (6 rectangular zones) | | Gain Control | Off, low, middle, high | | White Balance | ATW, AWC, manual, indoor, outdoor | | Lens Distortion Correction | Off, on (5 levels with minimum/maximum) | | Electronic Shutter Speed | Minimum, maximum, anti-flicker | | Flip / Mirror | Flip, mirror, hallway view | | Intelligent Video Analytics | Motion detection with metadata, tampering, defocus detection | | Alarm | 1 x input and 1 x output | | Alarm Triggers | Motion detection, tampering detection, SD card error, NAS error, alarm input, defocus detection | | Alarm Events | File upload via FTP and email, local storage recording at event, notification via email, external output | | Pixel Counter | Supported (plug-in viewer only) | | | | Ethernet | RJ45 10/100Base-T Ethernet | | Video Compression Format | H.265, H.264, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265/H.264: Up to 30 fps at all resolutions
MJPEG: Up to 15 fps at all resolutions | | Smart Codec | WiseStream | | Video Quality Adjustment | H.265/H.264: Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | | Streaming Capability | Multiple streaming (up to three profiles) | | Audio | Line-in | | Audio Compression Format | G.711 u-law and G.726 selectable
G.726 (ADPCM): 8 kHz
G.711: 8 kHz
G.726: 16, 24, 32, 40 kbps | | Audio Communication | One-way audio | | Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication, IP address filtering, user access log, 802.1x authentication | | Streaming Method | Unicast, multicast | | Max. User Access | 6 users at unicast mode | | Memory Card Support | microSD/SDHC/SDXC up to 128 GB (available separately)
Recordings to the memory card can be downloaded | | Storage | NAS
Manual recording at local computer | | Application Programming Interface | ONVIF Profile S and G, SUNAPI (HTTP API) | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | OS Compatibility | Windows 7, 8.1, 10
Mac OS X 10.9, 10.10, 10.11 | | Web Browser Support | Google Chrome 47, MS Edge 20, Microsoft Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | CMS | SmartViewer | | | | Input Voltage | 12 VDC
PoE (IEEE 802.3af, Class 3) | | Maximum Power Consumption | PoE: 6.8 W 12 VDC: 5.7 W | | | | Operating Temperature | -22 to 131°F (-30 to 55°C)
Start Up: Above -4°F (-20°C) | | Operating Humidity | <90% RH | | Storage Temperature / Humidity | -22 to 140°F (-30 to 60°C) | | Storage Humidity | <90% RH | | IP Rating | IP66 | | IK Rating | IK10 | | Ingress protection | IP66 | | | | Material | Metal | | Dimensions | 4.7 x 3.6" (120 x 92 mm) | | Weight | 1.1 lb (0.5 kg) |
