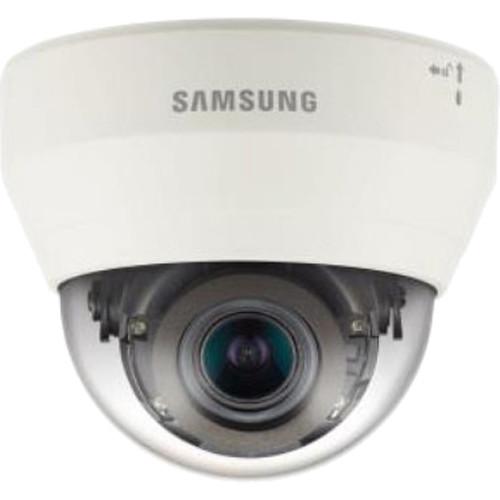

User Manual for Hanwha Techwin WiseNet Q Series QND-6070R 2MP Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Q Series QND-6070R
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet Q Series QND-6070R contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The ivory WiseNet Q Series QND-6070R 2MP Network Dome Camera from Hanwha Techwin uses a 1/2.9" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 65' of night vision. The 2.8-12mm varifocal lens delivers a 103.8 to 32.4° horizontal field of view. This camera is equipped with a built-in microphone. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. - IR cut filter for day and night functionality
- H.265, H.264, and MJPEG video compressions
- Unicast and multicast streaming
- Up to six users in unicast mode
- Lens distortion correction
- Electronic shutter speed (minimum, maximum, and anti-flicker)
- Camera pivots from 0 to 350° horizontally and from 0 to 67° vertically
- 120 dB wide dynamic range
- White balance modes include ATW, AWC, manual, indoor, and outdoor
- SSNR digital noise reduction
- Motion detection for 4 polygonal zones
- Privacy masking for 6 rectangular zones
- Flip, mirror, and hallway view (90 and 270° rotation)
- Alarm triggers include motion detection, tampering detection, microSD card error, NAS error, alarm input, and defocus detection
- Alarm events include file upload via FTP and email, local storage recording at event, notification via email, and external output
- Compatible with Windows 7, 8.1 & 10, Mac OS X 10.9, 10.10 & 10.11, Chrome 47, Microsoft Edge 20, Internet Explorer 11, Firefox 43, Safari 9 (Mac OS X only), and SmartViewer
- Camera title settings in English and Chinese
- FCC, cUL, CE, and EAC certified
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Q Series QND-6070R 2MP Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QND-6070R Specs | | | Sensor | 2 MP 1/2.9" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 103.8 to 32.4°
Vertical: 53.7 to 18.4°
Diagonal: 121.9 to 37.1° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.095 Lux
B&W: 0 Lux | | Camera Angle Adjustment | Horizontal: 0 to 350°
Vertical: 0 to 67° | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Single | | Audio Formats | G.711, G.726 | | Built-In Mic | Yes | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, SUNAPI (HTTP API) | | Analytics | Motion Detection with Metadata
Tampering
Defocus Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | Pixel Counter | | | | Windows OS Support | Windows 7, 8.1, 10 | | Mac OS Support | OS X 10.11, OS X 10.10, OS X 10.9 | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 65.62' / 20 m | | Video Management Software | SmartViewer | | Supported Languages | Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Turkish | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 5.5 W
PoE: 6.7 W | | Material of Construction | Plastic | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 90% | | Dimensions |
