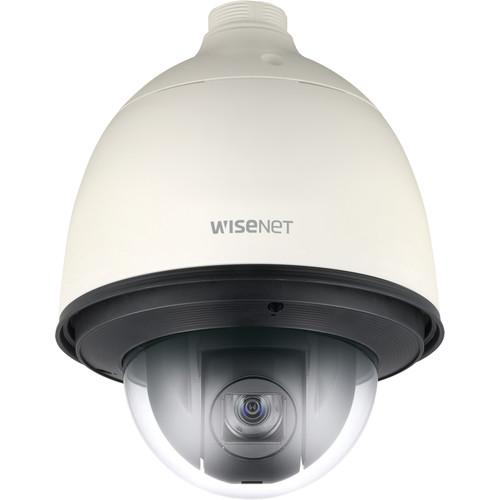

User Manual for Hanwha Techwin WiseNet Q Series QNP-6230H 2MP Outdoor PTZ Network Dome Camera with Heater Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Q Series QNP-6230H
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet Q Series QNP-6230H contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Keep a close watch on your property with the WiseNet Q Series QNP-6230H 2MP Outdoor PTZ Network Dome Camera with Heater from Hanwha Techwin. Equipped with a 1/2.8" 2.4MP CMOS sensor and a 4.44-102.2mm varifocal lens, the QNP-6230H captures video at resolutions up to 1920 x 1080 at 30 fps in fields of view ranging from 61.8 x 36.2° to 3.08 x 1.73°. The camera has an automatic IR cut filter and offers image enhancement features including a 120 dB wide dynamic range and automatic white balance for capturing images in varying lighting conditions.
The QNP-6230H has PTZ functionality, with 360° endless pan, 210° tilt, and 23x optical zoom. Audio input and output connections allow for two-way audio communication. Designed for easy setup, the QNP-6230H uses PoE+ technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices. - Up to 2MP (1920 x 1080) resolution
- Built-in 4.44-102.2mm 23x varifocal lens
- Up to 30 fps at all supported resolutions (H.265/H.264)
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Automatic IR cut filter for day and night vision
- 120 dB wide dynamic range
- Digital image stabilization with built-in gyro sensor
- Intelligent video analytics including tamper and motion detection
- microSD/SDHC/SDXC memory card slot for edge storage supports up to 256GB (microSD/SDHC/SDXC cards available separately)
- PoE+ technology for easy, clutter-free installation
- Integrated heater for operation in temperatures down to -58°F (camera must be on AC power to run heater)
- IP66 rated for outdoor use
- IK10-rated vandal resistance
In the Box Hanwha Techwin WiseNet Q Series QNP-6230H 2MP Outdoor PTZ Network Dome Camera with Heater Software CD Cable for Testing Monitor Hex Wrench 3 x Hexagon Screws Installation Base Waterproofing Accessory Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Q Series QNP-6230H 2MP Outdoor PTZ Network Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QNP-6230H Specs | | | Sensor | 2.4 MP 1/2.8" CMOS | | Focal Length | 4.44 to 102.2mm | | Maximum Aperture | f/1.6 - f/3.6 | | Zoom | Optical: 23x
Digital: 32x | | Lens Field of View | Horizontal: 61.8 to 3.08°
Vertical: 36.2 to 1.73° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.2 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/12,000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | | | Streaming | Two-Way | | Audio Formats | AAC, ADPCM, G.711, G.726 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | SUNAPI 2.0 (HTTP API) | | Analytics | Tamper Detection and Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8.1, 10 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | Programmed Pan: 360° at 500°/s
Manual Pan: 360° at 200°/s
Programmed Tilt: 210° at 500°/s
Manual Tilt: 210° at 200°/s | | Alarm I/O | 4 / 2 | | I/O Connections | 1 x RJ45
1 x Power
1 x 4-Pin Terminal Block (RS-485) | | Video Management Software | SmartViewer, SSM | | Supported Languages | Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese
Turkish | | Certifications | UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | 24 W
AC: 65 W (With Heater) | | Material of Construction | Plastic, Metal (Unspecified Type) | | Operating Temperature | -58 to 131°F / -50 to 55°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 89% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
