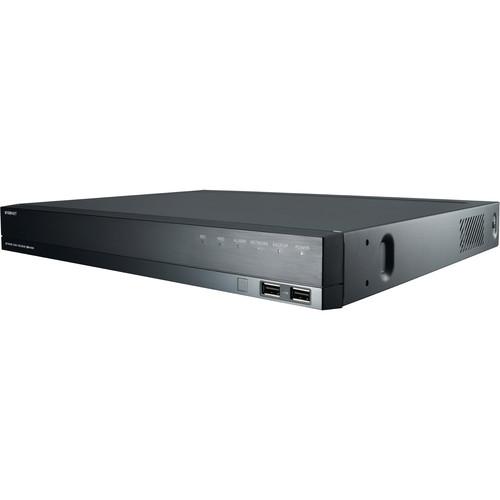

User Manual for Hanwha Techwin WiseNet Q Series QRN-1610S 16-Channel 8MP PoE NVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet Q Series QRN-1610S
- Product category: Network Video Recorders (NVRs) Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Network Video Recorders (NVRs)
|
User manual for the Hanwha Techwin WiseNet Q Series QRN-1610S contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Stream and record up to 16 video channels with the WiseNet Q Series QRN-1610S PoE NVR from Hanwha Techwin at resolutions of up to 8MP. Equipped with two SATA ports, each supporting an HDD up to 6TB, this NVR can accommodate up to 12TB of HDD storage (4TB preinstalled). Sixteen PoE ports and a built-in PoE switch provide power and video connection to network cameras, simplifying setup. The recorder uses H.264, H.265, and MJPEG compression to keep file sizes manageable while upholding recording and playback quality.
The NVR's interface provides ports for two-way audio communication as well as HDMI and VGA connections for video output. The HDMI connection can output up to 4K UHD resolution video. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Up to 16 channels at up to 8MP resolution
- H.265, H.264, and MJPEG video compression
- Up to 128 Mb/s recording bandwidth
- 16 x plug-and-play PoE ports
- HDMI and VGA local monitor outputs
- P2P service support (QR code connect)
In the Box Hanwha Techwin WiseNet Q Series QRN-1610S 16-Channel 8MP PoE NVR with 4TB HDD Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet Q Series QRN-1610S 16-Channel 8MP PoE NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin QRN-1610S Specs | | | Video Inputs | Up to 16 channels | | Video Resolution | CIF to 8 MP | | Protocols | Wisenet, ONVIF Profile S | | Local Display | HDMI/VGA | | Multi-Screen Display | Local Monitor: 1, 2H, 2V, 3V, 4, 6, 8, 9, 13, 16, Auto Sequence
Web: 1, 4, 9, 16, Auto Sequence | | Resolution | Live Local Monitor Performance:
8 MP at 60 fps
5 MP at 90 fps
3 MP at 120 fps
2 MP at 240 fps
720p at 480 fps
D1 at 480 fps | | | | Compression | H.265, H.264, MJPEG | | Bandwidth | Recording: Up to 128 Mb/s | | Recording Resolution | CIF to 8 MP | | Recording Modes | Manual, Schedule (Continuous/Event), Event (Pre/Post) | | Event Triggers | 4 x Alarm Inputs, Video Loss, Camera Event (Sensor, Motion Detection, Video Analytics, Defocus) | | Event Actions | Email, PTZ Preset, Alarm Out, Buzzer, Monitor Out | | | | Bandwidth | 32 Mb/s (8 Channels Simultaneously) | | Number of Simultaneous Users | 3 (1 Local, 3 Remote) | | Search Modes | Date & Time (Calendar), Event Log List, Text Search (POS), ARB Search, Smart Search (Virtual Line with Direction, Enter/Exit) | | Playback Capability | Local: Up to 8 Channels
Network: Up to 16 Channels | | Resolution | CIF to 8 MP | | Playback Control | Fast/Slow Forward or Backward, Move One Step Up/Down | | | | HDD Capacity | 2 x HDD Bays, Up to 6 TB per HDD
4 TB Preinstalled | | | | File Formats | Backup/Executable File (USB), JPG/AVI (Web, CMS) | | Built-in Backup Functions | Multi-Channel Play (Up to 16 Channels), Date-Time/Title Display | | | | I/O | 4 x Inputs
2 x Outputs (NO, NO/NC) | | | | I/O | 16-Channel Input (Network)
1 x RCA Line Output | | Audio Compression | G.711, G.726, AAC (16/48 kHz) | | Audio Communication | 2-Way | | | | Protocols | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client) | | DDNS | Hanwha DDNS | | Bandwidth | 128 Mb/s | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | IP | IPv4, IPv6 | | Security | User Access Log, IP Address Filtering, 802.1x Authentication, Encryption | | Languages | GUI/Web: English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, and Thai | | OS Supported | Windows 7, 8, 10
Mac OS X 10.9, 10.10, 10.11 | | Supported Web Browsers | Non-Plugin Webviewer: Google Chrome 47, Microsoft Edge 20
Plugin Webviewer: Microsoft Internet Explorer 11, Apple Safari 9 (Mac OS X only) | | Viewer | Software Type: SSM, Webviewer, SmartViewer, Wisenet Mobile
CMS Support: SDK/CGI (SUNAPI) | | | | Camera Setup | Register: PnP, Manual Mode
Setup Items: IP Address, Add Profile Edit, Bitrate, Compression, GOP, Quality, Camera Motion Detection Setup, Camera Video Setup (Simple Focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Setup, Hallway View Setup, Camera Webpage | | PoE Camera Control | Monitor PoE Power Consumption, On/Off Control for Each PoE Camera, Remote Reset for Each PoE Camera | | Configuration | Setup Wizard (Date/Time, Network, Auto Camera Configuration), P2P (QR Code) | | ARB | Yes | | PTZ Control | Via GUI, Webviewer
255 Presets | | Mobile OS Support | OS: iOS and Android
Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
Live 16-Channel Control: Multi-Profile Support, Playback (4 Channels), Event Push
Maximum Remote Users: 3 Search, 10 Live Unicast, 20 Live Multicast | | System Control | Mouse, IR Remote Control, Web | | | | Indicator LEDs | 6 x LEDs: HDD Status, Alarm, Power, Record, Backup, Network | | Interface Ports | 1 x VGA Video Output (1920 x 1080, 1280 x 720)
1 x HDMI Video Output (3840 x 2160, 1920 x 1080, 1280 x 720)
1 x RCA Audio Line Output
16 x 100 Mb/s PoE Ports 1 x 1 Gb/s WAN Port (Uplink to CMS)
4 x Alarm Inputs (Terminal Block)
2 x Alarm Outputs (Terminal Block)
2 x USB 2.0, Front
1 x USB 3.0, Rear
1 x Reset Switch
1 x VDC Power | | | | Log List | Up to 20,000 for Each System/Event Log | | | | Certifications and Compliance | FCC, UL, CE, EAC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20-85% RH | | | | Input Voltage | 100 to 240 VAC ±10% | | Maximum Power Consumption | With 2 x HDDs, PoE On: 158.2 W
With 2 x HDDs, PoE Off: 34.6 W | | PoE Budget | 100 W | | | | Housing Material | Metal | | Rack Height | 1 RU | | Dimensions | 14.56 x 1.73 x 12.59" / 37.0 x 4.4 x 32.0 cm | | Weight | 6.15 lb / 2.79 kg, Without HDDs |
