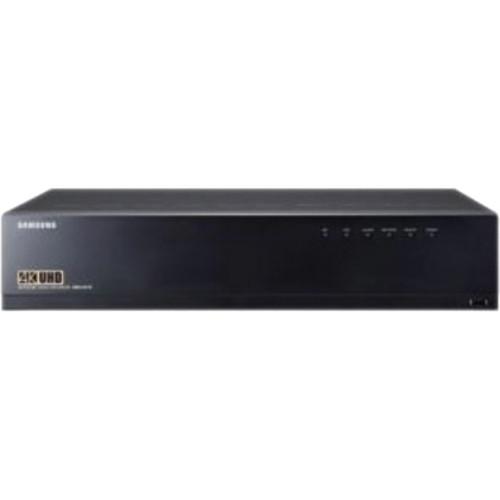

User Manual for Hanwha Techwin WiseNet X 32-Channel Network Video Recorder Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet X 32-Channel Network
- Product category: Network Video Recorders (NVRs) Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Network Video Recorders (NVRs)
|
User manual for the Hanwha Techwin WiseNet X 32-Channel Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The black WiseNet X 32-Channel Network Video Recorder from Samsung supports 12MP cameras and records at 256 Mb/s. It is equipped with an e-SATA drive supporting up to a 48TB HDD. With an HDMI and VGA port, the NVR outputs 4K video to an HDMI monitor (sold separately) for surveillance monitoring. Video is compressed using H.265, H.264, and MJPEG codecs. -
- Up to 32 channels
- Maximum 12MP camera supported
- 256 Mb/s network camera recording
- Supports 4K video out to an HDMI monitor
- Supports dual monitor video out
- Support H.265, H.264, MJPEG compression
- WiseStream compression technology
- e-SATA / iSCSI storage support
- ARB & failover (N+1) support
UPC: 849688007211 In the Box Hanwha Techwin WiseNet X 32-Channel Network Video Recorder (48TB) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X 32-Channel Network Video Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XRN-2010 Specs | | | Channels | Up to 32 channels | | Resolution | CIF to 12 MP (Recording, Display, Playback) | | Protocol | Samsung, ONVIF | | Local Display | 1x HDMI, 1x VGA dual monitor | | Multi-Screen Display | Local Monitor: 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence
Web: 1 / 4 / 9 / 16 / 25 / 36 / Sequence | | Performance | Local Monitor Display: 12 MP (30 fps), 8.3 MP (120 fps), 1080p (480 fps), 720p (960 fps), D1 (960 fps) | | | | Operating System | Embedded Linux | | Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) | | Bandwidth | Recording: Maximum 256 Mb/s
Playback: 32 Mb/s (16 Channels simultaneously)
Transmission: 512 Mb/s (iSCSI off), 256 Mb/s (iSCSI on) | | Mode | Normal, Schedule (Continuous / Event), Event (Pre / Post) | | Event Trigger | Alarm input, video loss, camera event (sensor, MD, video analytics) | | Event Action | Email, PTZ preset, alarm out, buzzer, monitor out | | Mode | Date & Time (Calendar) / Event log list / Text search | | Max Simultaneous Playback | 16 channels (local monitor, CMS) | | Fisheye Dewarp Mode | Web / CMS | | Playback Control | Fast/Slow Forward/Backward, Move one step up/down | | Internal HDD | 48 TB / 8 | | External | iSCSI storage (Maximum 384 TB), Promise VessRaid R2600 | | Backup | BU/Exe (GUI), JPG/AVI (Network) | | Function | Multi-channel (Up to 16 channels) play, Date-time/title display | | Input/Output | 8 / 4 (NO/NC selectable) | | Input | 32 channels (Network) | | Compression | G.711, G.726, AAC (16/48 kHz) | | Audio Compression | 2-way | | | | Interface | RJ45, Gigabit Ethernet x 2 | | Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client) | | DDNS | iPOLiS DDNS | | Remote Network Connections | Search 3 / Live unicast 10 / Live multicast 20 | | IP | IPv4 / IPv6 | | Security | IP address filtering, User access log, 802.1x authentication, encryption | | Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | | OS | Window 7, 8, 10, Mac OS X (10.8 or above) | | Web Browser | Microsoft IE, Google Chrome, Mac Safari, Mozilla Firefox | | Software | Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
CMS Support: SDK / CGI (SUNAPI) | | | | Register | Auto, Manual | | Camera Setup Program | IP address, add profile edit, bit rate, compression, GOP, quality, camera MD setup, camera video setup (simple focus, brightness/ contrast, flip/mirror, IRIS, WDR, D&N, SSNR, shutter, SSDR, DIS), fisheye dewarping mode, hallway view setup, camera webpage | | Presets | Via GUI, Webviewer, SPC-2000 / 255 presets | | Mobile OS Support | Android, iOS | | Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) | | Control | Live (16 Channels) : Multi-profile support, Playback (1 channel) | | Max. Remote Users | Search 3 / Live unicast 10 | | Disaster Recovery/Site Failover | N + 1 / Yes | | System Control | Mouse, Web, SPC-2000 (Controller) | | | | Indicator Control | LED (Status Indicator): 6 each
HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network 1 | | HDMI | Main: 1 each (Both support Live / PB / Setup)
Support up to 4K (3840 x 2160, Single monitor mode) | | VGA | Sub: 1 each (Supports live screen up to 16 div. mode) | | Audio | Out 1 each (RCA, Line) | | Ethernet | RJ45 2 each (LAN/WAN, 1 Gb/s) | | Alarm | In 8 each (Terminal block), Alarm reset 1 each
Out 4 each (Terminal block) - Relay out1 (NO/NC/COM) - Relay out 2 to 4 (NO/COM) | | USB | 2 each (Front 1, Rear 1) | | Storage | 1 x e-SATA | | Serial | RS-232C / Switch 1 each | | Power Cord | 1 each AC Inlet | | | | Log | Maximum 20,000 (System log, event log each) | | Input Current | 100 to 240 VAC ±10%, 50/60 Hz / 4 to 1.5 A | | Power Consumption | Maximum 99 W (338BTU, 6 TB HDD x 8 each) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 85% RH | | Dimensions | 17 x 3.5 x 15" (44 x 8.8 x 39 cm) (2U) | | Weight | 10.7 lb (4.86 kg) without HDD |
