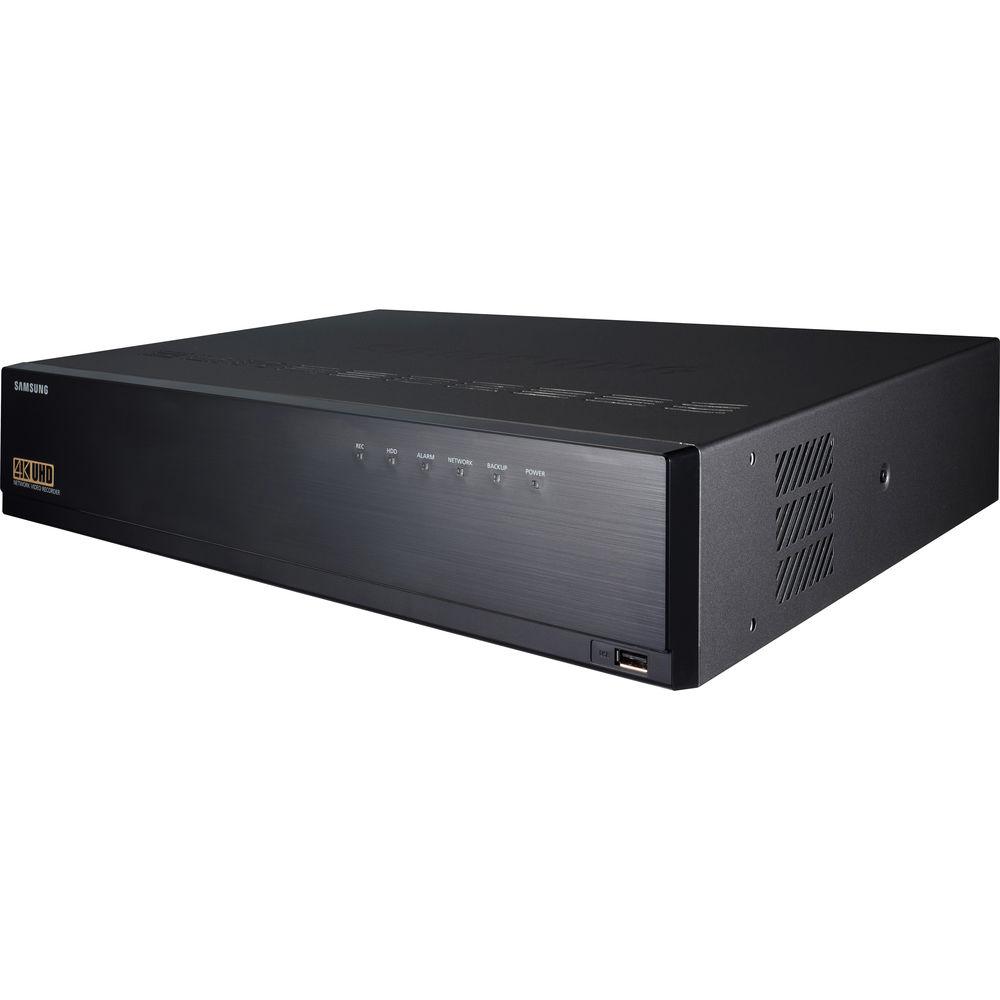

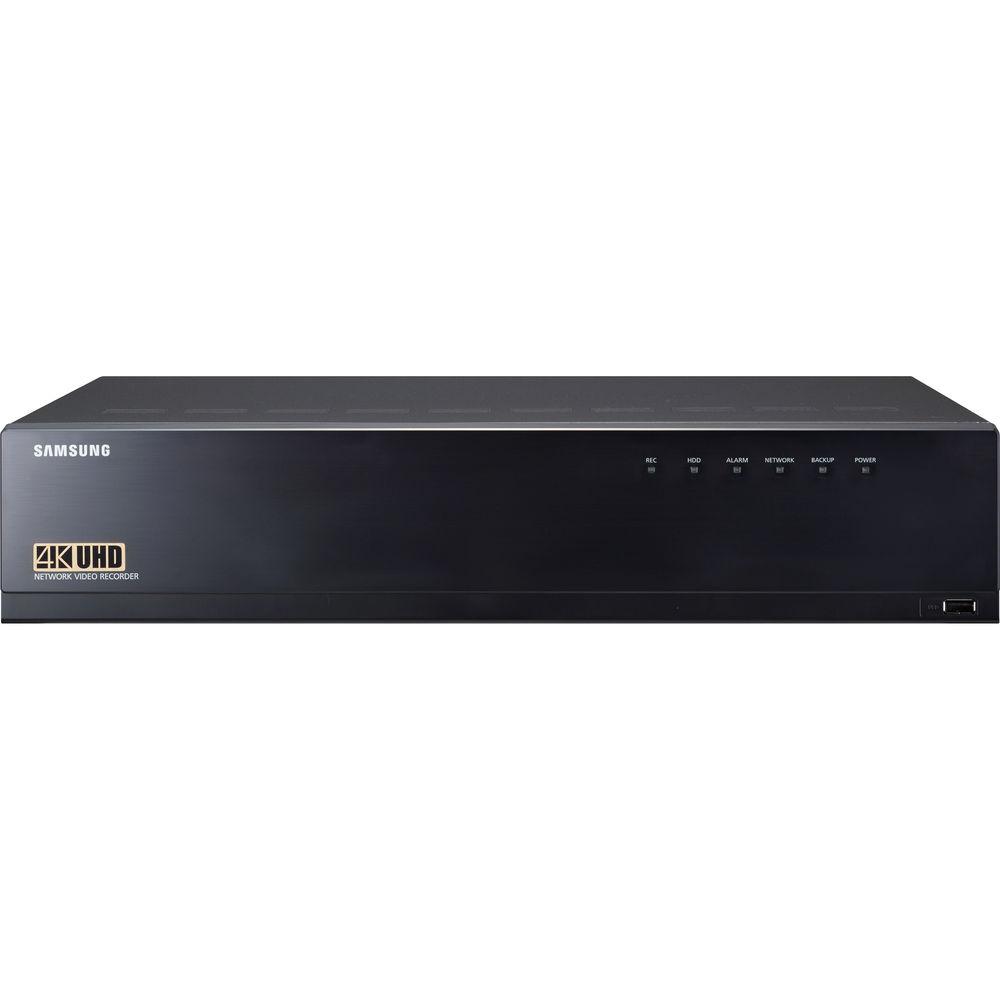

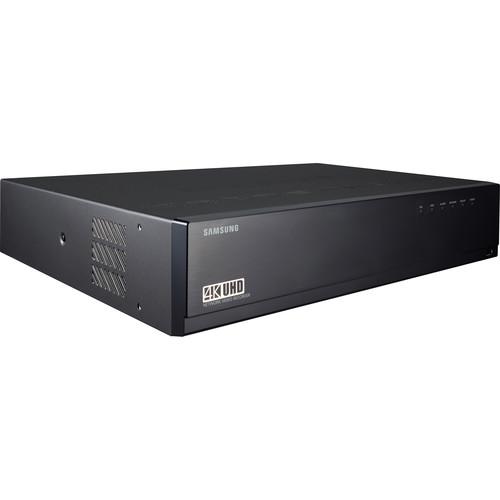

Product description The black 20TB WiseNet 64-Channel Network Video Recorder from Samsung supports 12MP cameras and records at 300 Mb/s. It is equipped with an e-SATA drive supporting up to a 20TB HDD. With an HDMI and VGA port, the NVR outputs 4K video to an HDMI monitor for surveillance monitoring. Video is compressed using H.265, H.264, and MJPEG codecs. -
- Up to 64-channel, maximum 12MP camera supported
- Maximum 300 Mb/s network camera recording
- Support 4K video output on HDMI monitor
- Support dual monitor video output
- Support H.265, H.264, MJPEG compression
- WiseStream compression
- Maximum 8 internal HDDs (64TB), e-SATA storage support
- ARB & failover (N+1) support
In the Box Hanwha Techwin WiseNet X 64-Channel Network Video Recorder with 20TB HDD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X 64-Channel Network Video Recorder with 20TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XRN Series Specs | | | Video | Inputs: Up to 64 channels
Resolution: CIF to 12 MP
Protocols: Samsung, ONVIF | | Live | Local Display: 1 x HDMI, 1 x VGA dual monitor
Multi Screen Display on Local Monitor: 1/2V/3V/4/9/16/25/36/Sequence
Multi Screen Display on Web: 1/4/9/16/25/36/Sequence
Performance: Local monitor 12 MP (30 fps), 8.3 MP (120 fps), 1080p (480 fps), 720p (960 fps), D1 (1560 fps) | | | | Operating System | Embedded: Linux
Compression: H.265, H.264, MJPEG, WiseStream (H.265, H.264) | | Recording | Bandwidth: 300 Mb/s maximum | | Resolution | CIF to 12 MP | | Mode | Normal, schedule (continuous/event), event (pre/post) | | Event Trigger | 8 x alarm inputs, video loss, camera event (sensor, MD, video analytics, defocus) | | Event Action | Email, PTZ preset, alarm out, buzzer, monitor out | | Search & Playback | Playback Bandwidth: 32 Mb/s (16 channels simultaneously)
Performance: Maximum 4 users (1 x local, 3 x remote)
Mode: Date & time (calendar) / event log list / text search / ARB search / Smart search (virtual line with direction, Enter/Exit)
Simultaneous Playback: Maximum 16 channels (local monitor, CMS)
Resolution: CIF to 12 MP
Fish-Eye Dewarping: Web/CMS
Playback Control: Fast/slow forward/backward, move one step up/down | | Storage | Default Built-In: 0 to 8 TB
Internal HDD: 8 x maximum 64 TB | | Storage Capacity | 20 TB | | Backup | File Backup (Via Web): BU/EXE (GUI), JPEG/AVI (network)
Function: Multi-channel (Up to 16 channels) play, date-time/title display | | Sensor | Input/Output: 8/4 (NO/NC selectable) | | Audio | Compression: G.711, G.726, AAC (16/48 kHz)
Audio Communication: 2-way | | | | Interface | RJ45, 2 x Gigabit Ethernet | | Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client) | | DDNS | Hanwha security DDNS | | Transmission | 512 Mb/s | | Number of Remote Users Supported | Search 3 / Live unicast 10 / Live multicast 20 | | IP | IPv4 / IPv6 | | Security | IP address filtering, User access log, 802.1x authentication, Encryption | | Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | | OS | Window 7, 8, 10, Mac OS X (10.8 or above) | | Web Browser | MS IE, Google Chrome, Mac Safari, Firefox | | Software Type | SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
CMS Support: SDK/CGI (SUNAPI) | | | | Camera Setup | Register: Auto, Manual
Setup Items: P address, Add profile edit, Bit rate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/ Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping mode, Hallway view setup, Camera webpage | | PTZ | Via GUI, Webviewer, SPC-2000 / 255 presets | | Smartphone Compatibility | Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
Control:
Live (16 Channels) : Multi-profile support, Playback (1 channel)
Maximum Remote Users: 3 x Search / 10 x Live unicast / 20 x Live multicast | | Redundancy | Failover/ARB: N + 1 (Include fail-back) / Yes | | System Control | Mouse, Web, SPC-2000 (Controller) | | | | Front | Indicator: 6 x LEDs
1 x HDD action, 1 x alarm, 1 x power, 1 x record, 1 x backup, 1 x network | | Connections | VGA:
Sub : 1 x (supports live screen up to 16 div. mode)
Main: 1 x (both support Live / PB / setup)
Supports up to 4K (3840 x 2160, single monitor mode)
Audio: 1 x out (RCA, Line)

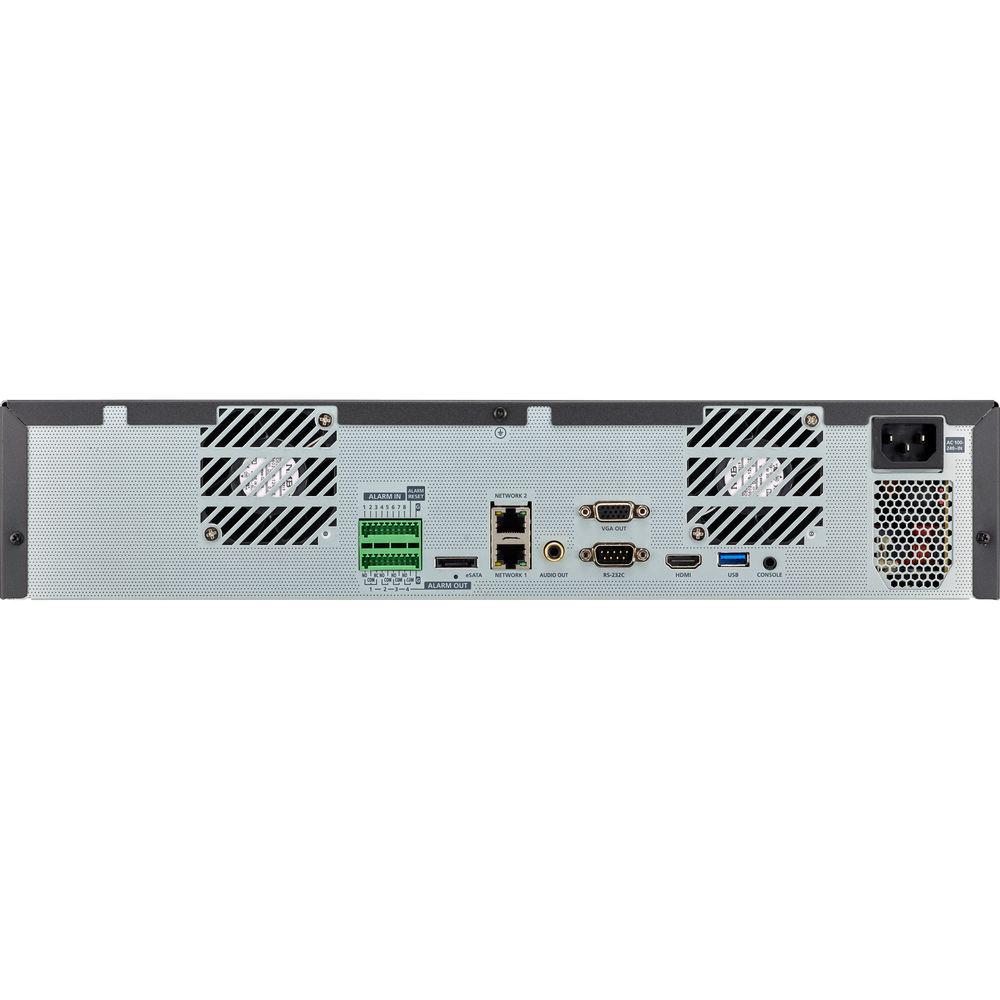

Ethernet: 2 x RJ45 (LAN/WAN, 1 Gb/s)
Alarm: 8 x in (terminal block), alarm reset 1
4 x out (terminal block) - Relay out 1 x (NO/NC/COM) - Relay out 2 to 4 (NO/COM)
USB: 2 x (front, rear)
Storage: e-SATA | | Reset | RS-232C/switch | | Power Cord | 1 x AC input | | | | Log | Maximum 20,000 (system log, event log each) | | | | Electrical | Input Voltage/Current: 100 to 240 VAC 10%, 50/60Hz / 4 to 1.5 A
Power Consumption: Maximum 99 W (338BTU, 8 x 8 TB HDD) | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: 20 to 85% RH | | Finish | Metal | | Dimensions | 17.32 x 3.46 x 15.15" / 440.0 x 88.0 x 384.8 mm (2U) | | Weight | 10.71 lb / 4.86 kg without HDD |
