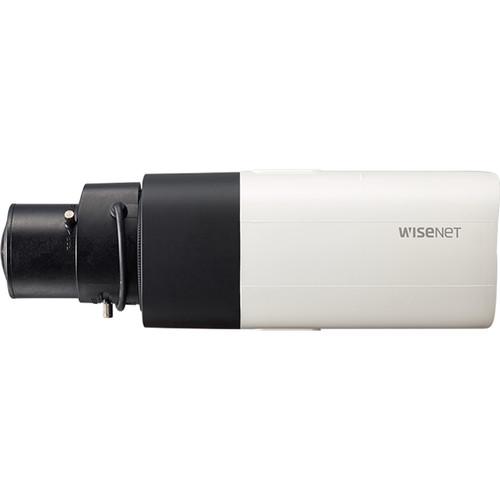

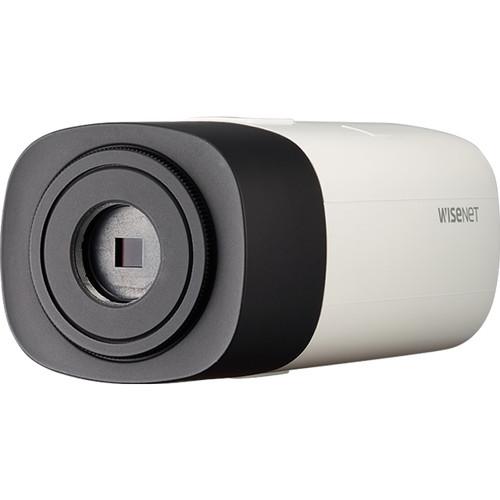

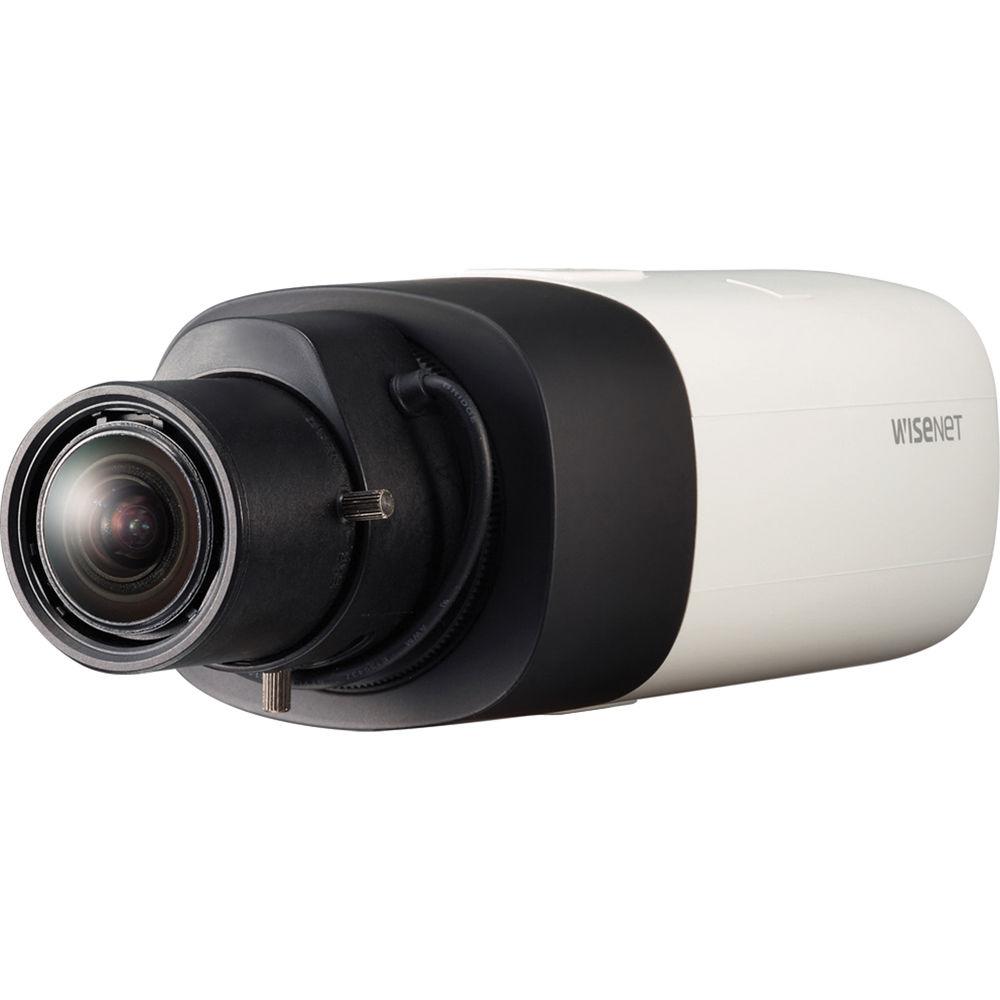

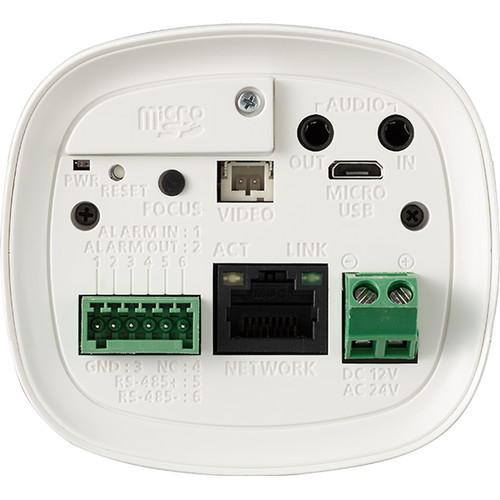

Product description The black/ivory WiseNet X Series 2MP Network Box Camera (No Lens) from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor for capturing images at a maximum resolution of 1920 x 1080. It features digital image stabilization with a built-in gyro sensor and 2 SD/SDHC/SDXC memory card slots that accept cards up to 512GB. The camera also supports a host of video and audio analytics functions such as Tampering, Loitering, Audio, Face, and Motion detection as well as Digital auto tracking, and Sound classification. - Up to 2MP, 1920 x 1080 resolution
- Frame rates up to 60 fps at all resolutions
- H.265, H.264, and MJPEG codecs supported with multiple streaming
- Day / night (ICR) functionality
- WDR (150 dB), P-Iris, and Defog
- Motion, Loitering, Directional, Fog, and Audio detection, as well as Digital auto tracking, Sound classification, and Tampering
- Hallway view and WiseStream II support
- LDC (Lens Distortion Correction) support
- Can be powered via PoE or a 24 VAC power source
- Bi-directional audio support
In the Box Hanwha Techwin WiseNet X Series 2MP Network Box Camera (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series 2MP Network Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet X Specs | | | Imaging Device | 1/2.8" 2 MP CMOS | | Total Pixels (H x V) | 1945 x 1109 2.16 MP | | Effective Pixels (H x V) | 1945 x 1097, 2.13 MP | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.01 lux (f/1.2, 1/30 sec)
B&W: 0.001 lux (f/1.2, 1/30 sec) | | S/N Ratio | 50 dB | | Video Out | CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: Micro-USB type-B, 1280 x 720 for installation | | | | Focus Control | Simple focus / Manual, Remote control via network, Button control (Manual, Simple focus) | | Lens Type | Manual / DC auto iris, P-Iris | | Mount Type | C / CS | | | | Camera Title | Off / On (Displayed up to 85 characters)
W/W: English / Numeric / Special characters
China: English / Numeric / Special / Chinese characters
Common: Multi-line (maximum 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR | | Wide Dynamic Range | 150 dB | | Contrast Enhancement | SSDR (Off / On) | | Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) | | Image Stabilization | Digital: Off / On (built-in Gyro sensor) | | Defog | Off / Auto (input from fog detection) / Manual | | Motion Detection | Off / On (8 x 8-point polygonal zones), Handover | | Privacy Masking | Off / On (32, Polygonal)
Color: Gray / Green / Red / Blue / Black / White, Mosaic | | Gain Control | Off / Low / Middle / High / Manual | | White Balance | ATW / AWC / Manual / Indoor / Outdoor (included mercury and sodium) | | Contrast | Level adjustment | | Lens Distortion Correction | Off / On (5 levels with minimum / maximum) | | Electronic Shutter Speed | Minimum / Maximum / Anti-flicker (2 to 1/12,000 sec) | | Digital PTZ | 24x, Digital PTZ (Preset, Group) | | Flip / Mirror | Off / On, Hallway View: 90/270˚ | | Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification | | Alarm I/O | 1 x input / 1 x output | | Remote Control Interface | RS-485 | | RS-485 Protocol | Samsung-T/E, Pelco P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch | | Alarm Triggers | Alarm input, Motion detection, Video and Audio analytics, Network disconnect | | Alarm Events | File upload via FTP, email, Notification via email, local storage (SD/SDHC/SDXC) or NAS recording at event triggers, external output, DPTZ preset | | Fan & Heater | Off / On / Auto / Schedule via web viewer | | Pixel Counter | Support | | | | Ethernet | RJ45 (10/100Base -T) | | Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265 / H.264: Maximum 60 fps at all resolutions
MJPEG: Maximum 30 fps | | Smart Codec | Manual mode (Area-based: 5) | | Video Quality Adjustment | H.265 / H.264: Target bit rate level control
MJPEG: Target bit rate level control | | Bit Rate Control | H.265 / H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in / Line in), Maximum Output Level: 1 Vrms
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out, Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps, AAC-LC: 48 kbpsat 8/16/32/48 kHz | | Audio Communication | Bi-directional (2-way) | | IP | IPv4, IPv6 | | Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast / Multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | 2 x SD/SDHC/SDXC slots (Up to 512 GB)
Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer: Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9
Mac OS X only
Plugin Webviewer: Supported Browser: MS Explore 11, Apple Safari 9
Mac OS X only | | CMS | SmartViewer, SSM | | | | Operating Temperature / Humidity | 14 to 131°F (-10 to 55°C) / Less than 90% RH | | Storage Temperature / Humidity | -58 to 140°F (-50 to 60°C) / Less than 90% RH | | | | Input Voltage | 24 VAC ±10%, 12 VDC ±10%, PoE (IEEE 802.3af ) | | Power Consumption | Maximum 6.5 W (12 VDC), Maximum 7.5 W (PoE), Maximum 8 W (24 VAC) | | | | Material | Plastic | | Dimensions (W x H x D) | 2.88 x 2.62 x 5.82" (73.1 x 66.6 x 147.8 mm) | | Weight | 0.93 lb (0.42 kg) |
