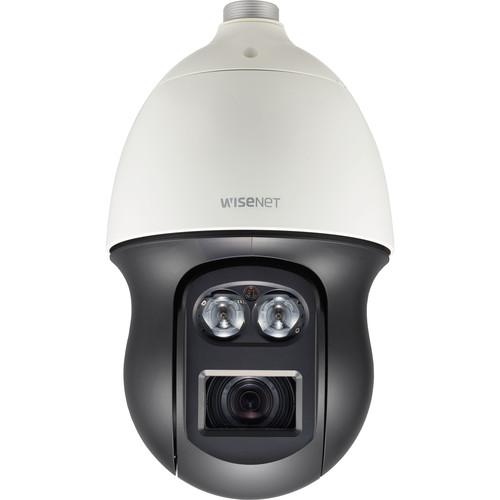

Product description The ivory/black WiseNet X Series 2MP Outdoor Network PTZ Dome Camera from Hanwha Techwin features a 1/1.9" CMOS sensor and 6-222mm varifocal lens. It can capture videos at 1920 x 1080 resolution with a 37x zoom. The camera offers a WDR of up to 120 dB for capturing images under varied lighting conditions. It comes with a built-in microSDXC card slot (up to 128GB, available separately) for on-board storage. With an IK10-rated vandal-resistant and IP66 weatherproof housing, this camera is suitable for outdoor applications. - Maximum 2MP (1920 x 1080) resolution
- Built-in 6-222mm lens with 37x zoom and 16x digital zoom
- H.265 and H.264 MJPEG codec supported with multiple streaming
- Day & night (ICR) function
- Night vision up to 1,148'
- Wide dynamic range of 120 dB
- Built-in auto tracking and intelligent video analytics
- microSDXC memory slot for on-board storage
- Bi-directional audio support
- IP66- and IK10-rated housing
In the Box Hanwha Techwin WiseNet X Series 2MP Outdoor 37x PTZ Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series 2MP Outdoor 37x PTZ Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet X Specs | | | Imaging Device | 1/1.9" 2.42 MP CMOS | | Total Pixels (H x V) | 1952 x 1241 (2.42 MP) | | Effective Pixels (H x V) | 1937 x 1097 (2.12 MP) | | Scanning System | Progressive | | Minimum Illumination | Color: 0.05 lux (1/30 sec, f/1.5)
B&W: 0 lux (IR LED on) | | S/N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p / 75 Ohms composite, 714 x 480 (NTSC), 702 x 576 (PAL), for installation | | | | Focal Length | 6-222mm | | Zoom Ratio | 37x | | Maximum Aperture Ratio | f/1.5 (Wide) to 4.6 (Tele) | | Angular Field of View | Horizontal:
Wide to Tele: 59.3 to 1.9°
Vertical:
Wide to Tele: 35.8 to 1.1° | | Minimum Object Distance | 4.92' (1.5 m) | | Focus Control | Auto Focus (AF) / One-shot AF / Manual | | Mount Type | Board-in type | | Lens Type | DC auto iris | | | | Range | Pan: 360° endless
Tilt: 190° (-5 to 185°) | | Pan Speed | Preset: 400°/sec
Manual: 0.024 to 250°/sec | | Tilt Speed | Preset: 300°/sec
Manual: 0.024 to 250°/sec | | Preset Accuracy | Preset (300), Swing, Group (6), Trace, Tour, Auto run, Schedule / ±0.2° | | Azimuth | Yes (E / W / S / N / NE / SE / NW / SW OSD) | | Auto Tracking | On / Off | | | | IR Range | 1148.29' (350 m) | | Camera Title | On / Off (Displayed up to 60 characters per line)
Supported Characters: English / Numeric / Special characters
Common Features: Multi-line (Maximum 5), Color (Gray / Green / Red / Blue / Black / White), transparency, auto scale by resolution | | Day and Night | Auto (ICR) / Color / B&W | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (On / Off) | | Digital Noise Reduction | SSNR (2D + 3D noise filter) (On / Off) | | Defog | Off / Auto / Manual | | Motion Detection | On / Off (4 x Polygonal zones) | | Privacy Masking | On / Off (16 x Rectangular zones)
Color: Gray / Green / Red / Blue / Black / White
Zoom ratio option for mask mode | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor (including mercury & sodium) | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 to 1/12,000 sec) | | Digital Zoom | 16x, area zoom function support digital zoom 2x | | Flip / Mirror | On / Off | | Intelligent Video Analytics | Tampering, crossing, enter/exit, appear (disappear), audio detection | | Alarm I/O | 4 x input
2 x relay output | | Remote Control Interface | RS-485 / 422 | | RS-485 Protocol | Samsung-T/E, Pelco D/P, Panasonic, Honeywell, AD, Vicon, GE, Bosch | | Alarm Triggers | Alarm input, motion detection, intelligent video analytics, network disconnect | | Alarm Events | File upload via FTP and email, notification via email
Local storage (microSD/SDHC/SDXC) or NAS recording at event triggers, external output, PTZ preset | | Pixel Counter | Support (plugin viewer only) | | | | Ethernet | RJ45 (10/100/1000Base-T) | | Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Maximum Frame Rate | H.265 / H.264: 60 fps at all resolutions
MJPEG: 15 fps at all resolutions | | Smart Codec | 5 x manual mode (area-based) | | Video Quality Adjustment | H.265 / H.264 / MJPEG: Target bit rate level control | | Bit Rate Control | H.265 / H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 3 profiles) | | Audio In | Selectable (Mic in / Line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm mono jack)
Max Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, and 40 kbps
AAC-LC: 48 kbps at 16 kHz | | Audio Communication | Bi-directional audio (2-way) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at unicast mode | | Edge Storage | microSD/SDHC/SDXC (128 GB) - Motion images recorded in the microSD/SDHC/SDXC memory card can be downloaded, camera can detect automatically when the memory is connected, memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), local PC for instant recording (Plugin viewer only) | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet open platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plugin-free Web viewer
Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9 (Mac OS X only)
Support Codec: Video-H.264, MJPEG (Maximum 1 MP 15 fps)
Plugin Web viewer
Supported Browser: MS Explore 11, Apple Safari 9 (Mac OS X only) | | CMS | SmartViewer, SSM | | | | Operating Conditions | Temperature: -58°F to 131°F (-50 to 55°C)
Humidity: Less than 90% RH | | Storage Conditions | Temperature: -58 to 140°F (-50 to 60°C)
Humidity: Less than 90% RH | | Rating | IP66 / IK10 | | | | Input Voltage | 24 VAC | | Power Consumption | Maximum 60 W
90 W (Heater on / off, IR on) | | | | Material | Aluminum, plastic | | Dimensions | 9.3 x 16.1" (236.9 x 407.7 mm) | | Weight | 15.7 lb (7.1 kg) | | | | Package Weight | 21.85 lb | | Box Dimensions (LxWxH) | 21.6 x 17.6 x 14.2" |
