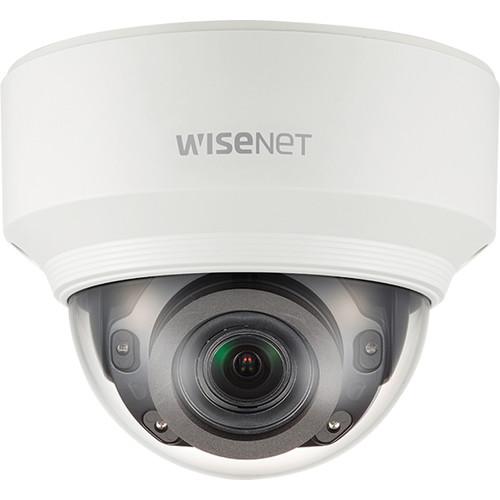

Product description The ivory WiseNet X Series Outdoor 2MP Network Dome Camera (Aluminum) from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor and 2.8-12mm varifocal lens for capturing images at a maximum resolution of 1920 x 1080. It features two SD/SDHC/SDXC memory card slots that accept cards up to 512GB. This day/night camera provides 24-hour surveillance thanks to the IR cut filter and built-in IR LEDs with a range of up to 98'. - Up to 2MP, 1920 x 1080 resolution
- Built-in 2.8-12mm varifocal lens
- Frame rates up to 60 fps at all resolutions
- H.265, H.264, and MJPEG codecs supported with multiple streaming
- Day / night (ICR) functionality
- Supports analytics functions that include Loitering, Directional, Fog, and Audio detection, as well as Digital auto tracking, Sound classification, and Tampering
- Hallway view and WiseStream II support
- LDC (Lens Distortion Correction) support
- Can be powered via PoE or a 12 VDC power source
- Bi-directional audio support
In the Box Hanwha Techwin WiseNet X Series 2MP Outdoor Network Dome Camera with 2.8-12mm Varifocal Lens and Night Vision (Aluminum) Cable for Testing Monitor Template Power Terminal Block Alarm Cable 2 x Tapping Screws L Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series 2MP Outdoor Network Dome Camera with 2.8-12mm Varifocal Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet X Specs | | | Imaging Device | 1/2.8" 2 MP CMOS | | Total Pixels (H x V) | 1945 x 1109 2.16 MP | | Effective Pixels (H x V) | 1945 x 1097, 2.13 MP | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.015 lux (f/1.4, 1/30 sec)
B&W: 0 lux (IR LED on) | | S/N Ratio | 50 dB | | Video Out | CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: Micro-USB type-B, 1280 x 720 for installation | | | | Focal Length | 2.8-12mm (4.3x) motorized varifocal | | Aperture Ratio | f/1.4-3.6 (wide-tele) | | Angular Field of View | Horizontal: 119.5 to 27.9°
Vertical: 62.8 to 15.7°
Diagonal: 142.1 to 32° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus) | | Lens Mount Type | DC auto iris, P-Iris / Board-in type | | Pan / Tilt / Rotate | 0 to 354° / 0 to 67° / 0 to 355° | | | | IR Range | 98.4' (30 m) | | Camera Title | Off / On (Displayed up to 85 characters)
W/W: English / Numeric / Special characters
China: English / Numeric / Special / Chinese characters
Common: Multi-line (maximum 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR | | Wide Dynamic Range | 150 dB | | Contrast Enhancement | SSDR (Off / On) | | Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) | | Image Stabilization | Digital: Off / On | | Defog | Off / Auto (input from fog detection) / Manual | | Motion Detection | Off / On (8 x 8-point polygonal zones), Handover | | Privacy Masking | Off / On (32, Polygonal)
Color: Gray / Green / Red / Blue / Black / White, Mosaic | | Gain Control | Off / Low / Middle / High / Manual | | White Balance | ATW / AWC / Manual / Indoor / Outdoor (included mercury and sodium) | | Contrast | Level adjustment | | Lens Distortion Correction | Off / On (5 levels with minimum / maximum) | | Electronic Shutter Speed | Minimum / Maximum / Anti-flicker (2 to 1/12,000 sec) | | Digital PTZ | 24x, Digital PTZ (Preset, Group) | | Flip / Mirror | Off / On, Hallway View: 90/270˚ | | Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification | | Alarm I/O | 1 x input / 1 x output | | Alarm Triggers | Alarm input, Motion detection, Video and Audio analytics, Network disconnect | | Alarm Events | File upload via FTP, email, Notification via email, local storage (SD/SDHC/SDXC) or NAS recording on event triggers, external output, DPTZ preset | | Pixel Counter | Support | | | | Ethernet | RJ45 (10/100Base-T) | | Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High
MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265 / H.264: Maximum 60 fps at all resolutions
MJPEG: Maximum 30 fps | | Smart Codec | Manual mode (Area-based: 5) | | Video Quality Adjustment | H.265 / H.264: Target bit rate level control
MJPEG: Target bit rate level control | | Bit Rate Control | H.265 / H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in / Line in), Maximum Output Level: 1 Vrms
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out, Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps
AAC-LC: 48 kbps at 8/16/32/48 kHz | | Audio Communication | Bi-directional (2-way) | | IP | IPv4, IPv6 | | Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast / Multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | 2 x SD/SDHC/SDXC card slots (Up to 512 GB)
Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer: Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9
Mac OS X only
Plug-in Webviewer: Supported Browser: MS Explore 11, Apple Safari 9
Mac OS X only | | CMS | SmartViewer, SSM | | | | Operating Temperature / Humidity | 14 to 131°F (-10 to 55°C) / Less than 90% RH | | Storage Temperature / Humidity | -58 to 140°F (-50 to 60°C) / Less than 90% RH | | Vandal Resistance | IK08 | | | | Input Voltage | 12 VDC ±10%, PoE (IEEE 802.3af) | | Power Consumption | Maximum 9 W (12 VDC), Maximum 10 W (PoE) | | | | Material | Aluminum | | Dimensions (Ø x H) | 5.54 x 4.45" (140.8 x 113 mm) | | Weight | 1.6 lb (724 g) |
