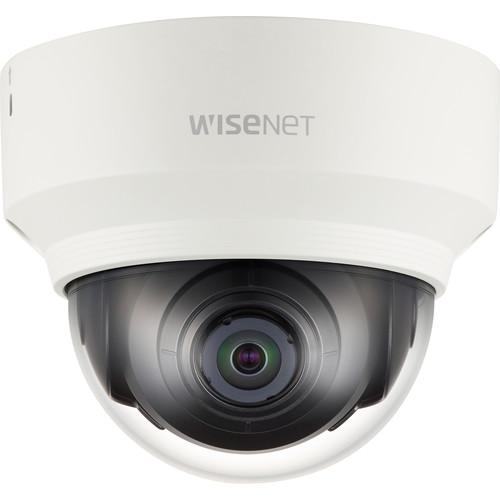

Product description The WiseNet X Series 2MP PTZ Network Dome Camera from Hanwha Techwin features a 1/2.8" 2MP CMOS and a 2.4mm fixed lens with auto-focus capability. It can capture images at 1920 x 1080 resolution and uses H.265, H.264, or MJPEG codecs for compression. For day/night functionality, the camera comes equipped with an ICR. - Supports multiple streaming
- WDR of 150 dB for capturing images under varied light conditions
- Offers loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, heatmapping, people counting, queue management, and tampering
- Supports motion detection and Handover
- Supports Hallway view, WiseStream II
- Can be powered over PoE or 12 VDC power supply
- IK08-rated vandal-resistant housing
In the Box Hanwha Techwin WiseNet X Series 2MP PTZ Network Dome Camera Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series 2MP PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet X Specs | Imaging Device | 1/2.8" 2 MP CMOS | | Total Pixels | 1945 x 1109 (2.16 MP) | | Effective Pixels | 1945 x 1097 (2.13 MP) | | Scanning System | Progressive scan | | Min. Illumination | Color: 0.055 lux (f/2.0, 1/30 sec)
B&W: 0.0055 lux (f/2.0, 1/30 sec) | | S/N Ratio | 50 dB | | Video Out | CVBS: 1 V pp / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: Micro-USB Type-B, 1280 x 720 for installation | | Focal Length | 2.4mm fixed | | Maximum Aperture Ratio | f/2.0 | | Angular Field of View | Horizontal: 139.0° / Vertical: 73.0° / Diagonal: 167.0° | | Minimum Object Distance | 1.31' / 0.4 m | | Focus Control | Manual | | Lens Mount Type | Fixed/Board-in | | Pan / Tilt / Rotate | 0 to 354° / 0 to 67° / 0 to 355° | | Camera Title | Off/On (Displayed up to 85 characters)
W/W: English/Numeric/Special characters
China: English/Numeric/Special/Chinese characters
Common: Multi-line (Max. 5), Color (Gray/Green/Red/Blue/Black/White), Transparency, Auto scale by resolution | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off/BLC/HLC (Masking/Dimming), WDR | | Wide Dynamic Range | 150 dB | | Contrast Enhancement | SSDR (Off/On) | | Digital Noise Reduction | SSNRV (2D + 3D noise filter) (Off/On) | | Image Stabilization | Off/On | | Defog | Off / Auto (Input from fog detection) / Manual | | Motion Detection | Off/On (8 x 8 point polygonal zones), handover | | Privacy Masking | Color : Gray/Green/Red/Blue/Black/White, Mosaic | | Gain Control | Off/Low/Middle/High | | White Balance | ATW/AWC/Manual/Indoor/Outdoor (Included mercury & Sodium) | | Contrast | Level adjustment | | Lens Distortion Correction | Off/On (5 levels with minimum / maximum) | | Electronic Shutter Speed | Minimum/Maximum/Anti-flicker (2 to 1/12,000 sec) | | Digital PTZ | 24x, Digital PTZ (Preset, Group) | | Flip / Mirror | Off/On, Hallway view: 90/270° | | Analytics | Tampering, loitering, directional detection, defocus detection, fog detection, virtual line, enter/exit, (Dis)Appear, audio detection, face detection, motion detection, digital auto tracking, sound classification, heatmapping, people counting, queue management | | Alarm I/O | 1 x input
1 x output | | Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect | | Alarm Events | File upload via FTP, email, notification via email, local storage (SD/SDHC/SDXC) or NAS recording at event triggers, external output, DPTZ preset | | Pixel Counter | Support | | Ethernet | RJ45 (10/100Base-T) | | Video Compression Format | H.265/H.264 (MPEG-4 part 10/AVC): Main/Baseline/High, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Maximum Frame Rate | H.265/H.264: Maximum 60 fps at all resolutions
MJPEG: Maximum 30 fps | | Smart Codec | Manual mode (Area-Based: 5) | | Streaming | Support | | Video Quality Adjustment | H.265/H.264: Target bit rate level control
MJPEG : Target bit rate level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in / Line in)
Max Output Level: 1 Vrms
Supply Voltage: 2.5 VDC (4mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out
Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711: u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, 40 kb/s
AAC-LC: 48 kb/s at 8/16/32/48 kHz | | Audio Communication | Bidirectional (two-way) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, digest login authentication, IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast/Multicast | | Max. User Access | 20 users at unicast mode | | Edge Storage | 2 x SD/SDHC/SDXC slot (up to 512GB)
Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage)
Local PC for instant recording | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-Plugin Webviewer Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9 Mac OS X only Plugin Webviewer
Supported Browser: MS Explorer 11, Apple Safari 9 Mac OS X only | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | Less than 90% RH | | Storage Temperature | 58 to 140°F / -50 to 60°C | | Storage Humidity | Less than 90% RH | | Input Voltage | 12 VDC ±10%, PoE (IEEE 802.3af) | | Power Consumption | Maximum 5.5 W (12 VDC)
Maximum 6 W (PoE) | | Color / Material | Ivory/Metal | | Dimensions | 4.33 x 3.54" / 110.0 x 90.0 mm | | Weight | 12.8 oz / 365 g |
