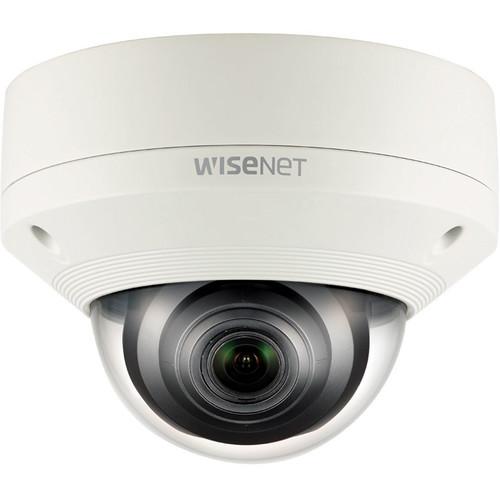

Product description The ivory WiseNet X Series 2MP Vandal-Resistant Outdoor Network Dome Camera from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor and 2.8-12mm motorized varifocal lens for capturing videos at a maximum resolution of 1920 x 1080. It comes with a built-in microSD/SDHC/SDXC card slot (up to 512GB, available separately) for onboard storage. It also supports a host of video and audio analytics functions such as loitering, directional, defocus detection, fog, virtual line crossing, and area enter/exit detection. The camera is housed in an IP67-, NEMA 4X, and IK10-rated enclosure for protection against dust, water, corrosion, and vandalism, making it suitable for outdoor use. - Maximum 2MP (1920 x 1080) resolution
- Built-in 2.8-12mm motorized varifocal lens
- Records at 60 fps at all resolutions (H.265/H.264)
- H.265, H.264, and MJPEG codec supported with multiple streaming
- Day & night function with built-in ICR
- Wide dynamic range of 150 dB
- Video and audio analytics include loitering, directional, fog, audio, tampering, and motion detection, as well as digital auto tracking, sound classification, and handover
- microSD/SDHC/SDXC memory slot for on-board storage (512GB, card available separately)
- Hallway view and WiseStream II support
- LDC (Lens Distortion Correction) support
- Bidirectional audio support
- IP67-, NEMA 4X, and IK10-rated for outdoor use
- PoE / 24 VAC / 12 VDC support
In the Box Hanwha Techwin WiseNet X Series 2MP Vandal-Resistant Outdoor Network Dome Camera with 2.8-12mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series 2MP Vandal-Resistant Outdoor Network Dome Camera with 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet X Specs | | | Imaging Device | 1/2.8" 2 MP CMOS | | Total Pixels (H x V) | 1945 x 1109 (2.16 MP) | | Effective Pixels (H x V) | 1945 x 1097 (2.13 MP) | | Scanning System | Progressive | | Minimum Illumination | Color: 0.015 lux (1/30 sec, f/1.4)
B&W: 0.0015 lux (1/30 sec, f/1.4) | | S/N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p / 75 Ohms composite, 714 x 480, 702 x 576, for installation
Micro-USB Type B, 1280 x 720 for installation | | Pan/Tilt | Pan: 0 to 354°
Tilt: 0 to 67° | | | | Focal Length | 2.8-12mm motorized varifocal | | Maximum Aperture Ratio | f/1.4 to 3.6 | | Zoom | 4.3x | | Angular Field of View | Horizontal: 119.5 to 27.9°
Vertical: 62.8 to 15.7°
Diagonal: 142.1 to 32° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (Motorized varifocal) / Manual, Remote control via network (Manual, Simple focus) | | Iris | DC auto iris, P-iris | | Mount Type | Board-in type | | | | Camera Title | On/Off (Displayed up to 85 characters per line)
Supported Characters: English/Numeric/Special/Chinese characters
Common Features: Multi-line (Maximum 5), Color (Gray/Green/Red/Blue/Black/White), transparency, auto scale by resolution | | Day and Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off / BLC / HLC (Masking/Dimming) / WDR | | Wide Dynamic Range | 150 dB | | Contrast Enhancement | SSDR (On/Off) | | Digital Noise Reduction | SSNRV (2D + 3D noise filter), On/Off | | Image Stabilization | Digital (On/Off) | | Defog | Off / Auto (Input from fog detection) / Manual | | Motion Detection | On (8 x 8-point polygonal zones) / Off / Handover | | Privacy Masking | On/Off (32 x polygonal zones)
Color: Gray/Green/Red/Blue/Black/White/Mosaic | | Gain Control | Off/Low/Middle/High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor (including mercury & sodium) | | Contrast | Level adjusment | | Lens Distortion Correction | On/Off (5 levels with minimum / maximum) | | Electronic Shutter Speed | Minimum/Maximum/Anti-flicker (1/12,000 to 2 sec) | | Digital Zoom | 24x | | Digital PTZ | Preset/Group | | Flip / Mirror | On/Off, Hallway: 90/270° | | Analytics | Video & Audio Analytics: Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification | | Alarm I/O | 1 x input
1 x output | | Alarm Triggers | Alarm input, motion detection, intelligent video analytics, network disconnect | | Alarm Events | File upload via FTP and email, notification via email
Local storage (microSD/SDHC/SDXC) or NAS recording at event triggers, external output, digital PTZ preset | | Pixel Counter | Supported | | | | Ethernet | RJ45 (10/100/1000Base-T) | | Video Compression Format | H.265/H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Maximum Frame Rate | H.265/H.264: 60 fps at all resolutions
MJPEG: 30 fps | | Smart Codec | 5 x manual mode (area-based) | | Video Quality Adjustment | H.265/H.264/MJPEG: Target bit rate level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in / Line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out
Max Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, and 40 kb/s
AAC-LC: 48 kb/s at 8/16/32/48 kHz | | Audio Communication | Bidirectional audio (2-way) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast / Multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | microSD/SDHC/SDXC (512 GB) - Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage)
Local PC for instant recording | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet open platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Plugin-free web viewer
Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9 (Mac OS X only)
Plugin web viewer
Supported Browser: MS Explore 11, Apple Safari 9 (Mac OS X only) | | CMS | SmartViewer, SSM | | | | Operating Conditions | Temperature: -40°F to 131°F / -40 to 55°C
Humidity: Less than 90% RH | | Storage Conditions | Temperature: -58 to 140°F / -50 to 60°C
Humidity: Less than 90% RH | | Ingress Protection | IP67 and NEMA 4X | | Vandal Resistance | IK10 | | | | Input Voltage | 24 VAC ±10%, 12 VDC ±10%, PoE (IEEE 802.3af) | | Power Consumption | Maximum 7 W (12 VAC) Maximum 7.8 W (PoE) Maximum 8.2 W (24 VAC) | | | | Material | Aluminum | | Dimensions | 6.3 x 4.7" / 160 x 118.5 mm | | Weight | 2.2 lb / 1 kg |
