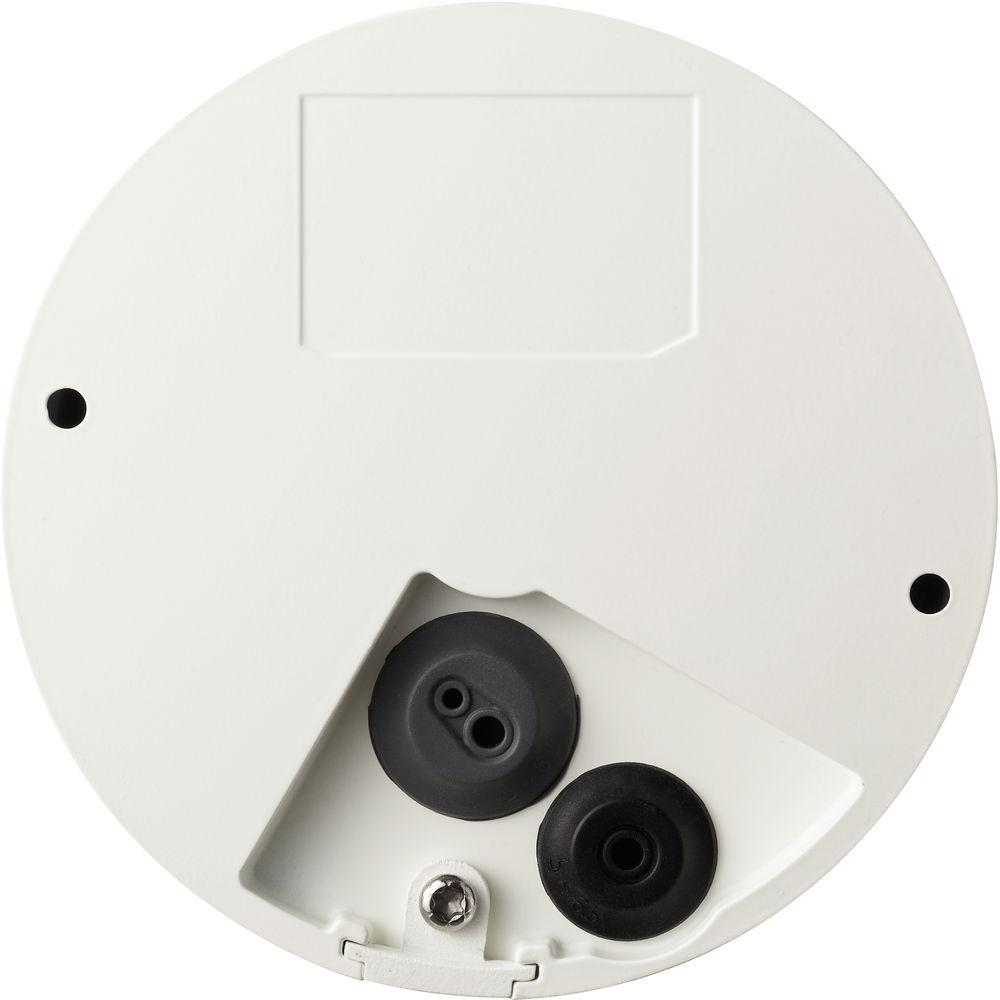

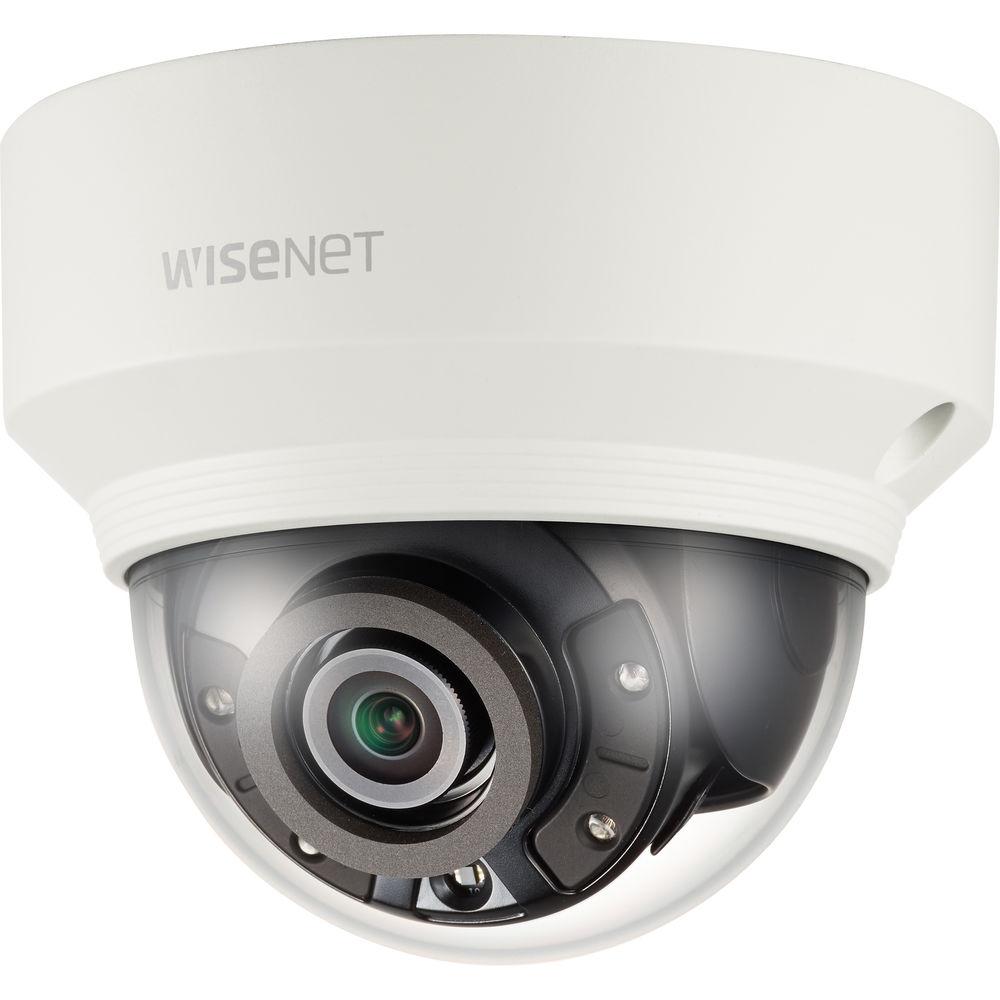

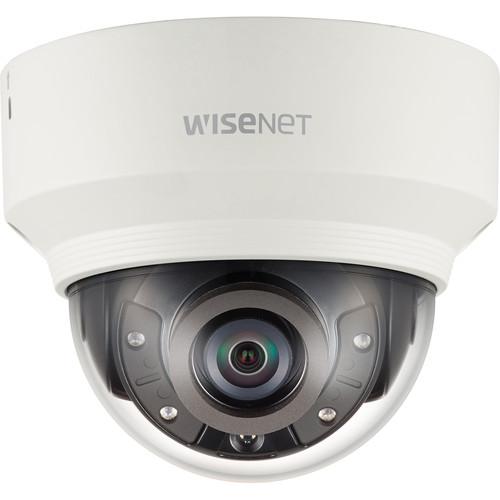

User Manual for Hanwha Techwin WiseNet X Series 5MP Network Dome Camera with 4.6mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet X Series 5MP
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
 |
User manual for the Hanwha Techwin WiseNet X Series 5MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The ivory WiseNet X Series 5MP Network Dome Camera from Hanwha Techwin features a 1/1.8" progressive scan CMOS sensor and 4.6mm fixed lens for capturing images at a maximum resolution of 2560 x 1920. It features two SDXC memory card slots that accept cards up to 512GB. This day/night camera provides 24-hour surveillance thanks to built-in IR LEDs with a range of up to 98'.
- Up to 5MP, 2560 x 1920 resolution
- Built-in 4.6mm fixed lens
- Frame rates up to 30 fps at all resolutions
- H.265, H.264, and MJPEG codecs supported with multiple streaming
- Day / night (ICR) functionality
- Supports analytics functions that include Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Heatmapping, People counting, Queue management, and Tampering
- Motion detection and Handover
- Hallway view and WiseStream II support
- Lens Distortion Correction
- Can be powered via PoE or a 12 VDC power source
In the Box Hanwha Techwin WiseNet X Series 5MP Network Dome Camera with 4.6mm Lens & Night Vision Cable for the Testing Monitor Template Power Terminal Block 2 x Tapping Screws 2 x Machine Screws L Wrench Audio/Alarm Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series 5MP Network Dome Camera with 4.6mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet X Specs | | | Imaging Device | 1/1.8" 6 MP CMOS | | Total Pixels (H x V) | 3096 x 2094 | | Effective Pixels (H x V) | 2616 x 1976 | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.16 lux (f/1.6, 1/30 sec)
B&W: 0 lux (IR LED on) | | S / N Ratio | 50 dB | | Video Out | CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: Micro-USB type B, 1280 x 720 for installation | | | | Focal Length | 4.6mm fixed | | Aperture Ratio | f/1.6 | | Angular Field of View | Horizontal: 77.9˚
Vertical: 57.9˚
Diagonal: 98.7˚ | | Minimum Object Distance | 1.31' (0.4 m) | | Focus Control | Manual | | Type | Lens / Mount Type: Fixed / Board-in type | | Pan / Tilt / Rotate | 0 to 354° / 0 to 67° / 0 to 355° | | | | IR Range | 98.4' (30 m) | | Camera Title | Off / On (Displayed up to 85 characters)
W/W: English / Numeric / Special characters
China: English / Numeric / Special / Chinese characters
Common: Multi-line (maximum 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Off / On) | | Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) | | Image Stabilization | Digital: Off / On | | Defog | Off / Auto (input from fog detection) / Manual | | Motion Detection | Off / On (8 x 8-point polygonal zones), Handover | | Privacy Masking | Off / On (32, Polygonal)
Color: Gray / Green / Red / Blue / Black / White, Mosaic | | Gain Control | Off / Low / Middle / High / Manual | | White Balance | ATW / AWC / Manual / Indoor / Outdoor (included mercury and sodium) | | Contrast | Level adjustment | | Lens Distortion Correction | Off / On (5 levels with minimum / maximum) | | Electronic Shutter Speed | Minimum / Maximum / Anti-flicker (2 to 1/12,000 sec) | | Digital PTZ | 24x, Digital PTZ (Preset, Group) | | Flip / Mirror | Off / On, Hallway View: 90/270deg; | | Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management | | Alarm I/O | 1 x input / 1 x output | | Alarm Triggers | Alarm input, Motion detection, Video and Audio analytics, Network disconnect | | Alarm Events | File upload via FTP, email, Notification via email, local storage (SD/SDHC/SDXC) or NAS recording on event triggers, external output, DPTZ preset | | Pixel Counter | Support | | | | Ethernet | RJ45 (10/100Base-T) | | Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High
MJPEG | | Resolution | 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265 / H.264: Maximum 30 fps at all resolutions
MJPEG: Maximum 30 fps | | Smart Codec | Manual mode (Area-based: 5)
WiseStream II | | Video Quality Adjustment | H.265 / H.264: Target bit rate level control
MJPEG: Target bit rate level control | | Bit Rate Control | H.265 / H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in / Line in), Maximum Output Level: 1 Vrms
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out, Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps
AAC-LC: 48 kbps at 8/16/32/48 kHz | | Audio Communication | Bi-directional (2-way) | | IP | IPv4, IPv6 | | Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast / Multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | 2 x SD/SDHC/SDXC slots (Up to 512 GB)
Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer: Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9
Mac OS X only
Plugin Webviewer: Supported Browser: MS Explore 11, Apple Safari 9
Mac OS X only | | CMS | SmartViewer, SSM | | | | Operating Temperature / Humidity | 14 to 131°F (-10 to 55°C) / Less than 90% RH | | Storage Temperature / Humidity | -58 to 140°F (-50 to 60°C) / Less than 90% RH | | Vandal Resistance | IK08 | | | | Input Voltage | 12 VDC ±10%, PoE (IEEE 802.3af) | | Power Consumption | Maximum 8 W (12 VDC), Maximum 9 W (PoE) | | | | Material | Metal | | Dimensions (Ø x H) | 4.33 x 3.54" (110 x 90 mm) | | Weight | 0.84 lb (0.38 kg) |
