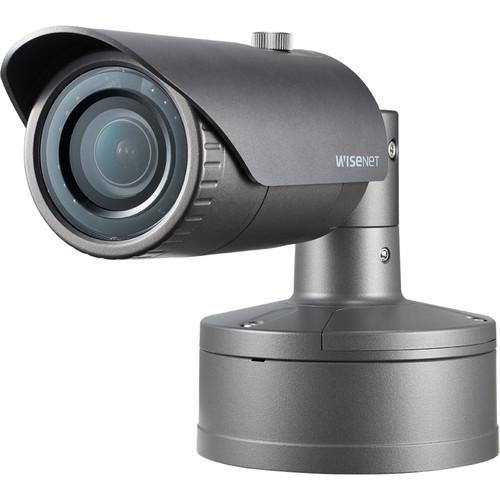

Product description The dark gray WiseNet X Series 5MP Outdoor Network Bullet Camera from Hanwha Techwin features a 1/1.8" progressive scan CMOS sensor and 7mm lens for capturing images at a maximum resolution of 2560 x 1920. It features digital image stabilization and two SD/SDHC/SDXC memory card slots that accept cards up to 512GB (available separately). The camera also supports analytics functions such as loitering, directional, fog, tampering, and audio detection as well as digital auto tracking, sound classification, heatmapping, people counting, and queue management. - Frame rates up to 30 fps at all resolutions (H.265/H.264)
- H.265, H.264, and MJPEG codec supported with multiple streaming
- Day/night (ICR) functionality
- Motion detection and handover
- Hallway view and WiseStream II support
- LDC (Lens Distortion Correction) support
In the Box Hanwha Techwin WiseNet X Series 5MP Outdoor Network Bullet Camera with 7mm Lens and Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series 5MP Outdoor Network Bullet Camera with 7mm Lens and Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet X Specs | | | Imaging Device | 1/1.8" CMOS | | Total Pixels (H x V) | 3096 x 2094 | | Effective Pixels (H x V) | 2616 x 1976 | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.16 lux (f/1.6, 1/30 sec)
B&W: 0 lux (IR LED on) | | S/N Ratio | 50 dB | | Video Out | CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: Micro-USB Type-B, 1280 x 720 for installation | | | | Focal Length (Zoom Ratio) | 7mm fixed | | Maximum Aperture Ratio | f/1.6 | | Angular Field of View (D/V/H) | 50.7/37.8/63.8° | | Minimum Object Distance | 1.3' / 0.4 m | | Focus Control | Manual | | Lens Type | Fixed | | Mount Type | Board-in | | | | IR Range | 98.4' / 30 m | | Camera Title | Off/On (Displayed up to 85 characters)
W/W: English/Numeric/Special characters
China: English/Numeric/Special/Chinese characters
Common: Multi-line (maximum 5), Color (Gray/Green/Red/Blue/Black/White), Transparency, Auto scale by resolution | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Off/On) | | Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off/On) | | Image Stabilization | Digital: Off/On | | Defog | Off / Auto (input from fog detection) / Manual | | Motion Detection | Off/On (8 x 8-point polygonal zones), Handover | | Privacy Masking | Off/On (32, Polygonal)
Color: Gray/Green/Red/Blue/Black/White, Mosaic | | Gain Control | Off/Low/Middle/High | | White Balance | ATW/AWC/Manual/Indoor/Outdoor (included mercury and sodium) | | Contrast | Level adjustment | | Lens Distortion Correction | Off/On (5 levels with minimum/maximum) | | Electronic Shutter Speed | Minimum/Maximum/Anti-flicker (1/12,000 to 2 sec) | | Digital PTZ | 24x, Digital PTZ (Preset, Group) | | Flip/Mirror | Off/On, Hallway View: 90/270° | | Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management | | Alarm I/O | 1 x input / 1 x output | | Alarm Triggers | Alarm input, motion detection, video & audio analytics, network disconnect | | Alarm Events | File upload via FTP, email, notification via email, local storage (SD/SDHC/SDXC) or NAS recording on event triggers, external output, DPTZ preset | | Pixel Counter | Supported | | | | Ethernet | RJ45 (10/100Base-T) | | Video Compression Format | H.265/H.264 (MPEG-4 part 10/AVC): Main/Baseline/High
MJPEG | | Resolution | 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265/H.264: Maximum 60 fps at all resolutions
MJPEG: Maximum 30 fps | | Smart Codec | Manual mode (Area-based: 5) | | Video Quality Adjustment | H.265/H.264: Target bit rate level control
MJPEG: Target bit rate level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in / Line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out, Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, 40 kb/s, AAC-LC: 48 kbps at 8/16/32/48 kHz | | Audio Communication | Bidirectional (2-way) | | IP | IPv4, IPv6 | | Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast/Multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | 2 x SD/SDHC/SDXC slots (Up to 512 GB)
Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-Plugin Webviewer: Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9
Mac OS X only
Plugin Webviewer: Supported Browser: MS Explore 11, Apple Safari 9
Mac OS X only | | CMS | SmartViewer, SSM | | | | Operating Temperature / Humidity | -22 to 131°F /-30 to 55°C at less than 90% RH | | Storage Temperature / Humidity | -58 to 140°F / -50 to 60°C at less than 90% RH | | Ingress Protection | IP67, NEMA 4X | | Vandal Resistance | IK10 | | | | Input Voltage | 12 VDC ±10%, PoE (IEEE 802.3af) | | Power Consumption | Maximum 9.3 W (12 VDC)
Maximum 10.3 W (PoE) | | | | Material | Aluminum | | Dimensions | Without Sunshield: 4.7 x 11.7" / 70 x 296 mm | | Weight | 2.7 lb / 1.2 kg |
