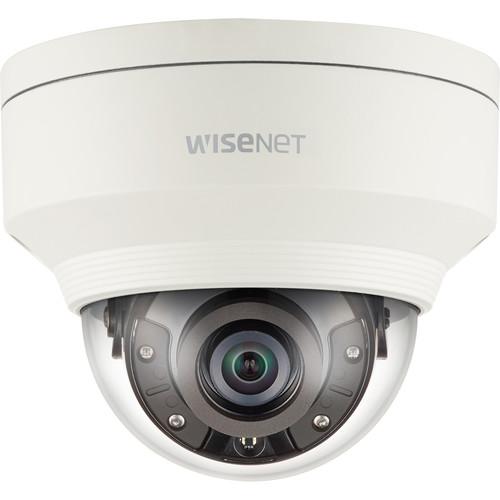

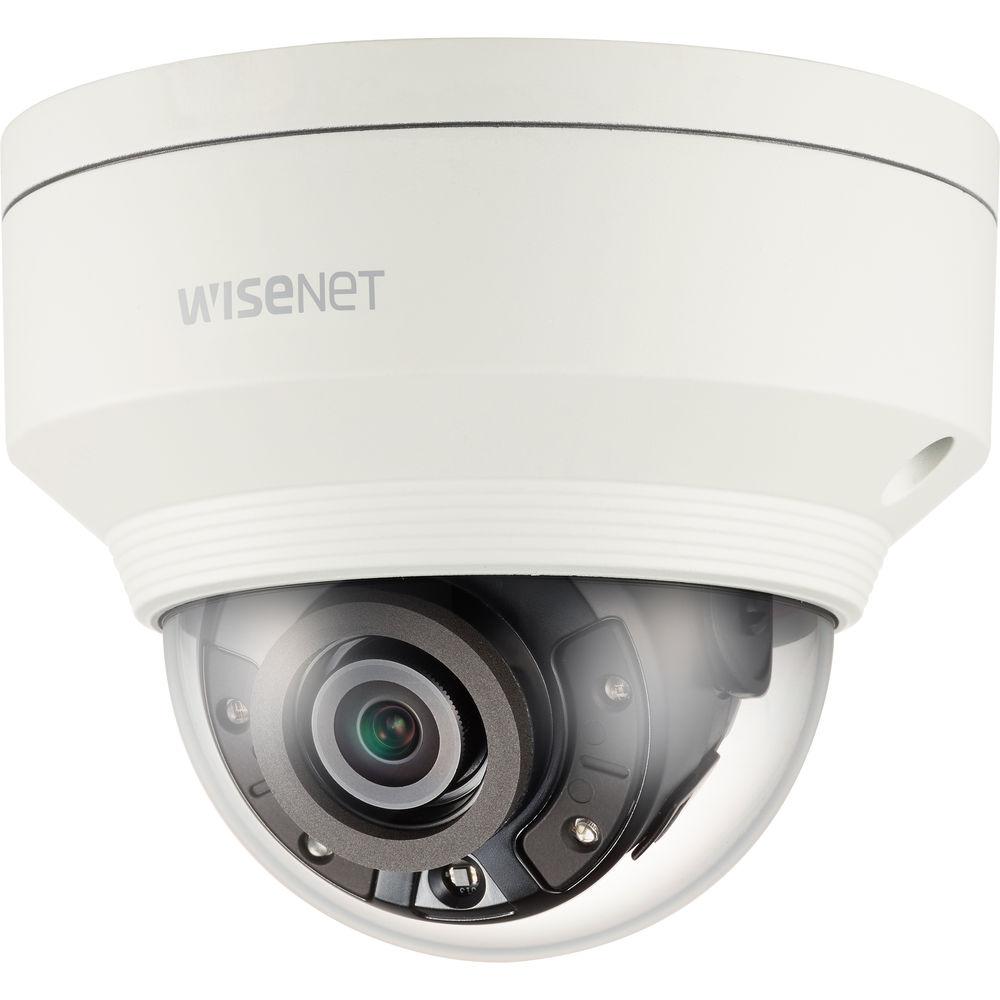

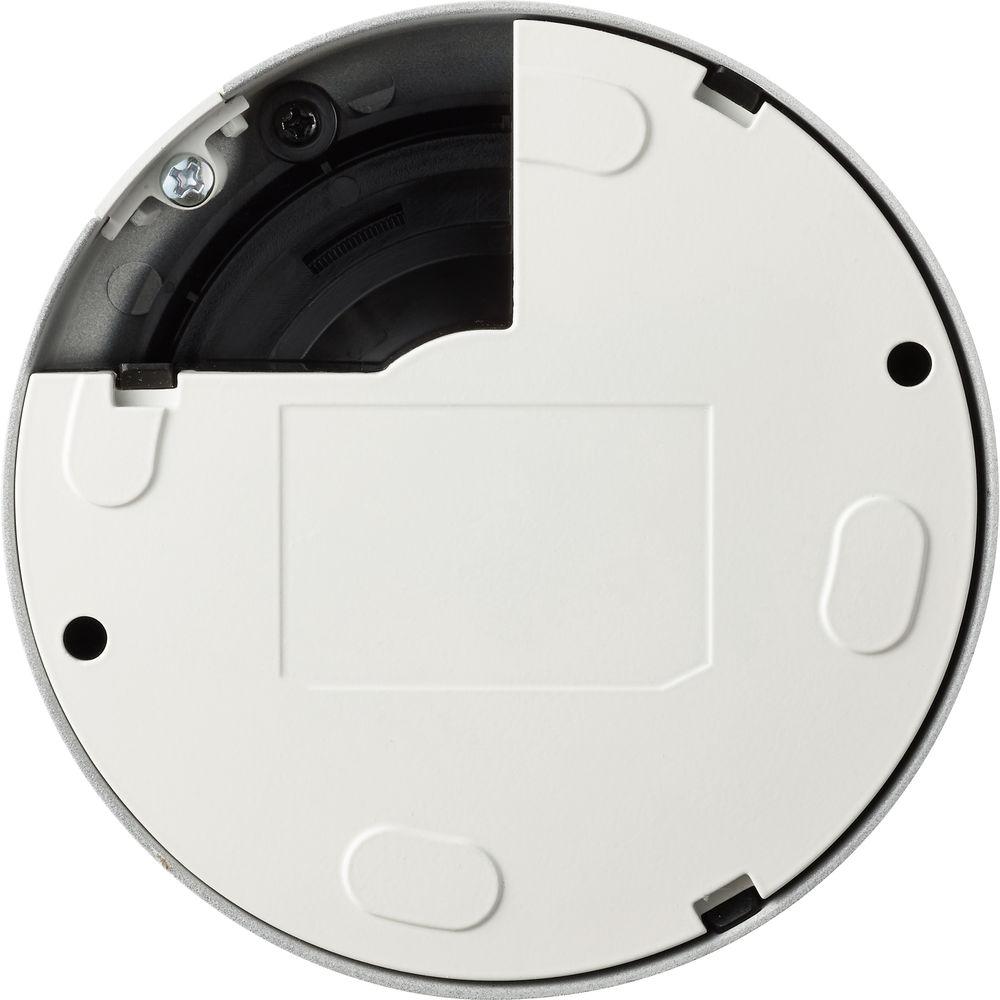

Product description The WiseNet X Series 5MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision from Hanwha Techwin features a 1/1.8" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 30 fps. It's equipped with a 4.6mm fixed lens that delivers a 77.9° horizontal field of view. IR LEDs provide a night vision range up to 98'. H.265, H.264 & MJPEG video compression keep video file sizes manageable, while maintaining the highest quality possible. Two built-in microSD/SDHC/SDXC card slots accept up to 512GB of edge storage in total. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera is ONVIF-compliant for profiles S & G, making it compatible with a wide range of surveillance devices. The camera's IP67- and IK10-rated metal enclosure is suitable for outdoor use in areas at high risk of vandalism. - Two-way audio communication
- Records at 30 fps at all resolutions (H.265/H.264)
- H.265, H.264, and MJPEG codecs supported with multiple streaming
- IR cut filter enables day and night functionality
- 120 dB wide dynamic range
- Video and audio analytics include loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, heatmap, people counting, queue management, tampering, motion detection, and handover
- Hallway view and WiseStream II support
- LDC (lens distortion correction) support
- IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at high risk of vandalism
In the Box Hanwha Techwin WiseNet X Series 5MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision & 4.6mm Lens Cable for Testing Monitor Template Power Terminal Block 2 x Tapping Screws 2 x Machine Screws L Wrench Audio/Alarm Cable Power Cable Cable Bush 2 x Plastic Anchors Card-Type Moisture Absorbent Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series 5MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision & 4.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet X Specs | | | Imaging Device | 1/1.8" 6 MP CMOS | | Total Pixels (H x V) | 3096 x 2094 | | Effective Pixels (H x V) | 2616 x 1976 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.16 lux (f/1.6, 1/30 sec)
B&W: 0 lux (IR LED on) | | S/N Ratio | 50 dB | | Video Output | CVBS: 1.0 V p-p / 75 Ohms composite, 714 x 480, 702 x 576 for installation
USB: Micro-USB type B, 1280 x 720 for installation | | | | Focal Length | 4.6mm fixed | | Maximum Aperture Ratio | f/1.4 | | Field of View | Horizontal: 77.9°
Vertical: 57.9°
Diagonal: 98.7° | | Minimum Object Distance | 1.31' (0.4 m) | | Focus Control | Manual | | Mount Type | Board-in type | | | | Pan Range | 0 to 354° | | Tilt Range | 0 to 67° | | Rotate Range | 0 to 355° | | | | IR Range | 98.43' (30 m) | | Camera Title | Off/on (displayed up to 85 characters per line)
Supported Characters:
English, numeric, special characters, Chinese characters (in China)
Common Features: Multi-line (Max. 5), Color (Gray, Green, Red, Blue, Black, White), transparency, auto scale by resolution | | Day and Night | Auto (IR cut filter), color, B&W, external, schedule | | Backlight Compensation | Off, BLC, HLC (masking/dimming), WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (off/on) | | Digital Noise Reduction (DNR) | SSNRV (2D + 3D noise filter), off/on | | Image Stabilization | Digital, off/on | | Defog | Off, auto (input from fog detection), manual | | Motion Detection | Off/on (8 x 8-point polygonal zones), handover | | Privacy Masking | Off/on (32 x polygonal zones)
Color: Gray, Green, Red, Blue, Black, White, Mosaic | | Gain Control | Off, low, middle, high | | White Balance | ATW, AWC, manual, indoor, outdoor (including mercury & sodium) | | Contrast | Level adjustment | | Lens Distortion Correction | Off/on (5 levels with minimum/maximum) | | Electronic Shutter Speed | Minimum, maximum, anti flicker (2 to 1/12,000 seconds) | | Digital Zoom | 24x | | Digital PTZ | Preset, group | | Flip / Mirror | Off/on
Hallway View: 90/270° | | Analytics | Video & Audio Analytics:
Tampering, loitering, directional detection, defocus detection, fog detection, virtual line, enter/exit, (dis)appear, audio detection, face detection, motion detection, digital auto tracking, sound classification, heatmap, people counting, queue management | | Alarm I/O | 1 x input
1 x output | | Alarm Triggers | Alarm input, motion detection, video & audio analytics, network disconnect | | Alarm Events | File upload via FTP and email, notification via email
Local storage (microSD/SDHC/SDXC) or NAS recording at event triggers, external output, digital PTZ preset | | Pixel Counter | Supported | | | | Ethernet | RJ45 (10/1000Base-T) | | Video Compression Format | H.265/H.264 (MPEG-4 part 10/AVC): Main/Baseline/High, MJPEG | | Resolution | 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Maximum Frame Rate | H.265/H.264: 30 fps at all resolutions
MJPEG: 30 fps | | Smart Codec | 5 x manual mode (area-based) | | Video Quality Adjustment | H.265/H.264/MJPEG:
Target bit rate level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (mic in/line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out
Max Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, and 40 kbps
AAC-LC: 48 kbps at 8/16/32/48 kHz | | Audio Communication | Bi-directional audio (2-way) | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast/multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | 2 x microSD/SDHC/SDXC (up to 512 GB total) - continuous recording (1st slot to 2nd slot)
NAS (network attached storage)
Local PC for instant recording | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet Open Platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin web viewer
Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64-bit only), Apple Safari 9 (Mac OS X only)
Plug-in Web viewer
Supported Browser: MS Explore 11, Apple Safari 9 (Mac OS X only) | | CMS | SmartViewer, SSM | | | | Operating Conditions | Temperature: -22°F to 131°F (-30 to 55°C)
Humidity: Less than 90% RH
Startup should be done at above -4°F (-20°C) | | Storage Conditions | Temperature: -58 to 140°F (-50 to 60°C)
Humidity: Less than 90% RH | | IP Rating | IP67 | | IK Rating | IK10 | | Input Voltage | 12 VDC ±10%, PoE (IEEE 802.3af) | | Power Consumption | 12 VDC: Maximum 8 W
PoE: Maximum 9 W | | Color | Ivory | | Construction Material | Metal | | Dimensions |
