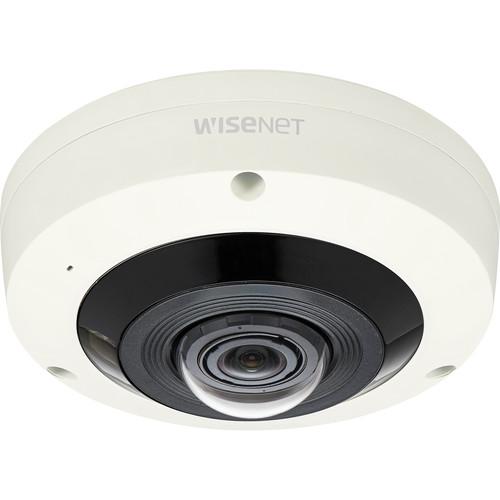

User Manual for Hanwha Techwin WiseNet X Series XNF-8010RV 6MP Outdoor Network Fisheye Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet X Series XNF-8010RV
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet X Series XNF-8010RV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Capture a 6MP 360° view of your property day and night with the ivory WiseNet X Series XNF-8010RV 6MP Outdoor Network Dome Camera with RJ45 connector from Hanwha Techwin. Equipped with a 1/1.8" 6MP CMOS sensor and a 1.6mm fisheye lens, the XNF-8010RV delivers resolutions up to 2048 x 2048 at 30 fps in a 192 x 192° field of view. The camera has an automatic IR cut filter and IR LEDs for night vision with an effective range of up to 49'. Built-in image enhancement features including wide dynamic range and automatic white balance allow you to capture images in varying lighting conditions.
The XNF-8010RV is IP66 and IK10 rated for weather and vandal resistance. PoE enables you to run just one wire for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance devices. - Up to 2048 x 2048 resolution
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- Built-in 1.6mm fixed lens
- Various viewing modes including Fisheye, Single Panorama, Double Panorama, and Quad View
- Input and output for bidirectional audio
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Automatic IR cut filter for day and night vision
- IR LEDs for night vision up to 49'
- Intelligent video and audio analytics including tamper detection, loitering detection, directional detection, audio detection, sound classification, heatmaps, people counting, queue management, motion detection, and handover
- IP66 rated for outdoor use
- IK10-rated vandal resistance
- SD/SDHC/SDXC memory slot for edge storage supports up to 512GB (SD/SDHC/SDXC cards available separately)
- PoE technology for easy, clutter-free installation
In the Box Hanwha Techwin WiseNet X Series XNF-8010RV 6MP Outdoor Network Fisheye Dome Camera with Night Vision (RJ45) Software CD Cable for Testing Monitor Template L Wrench 3 x Tapping Screws 3 x Plastic Anchors 3 x Machine Screws RJ45 Waterproof Accessory Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series XNF-8010RV 6MP Outdoor Network Fisheye Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XNF-8010RV Specs | | | Sensor | 6 MP 1/1.8" CMOS | | Focal Length | 1.6mm | | Maximum Aperture | f/1.6 | | Zoom | Digital: 8x | | Lens Field of View | Horizontal: 192°
Vertical: 192°
Diagonal: 192° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | Shutter Speed | 1/12,000 to 2 Seconds | | | | Streaming Resolution | 2048 x 2048 at 15/30 fps
2048 x 1536
2048 x 1024
2048 x 512
1024 x 768 | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | | | Streaming | Two-Way | | Audio Formats | AAC, ADPCM, G.711, G.726 | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, SUNAPI, Wisenet Open Platform | | Analytics | Tampering, Loitering, Directional Detection, Virtual Line, Enter/Exit, (Dis)Appear, Audio Detection, Sound Classification, People Counting, Heatmap, Queue Management | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8.1, 10 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 | | | | Recording Media | SD (Up to 512 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 49.21' / 15 m | | Video Management Software | SmartViewer, SSM | | Supported Languages | Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Turkish | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | DC: 12 W
PoE: 12.95 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Storage Temperature | -58 to 140°F / -50 to 60°C | | Operating Humidity | 0 to 89% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
