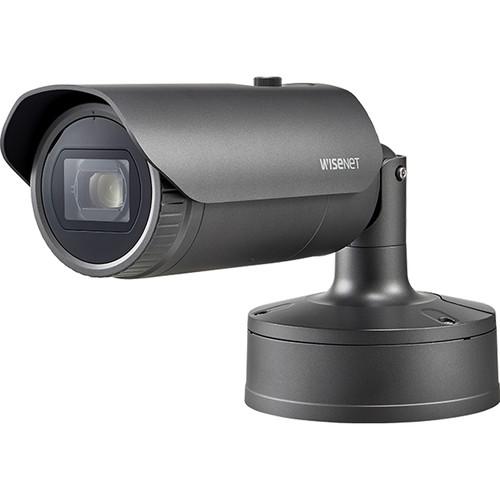

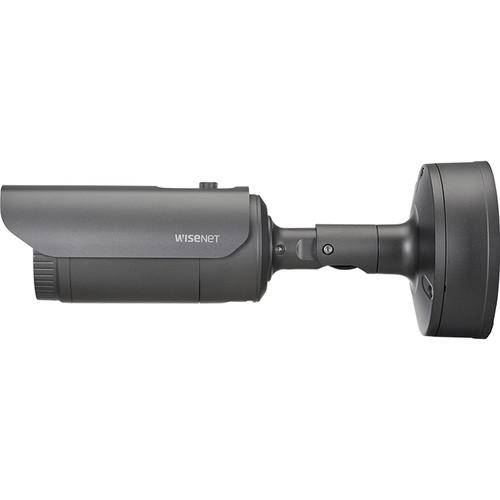

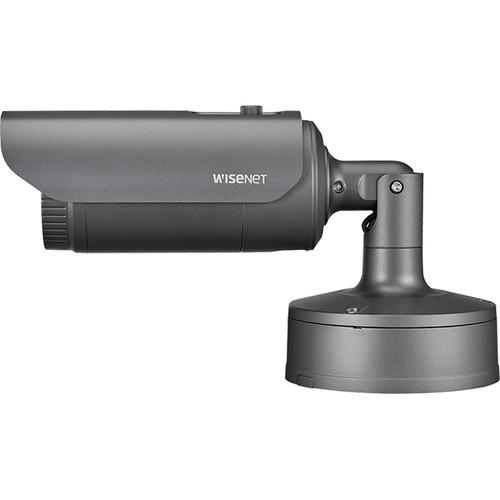

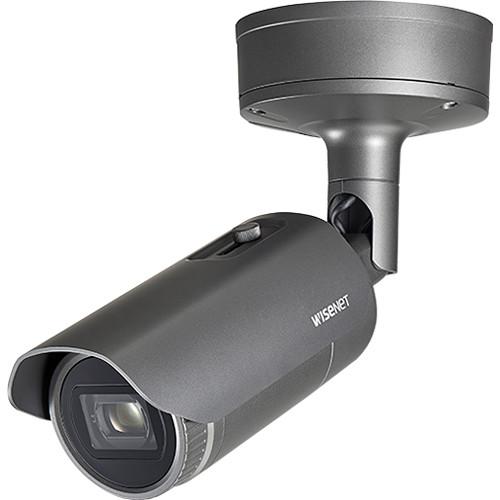

Product description The WiseNet X Series XNO-6120R 2MP Outdoor Network Bullet Camera from Hanwha Techwin features a 1/2.8" progressive scan CMOS sensor and 5.2-62.4mm varifocal lens for capturing images at a maximum resolution of 1920 x 1080. It features two SDXC memory card slots that accept cards up to 512GB. This day/night camera provides 24-hour surveillance thanks to built-in IR LEDs with a range of up to 230'. - Up to 2MP, 1920 x 1080 resolution
- Built-in 5.2-62.4mm varifocal lens, 12x optical lens
- Maximum 60 fps at all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codecs supported with multiple streaming
- Day & night (ICR), WDR (150 dB), defog
- DIS with built-in gyro sensor
- Loitering, directional detection, fog detection, audio detection, sound classification, tampering
- Motion detection, handover
- 2 SD/SDHC/SDXC slots (maximum 512GB)
- Supports hallway view and WiseStreamII
- Supports LDC (Lens Distortion Correction)
- Supports PoE, 24 VAC, 12 VDC, bi-directional audio
- IP67- and IK10-rated for outdoor use and vandal resistance
In the Box Hanwha Techwin WiseNet X Series XNO-6120R 2MP Outdoor Network Bullet Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series XNO-6120R 2MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin WiseNet X Specs | | | Imaging Device | 1/2.8" 2 MP CMOS | | Total Pixels (H x V) | 1945 x 1109 2.16 MP | | Effective Pixels (H x V) | 1945 x 1097, 2.13 MP | | Scanning System | Progressive scan | | Minimum Illumination | Color: 0.03 lux (f/1.6, 1/30 sec)
B&W: 0 lux (IR LED on) | | S/N Ratio | 50 dB | | Video Out | CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: Micro-USB Type-B, 1280 x 720 for installation | | | | Focal Length | 5.2-62.4mm varifocal lens | | Optical Zoom | 12x | | Aperture Ratio | f/1.6 to f/3.0 | | Angular Field of View | H: 54.58 to 5.30°
V: 32.19 to 3.00°
D: 61.40 to 6.06° | | Minimum Object Distance | 4.9' (1.5 m) | | Focus Control | Auto / Manual / One shot AF | | Mount Type | DC auto iris / Board-in type | | | | IR Range | 230' (70 m) | | Camera Title | Off/On (Displayed up to 85 characters)
W/W: English/Numeric/Special characters
China: English/Numeric/Special/Chinese characters
Common: Multi-line (maximum 5), Color (Gray/green/red/blue/black white), Transparency, Auto scale by resolution | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off/BLC/HLC/WDR | | Wide Dynamic Range | 150 dB | | Contrast Enhancement | SSDR (Off/On) | | Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off/On) | | Image Stabilization | Digital: Off/On | | Defog | Off/Auto/Manual | | Motion Detection | Off/On (8 x 8-point polygonal zones), Handover | | Privacy Masking | Off/On (32, polygonal)
Color: Gray/green/red/blue/black/white, Mosaic | | Gain Control | Off/Low/Middle/High | | White Balance | ATW/AWC/Manual/Indoor/Outdoor (included mercury and sodium) | | Contrast | Level adjustment | | Lens Distortion Correction | Off/On (5 levels with minimum/maximum) | | Electronic Shutter Speed | Minimum/Maximum/Anti-flicker (2 to 1/12,000 sec) | | Digital Zoom | 24x | | Flip / Mirror | Off/On, Hallway View: 90/270˚ | | Analytics | Tampering, Loitering, Directional detection, Defocus Detection, Fog Detection, Virtual Line, Enter/Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Sound Classification | | Alarm I/O | 1 x input / 1 x output | | Alarm Triggers | Alarm input, Motion detection, Video and Audio analytics, Network disconnect | | Alarm Events | File upload via FTP, email, Notification via email, local storage (SD/SDHC/SDXC) or NAS recording at event triggers, external output, preset | | Pixel Counter | Support | | | | Ethernet | RJ45 (10/100Base-T) | | Video Compression Format | H.265/H.264 (MPEG-4 part 10/AVC): Main/Baseline/High, MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 | | Frame Rate | H.265/H.264: Maximum 60 fps at all resolutions
MJPEG: Maximum 30 fps | | Smart Codec | Manual mode (Area-based: 5)
WiseStream II | | Video Quality Adjustment | H.265/H.264: Target bit rate level control
MJPEG: Target bit rate level control | | Bit Rate Control | H.265/H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio In | Selectable (Mic in / Line in)
Maximum Output Level: 1 Vrms
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out, 3.5mm mono
Maximum Output Level: 1 Vrms | | Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, 40 kbps
AAC-LC: 48 kbps at 16 kHz | | Audio Communication | Bi-directional (2-way) | | IP | IPv4, IPv6 | | Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) | | Streaming Method | Unicast / Multicast | | Maximum User Access | 20 users at unicast mode | | Edge Storage | 2 x SD/SDHC/SDXC slots (Up to 512 GB)
Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording | | Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform | | Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | | Web Viewer | Supported OS: Windows 7, 8.1, 10 / Mac OS X 10.10, 10.11, 10.12
Non-Plugin Web Viewer: Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9
Mac OS X only
Plugin Web Viewer Supported Browser: MS Explore 11, Apple Safari 9
Mac OS X only | | CMS | SmartViewer | | | | Operating Temperature / Humidity | -40 to 131°F (-40 to 55°C) / Less than 90% RH
Start up should be done at above -31°F (-35°C) | | Storage Temperature / Humidity | -58 to 140°F (-50 to 60°C) / Less than 90% RH | | Ingress Protection | IP67, NEMA 4X | | Vandal Resistance | IK10 | | | | Input Voltage | 24 VAC, 12 VDC, PoE (IEEE802.3af Class 3) | | Power Consumption | 24 VAC: Maximum 14.5 W
12 VDC: Maximum 12.5 W
PoE: Maximum 12.95 W | | | | Material | Aluminum | | Dimensions (Ø x H) | Ø3.58 x 14.5" (Ø91 x 369 mm) | | Weight | 4.81 lb (2.18 kg) |
