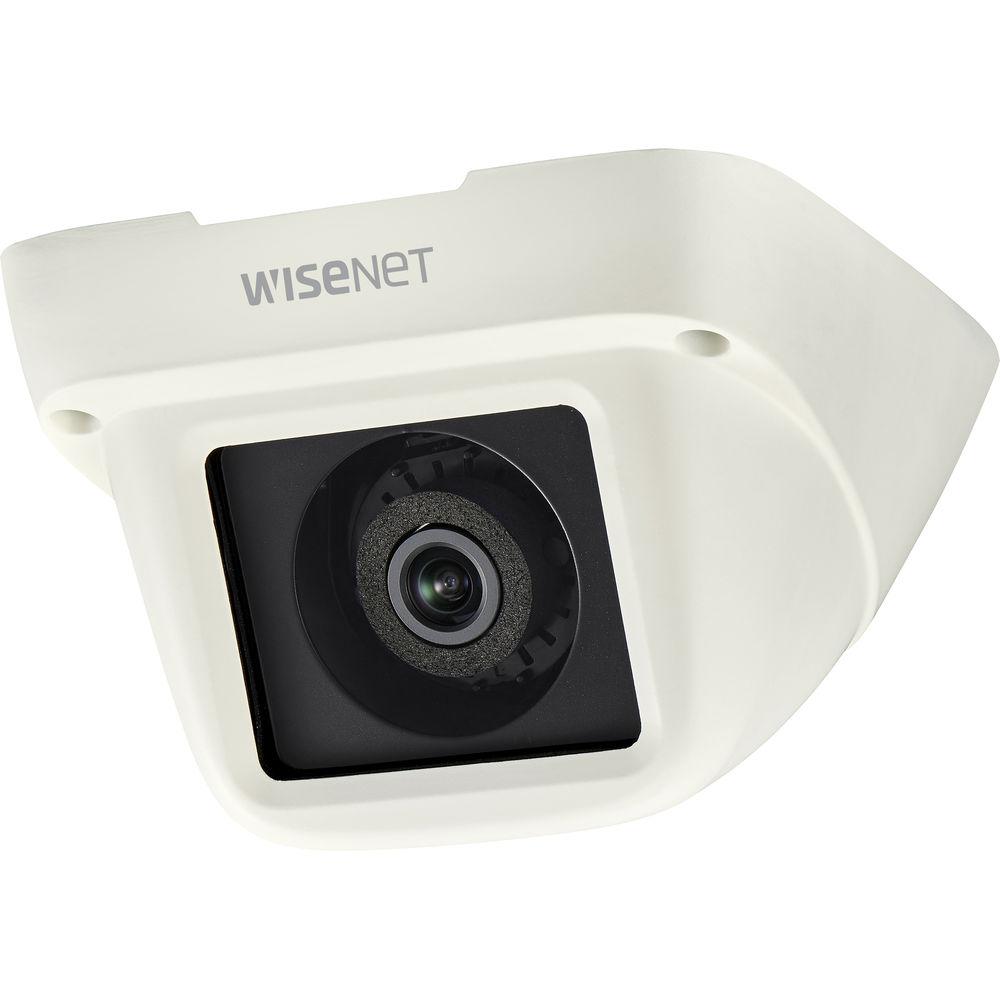

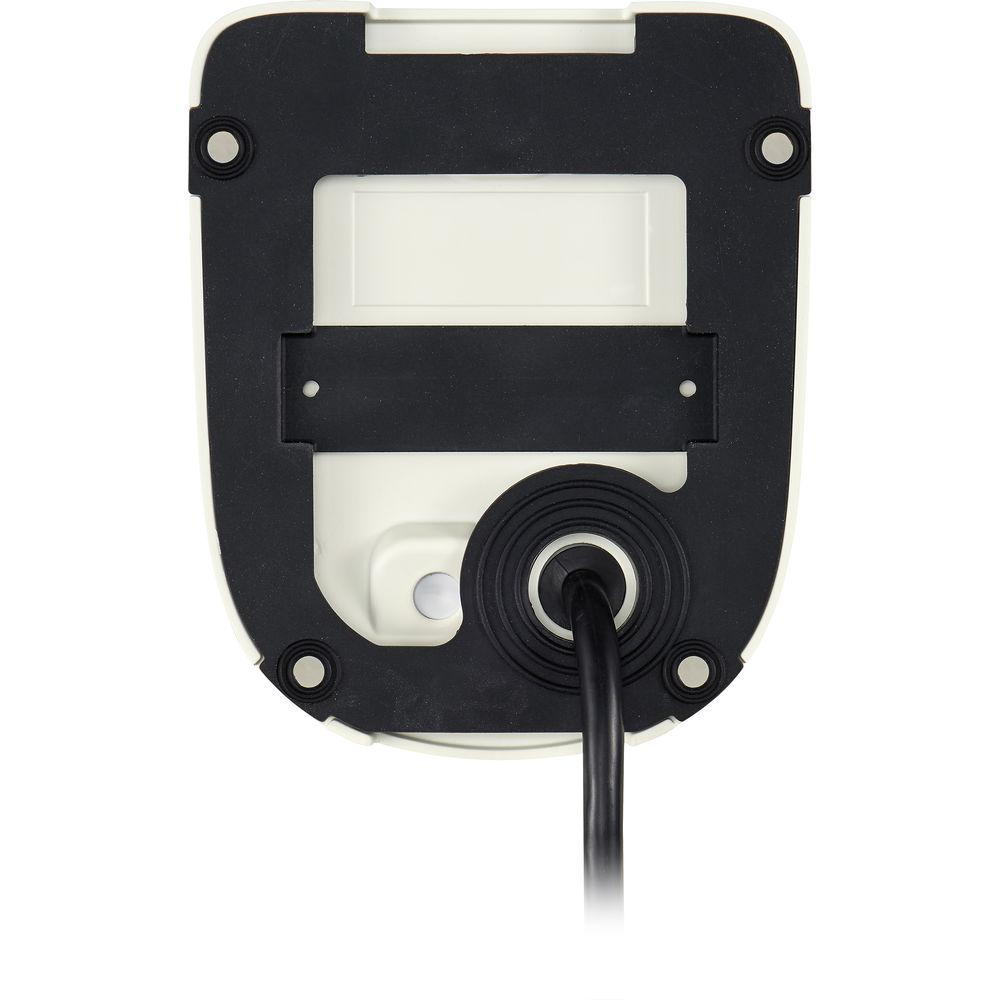

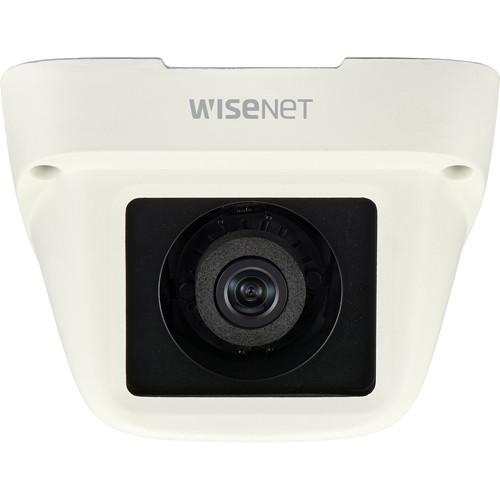

Product description Capture 2MP video in moving vehicles without camera shake with the WiseNet X Series XNV-6013M 2MP Outdoor Mobile Network Camera with M12 connector from Hanwha Techwin. Equipped with a 1/2.8" 2MP CMOS sensor and a 2.8mm fixed lens, the XNV-6013M captures video at resolutions up to 1920 x 1080 at 60 fps in a 107.4 x 62.2° field of view. The camera has an automatic digital IR cut filter and offers image enhancement features including a 150 dB wide dynamic range and automatic white balance for capturing images in varying lighting conditions.
The XNV-6013M has audio input and output connections for two-way audio communication. Moreover, it is IP67 and IK10 rated for weather and vandal resistance. Designed for easy setup, the XNV-6013M uses PoE technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices. - Up to 2MP (1920 x 1080) resolution
- Up to 60 fps at all supported resolutions (H.265/H.264)
- Color/B&W vision down to 0.04 lux at f/2.0
- Built-in 2.8mm fixed lens
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Automatic digital IR cut filter for day and night vision
- 150 dB wide dynamic range
- Video and audio analytics including tamper detection, loitering detection, directional detection, defocus detection, fog detection, virtual line, enter, exit, appear, disappear, audio detection, face detection, digital auto tracking, sound classification, motion detection, and handover
- Built-in microSD/SDHC/SDXC memory card slot for edge storage supports up to 256GB (microSD/SDHC/SDXC cards available separately)
- Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
- Integrated Lens Distortion Correction (LDC) technology
- M12 Ethernet with PoE technology for easy, clutter-free installation
- Input and output for two-way audio communication
- IP67, IP6K9K, and NEMA4X rated for outdoor use
- IK10-rated vandal resistance
In the Box Hanwha Techwin WiseNet X Series XNV-6013M 2MP Outdoor Mobile Network Camera (M12) Software CD Star-Shaped Wrench 4 x M4 Tapping Screws 4 x O-Rings 4 x Plastic Anchors Template Moisture Absorber Card Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series XNV-6013M 2MP Outdoor Mobile Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XNV-6013M Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Zoom | Digital: 24x | | Lens Field of View | Horizontal: 107.4°
Vertical: 62.2°
Diagonal: 122° | | IR Cut Filter | Digital | | Day/Night | Yes | | Minimum Illumination | Color: 0.04 Lux
B&W: 0.04 Lux | | Shutter Speed | 1/12,000 to 2 Seconds | | Camera Angle Adjustment | Horizontal: -5 to 5°
Vertical: -10 to 10° | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | | | Streaming | Two-Way | | Audio Formats | AAC, ADPCM, G.711, G.726 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | SUNAPI (HTTP API) | | Analytics | Tampering, Loitering, Directional Detection, Defocus Detection, Fog Detection, Virtual Line, Enter, Exit, Disappear, Appear, Audio Detection, Face Detection, Motion Detection, Digital Auto Tracking, and Sound Classification | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8.1, 10 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | None | | I/O Connections | 1 x M12 | | Video Management Software | SmartViewer, SSM | | Supported Languages | Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese
Turkish | | Certifications | UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 7.2 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -40 to 140°F / -40 to 60°C Startup: Above -22°F / -30°C | | Storage Temperature | -58 to 140°F / -50 to 60°C | | Operating Humidity | 0 to 89% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions | H: 2.8 x W: 4.1 x L: 5.0" / H: 72.3 x W: 103.7 x L: 126.8 mm | | Weight | 1.1 lb / 478 g |
