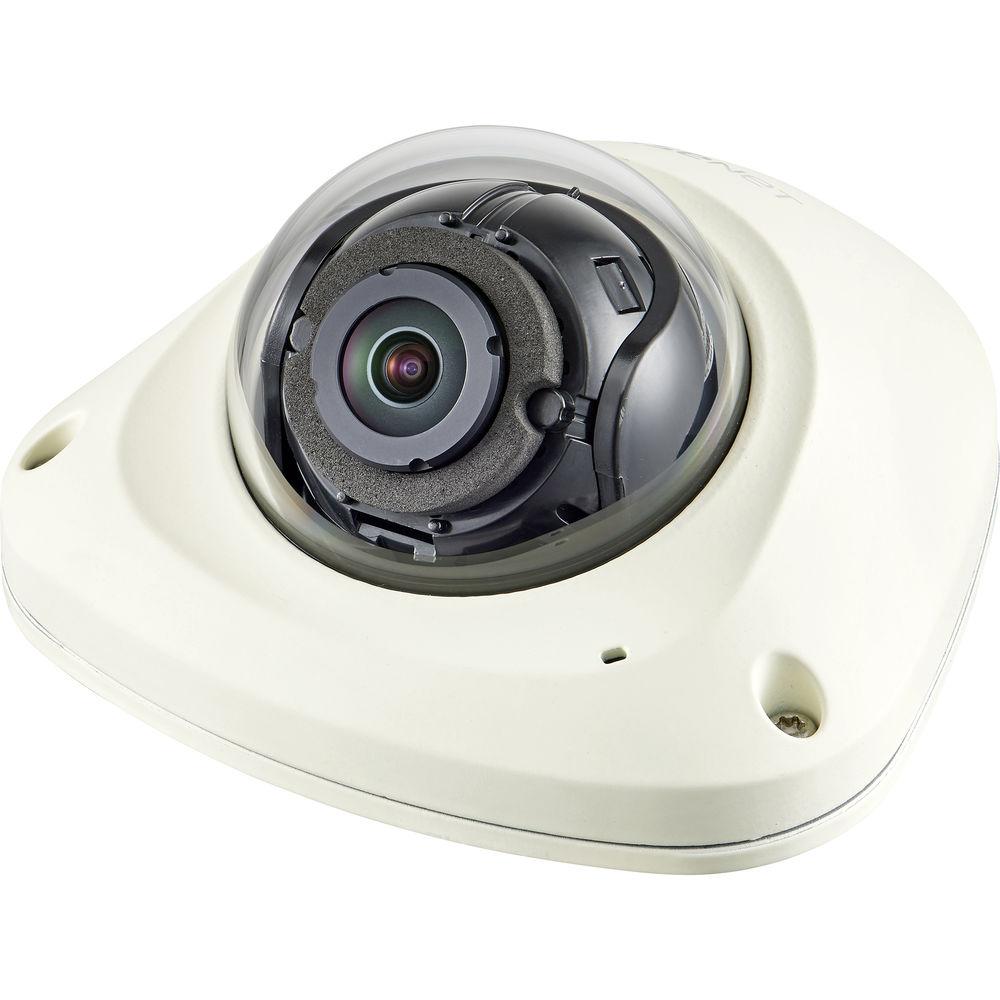

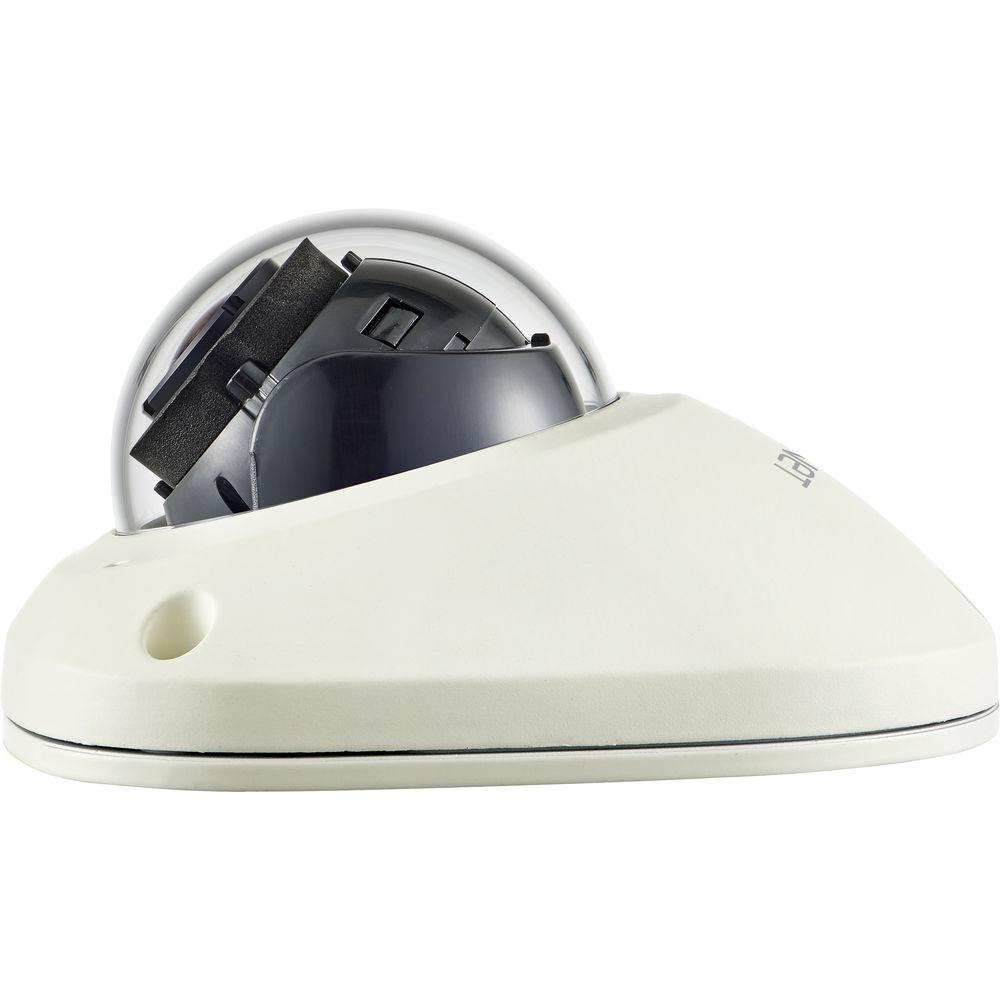

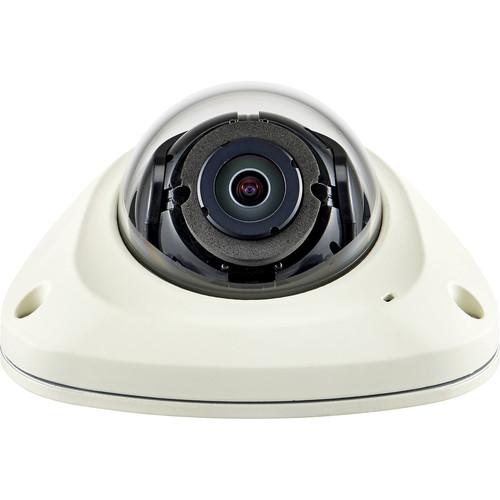

User Manual for Hanwha Techwin WiseNet X Series XNV-6022RM 2MP Outdoor Mobile Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet X Series XNV-6022RM
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
 |
User manual for the Hanwha Techwin WiseNet X Series XNV-6022RM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Capture 2MP video in moving vehicles without camera shake with the WiseNet X Series XNV-6022RM 2MP Outdoor Mobile Network Dome Camera with Night Vision with M12 connector from Hanwha Techwin. Equipped with a 1/2.8" 2MP CMOS sensor and a 3.6mm fixed lens, the XNV-6022RM captures video at resolutions up to 1920 x 1080 at 60 fps in a 94.8 x 49.3° field of view. The camera is equipped with an IR cut filter and IR LEDs for night vision with an effective range of up to 49'. Image enhancement features including a 150 dB wide dynamic range and automatic white balance enable the camera to capture images in varying lighting conditions.
The XNV-6022RM has audio input and output connections and a built-in microphone for two-way audio communication. Moreover, it is IP66 and IK10 rated for weather and vandal resistance. Designed for easy setup, the XNV-6022RM uses PoE technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices. - Up to 2MP (1920 x 1080) resolution
- Up to 60 fps at all supported resolutions (H.265/H.264)
- Automatic IR cut filter for day and night vision
- Color vision down to 0.04 lux at f/2.0
- IR LEDs for night vision up to 49'
- Built-in 3.6mm fixed lens
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- 150 dB wide dynamic range
- Video and audio analytics including tamper detection, loitering detection, directional detection, defocus detection, fog detection, virtual line, enter, exit, appear, disappear, audio detection, face detection, digital auto tracking, sound classification, motion detection, and handover
- Built-in microSD/SDHC/SDXC memory card slot for edge storage supports up to 256GB (microSD/SDHC/SDXC cards available separately)
- Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
- Integrated Lens Distortion Correction (LDC) technology
- M12 Ethernet with PoE technology for easy, clutter-free installation
- Input, output, and built-in microphone for two-way audio communication
- IP66 and NEMA4X rated for outdoor use
- IK10-rated vandal resistance
In the Box Hanwha Techwin WiseNet X Series XNV-6022RM 2MP Outdoor Mobile Network Dome Camera with Night Vision (M12) Software CD Star-Shaped Wrench 2 x M4 Tapping Screws 2 x Plastic Anchors Template Installation Bracket 2 x M4 Screws for Installation Bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series XNV-6022RM 2MP Outdoor Mobile Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XNV-6022RM Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 3.6mm | | Maximum Aperture | f/2 | | Zoom | Digital: 24x | | Lens Field of View | Horizontal: 94.8°
Vertical: 49.3°
Diagonal: 114.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.04 Lux
B&W: 0 Lux | | Shutter Speed | 1/12,000 to 2 Seconds | | Camera Angle Adjustment | Horizontal: -5 to 5°
Vertical: 0 to 67° | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 10 Streams | | | | Streaming | Two-Way | | Audio Formats | AAC, ADPCM, G.711, G.726 | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | SUNAPI (HTTP API) | | Analytics | Tampering, Loitering, Directional Detection, Defocus Detection, Fog Detection, Virtual Line, Enter, Exit, Disappear, Appear, Audio Detection, Face Detection, Motion Detection, Digital Auto Tracking, and Sound Classification | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows 7, 8.1, 10 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 | | | | Recording Media | microSD (Up to 256 GB) | | Pan/Tilt | None | | I/O Connections | 1 x M12 | | IR Range | 49.21' / 15.00 m | | Video Management Software | SmartViewer, SSM | | Supported Languages | Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese
Turkish | | Certifications | UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 6.7 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 131°F / -30 to 55°C Startup: Above -4°F / -20°C | | Storage Temperature | -58 to 140°F / -50 to 60°C | | Operating Humidity | 0 to 89% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions | H: 2.0 x W: 3.9 x L: 3.9" / H: 52.0 x W: 98.9 x L: 100.0 mm | | Weight | 0.6 lb / 295 g |
