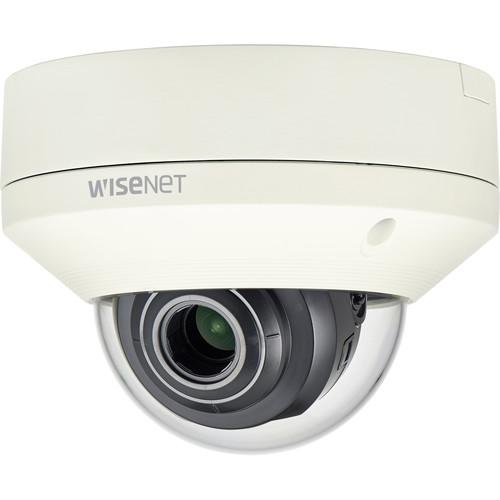

User Manual for Hanwha Techwin WiseNet X Series XNV-L6080 2MP Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet X Series XNV-L6080
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNet X Series XNV-L6080 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Keep a watchful eye on your property with the ivory WiseNet X Series XNV-L6080 2MP Outdoor Network Dome Camera from Hanwha Techwin. Equipped with a 1/2.8" 2MP CMOS sensor and a 3.2-10mm motorized varifocal lens, the XNV-L6080 captures video at resolutions up to 1920 x 1080 at 60 fps in fields of view ranging from 109 x 57.4° to 33.2 x 18.7°. The camera has an automatic IR cut filter and offers image enhancement features including a 120 dB wide dynamic range and automatic white balance for capturing images in varying lighting conditions.
The XNV-L6080 is IP66 and IK10 rated for weather and vandal resistance and uses PoE technology, enabling you to run just one wire for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices. - Up to 2MP (1920 x 1080) resolution
- Built-in 3.2-10mm 3.1x motorized varifocal lens
- Color vision down to 0.1 lux
- B&W vision down to 0.01 lux
- Up to 60 fps at all supported resolutions (H.265/H.264)
- H.265, H.264, and MJPEG video compression for efficient storage and bandwidth use
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- IR cut filter for day and night vision
- 120 dB wide dynamic range
- Video analytics including tamper detection, defocus detection, motion detection, and handover
- Built-in SD/SDHC/SDXC memory card slot for edge storage supports up to 256GB (SD/SDHC/SDXC cards available separately)
- Hallway view for monitoring vertical areas such as corridors, hallways, tunnels, and aisles
- Integrated Lens Distortion Correction (LDC) technology
- PoE technology for easy, clutter-free installation
- IP66 rated for outdoor use
- IK10-rated vandal resistance
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series XNV-L6080 2MP Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XNV-L6080 Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 3.2 to 10mm | | Maximum Aperture | f/1.6 - f/2.9 | | Zoom | Optical: 3.1x
Digital: 24x | | Lens Field of View | Horizontal: 109 to 33.2°
Vertical: 57.4 to 18.7°
Diagonal: 132 to 38° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0.01 Lux | | Shutter Speed | 1/12,000 to 2 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 354°
Vertical: 0 to 67° | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 5 Streams | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | SUNAPI (HTTP API) | | Analytics | Tampering, Defocus Detection, and Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows 7, 8.1, 10 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10 | | | | Recording Media | SD (Up to 256 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | Video Management Software | SmartViewer, SSM | | Supported Languages | Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese
Turkish | | Certifications | UL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 8 W | | Material of Construction | Aluminum | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Storage Temperature | -58 to 140°F / -50 to 60°C | | Operating Humidity | 0 to 89% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
