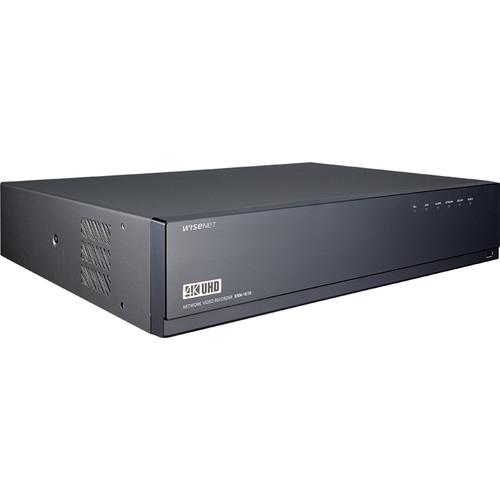

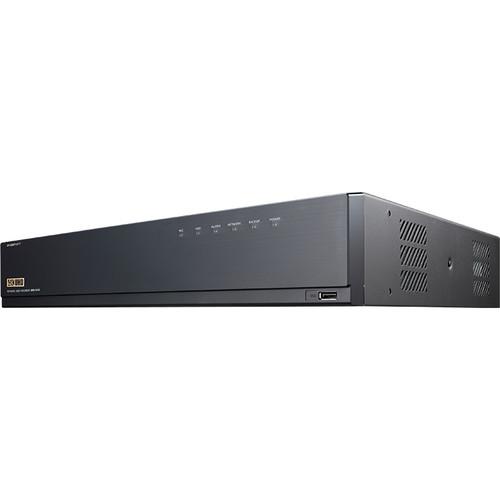

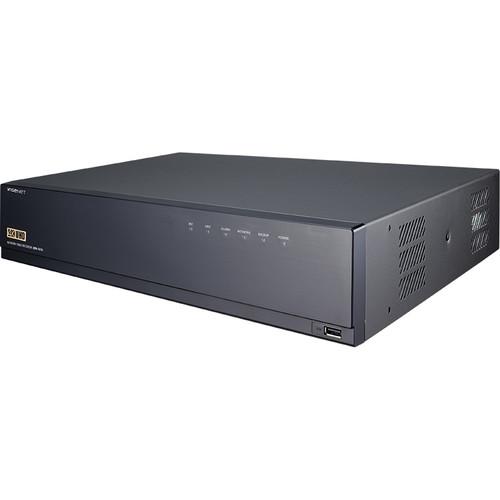

Product description Connect up to 16 cameras to the WiseNet X Series XRN-1610 16-Channel 12MP NVR from Hanwha Techwin. This NVR is compatible with cameras up to 12MP and compresses video using WiseStream technology for efficient and optimized network bandwidth use. HDMI and VGA video outputs allow for simultaneous live viewing on local monitors. Preinstalled with 2TB of HDD storage, the recorder can be expanded to host eight HDDs up to 6TB each for a maximum internal capacity of 48TB. - 16-channel NVR with 2TB HDD storage
- Up to 12MP recording on each channel
- HDMI and VGA video output for up to 4K display resolution
- ONVIF compliant (Profile S)
- Eight SATA drives support up to 6TB each
UPC: 849688008188 In the Box Hanwha Techwin WiseNet X Series XRN-1610 16-Channel 12MP NVR with 2TB HDD USB Mouse Power Cable Terminal Block Remote Control with Batteries Bracket Rack HDD SATA/Power Cable Mounting Screws Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X Series XRN-1610 16-Channel 12MP NVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XRN-1610 Specs | | | Video Input Resolution | Up to 16 Channels at CIF to 12 MP | | Protocols | Samsung, ONVIF Profile S | | Multi-Screen Display | Local Monitor: 1, 2V, 3V, 4, 6, 8, 9, 13, 16, Auto Sequence
Web: 1, 4, 9, 16, Auto Sequence | | Live Display | Local Monitor: 12 MP at 30 fps, 8 MP at 120 fps, 5 MP at 180 fps, 3 MP at 240 fps, 2 MP at 480 fps, 720p at 480 fps, D1 at 480 fps
Web: 5 MP at 30 fps, 3 MP at 60 fps, 2 MP at 120 fps, 720p at 240 fps, D1 at 480 fps | | | | Operating System | Embedded Linux | | Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) | | Bandwidth | 180 Mb/s | | Resolution | CIF to 12 MP | | Modes | Manual, Schedule (Continuous, Event), Event (Pre, Post) | | Event Trigger | Alarm Input (8), Video Loss, Camera Event (Sensor, MD, Video Analytics), VA Event (Tampering, Enter/Exit, Passing, Virtual Line, Appear/Disappear, Face Detection, Audio Detection), Defocus Camera Event | | Event Action | Email, PTZ Preset, Alarm Out, Buzzer, Monitor Out | | | | Bandwidth | 32 Mb/s (16 Channels Simultaneously) | | Users | Maximum 4 Users (1 x Local, 3 x Remote) | | Mode | Date/Time (Calendar), Event Log List, Text Search (POS, ANPR) | | Playback | Simultaneous: Maximum 16 Channels (Local Monitor, Network) | | Resolution | CIF to 12 MP | | Fisheye Dewarp Mode | Processed on Web or CMS | | Control | Fast, Slow, Forward, Backward, Move One Step Up/Down | | | | Capacity | 8 SATA Ports, Capacity up to 48 TB
2 TB Preinstalled | | Interface | 8 x SATA, 1 x eSATA, iSCSI | | Backup | BU/EXE (GUI), JPG/AVI (Network)
Maximum 16 Channel Play, Date-Time/Title Display | | | | Inputs/Outputs | 8 x Inputs, 4 x Outputs (NO/NC) Selectable | | | | Inputs | 16 Channels (Network) | | Compression | G.711, G.726, AAC (16/48 kHz) | | Communication | Two-Way (Pass-Through Between Camera and SSM) | | | | Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client) | | DDNS | iPOLiS DDNS | | Bandwidth | Transmission: Maximum 256 Mb/s with iSCSI Off, 128 Mb/s with iSCSI On | | Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | IP | IPv4, IPv6 | | Security | IP Address Filtering, User Access Log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) | | Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (GUI) | | OS Support | Window XP (Service Pack 2 or Above), Vista, 7, 8, 10
Mac OS X (10.7 or Above) | | Web Browser Support | Google Chrome 47, MS Edge 20
WMF: 1 Channel Live (800 x 600) Microsoft Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Viewer | Software: SSM, Webviewer, SmartViewer, iPOLiS Mobile Viewer | | CMS | SDK, CGI (SUNAPI) | | | | Camera | Register: Auto Mode, Manual Mode
Setup: IP Address, Add Profile, Edit, Bit Rate, Compression, GOP, Quality, Camera Event Setup (MD, VA, Tampering, Enter, Exit, Passing (Virtual Line), Appear, Disappear, Face Detection, Audio Detection), Video Setup (Simple Focus, Brightness, Contrast, Flip, Mirror, Iris, WDR, D/N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping, Hallway View Setup, Camera Webpage | | Configuration | Setup Wizard (Language Date/Time, Network, Auto Camera Configuration) | | Backup | Auto Recovery Backup (ARB) | | PTZ Control | Via GUI, Web Viewer, SPC-2000 (USB), 255 Presets | | Mobile OS Support | iOS and Android | | Protocol | RTP, RTSP, HTTP, CGI (SUNAPI) | | Control | Live (16-Channel): Multi-Profile Support, Playback (1-Channel, 2 MP Maximum) | | Number of Remote Users Supported | Mobile: 3 x Search, 10 x Live Unicast, 20 x Live Multicast | | System Control | Mouse, IR Remocon, Web, SPC-2000 (USB) | | | | LED Indicators | Front: Power Status, HDD Action, Alarm Status, Record Status, Network Action, Backup | | USB | 1 x Front, 1 x Rear | | HDMI | 1 x HDMI, Supports Live, Playback, Setup
Supports up to 4K (3840 x 2160, Single Monitor Mode) | | VGA | 1 x VGA, Supports Live Screen up to 16 Divisions | | Audio | 1 x RCA, Line Out | | Serial | 1 x UPS (Plan to Support as Project Basis) | | Ethernet | 2 x Ethernet (LAN/WAN, 1 Gb/s)
LAN: Downlink to Camera, PoE (PoE+) Hub
WAN: Uplink to CMS | | Alarm | 8 x Inputs (Terminal Block)
4 x Outputs (Terminal Block) | | Reset | Factory Reset, Alarm Reset | | | | System Log | Maximum 20,000 (System Log, Event Log) | | | | Input Voltage | 100 to 240 VAC | | Maximum Power Consumption | 76.3 W with 8 HDDs | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 85% RH | | Material | Metal | | Dimensions | 17.3 x 3.5 x 15.2" / 440 x 88 x 385 mm | | Weight | 12 lb / 5.4 kg | | | | Package Weight | 16.4 lb | | Box Dimensions (LxWxH) | 21.5 x 19.5 x 7.0" |
