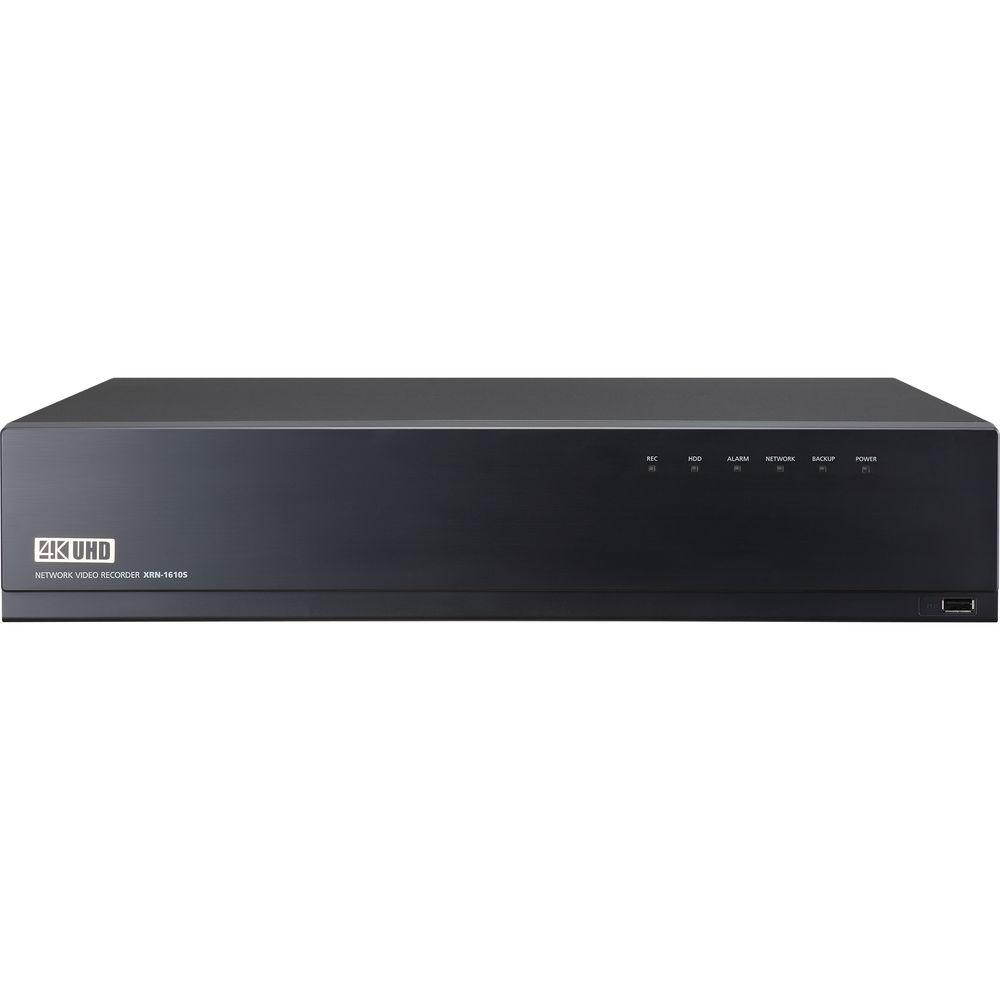

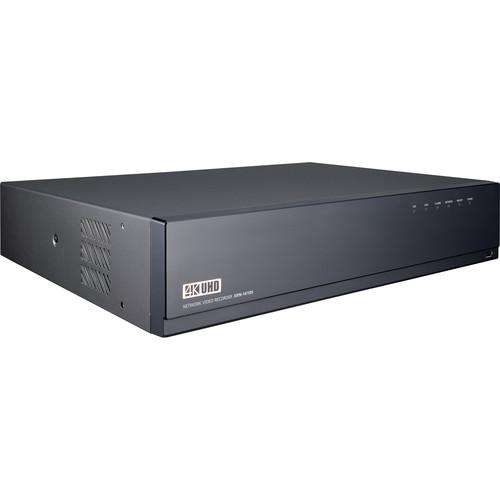

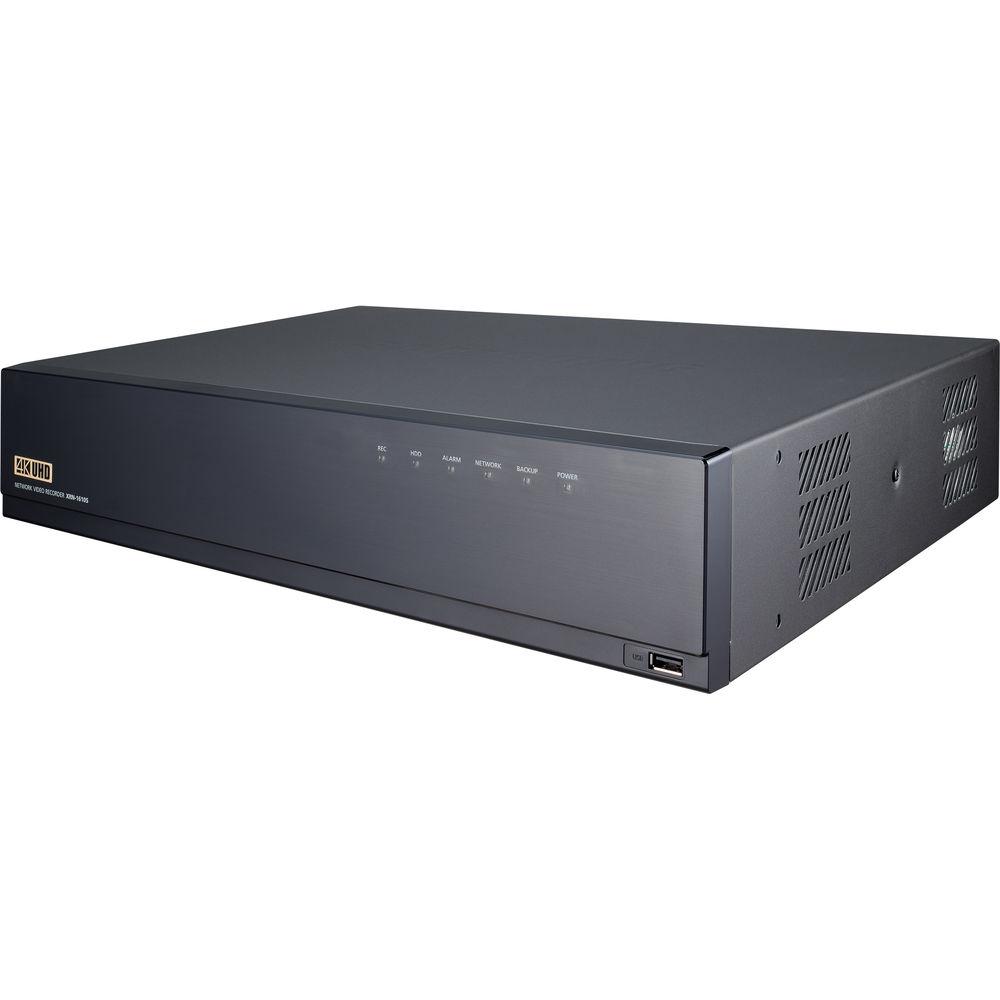

Product description Connect and power up to 16 cameras with the WiseNet X XRN-1610S 16-Channel 12MP NVR with 16 PoE/PoE+ from Hanwha Techwin. This NVR is compatible with cameras up to 12MP and compresses video using WiseStream technology for efficient and optimized network bandwidth use. HDMI and VGA video outputs allow for simultaneous live viewing on local monitors. This NVR comes preinstalled with a 24TB HDD to store video from all 16 channels. All 16 Ethernet ports have built-in PoE, which eliminates the need for optional PoE injectors. Connected cameras and network devices can transmit data and receive power from a single Ethernet cable. - 16-channel NVR with built-in PoE and a 24TB HDD
- Up to 12MP recording on each channel
- HDMI and VGA video output for up to 4K display resolution
- ONVIF compliant (Profile S)
- Four SATA ports each support up to 8TB HDDs
UPC: 849688007198 In the Box Hanwha Techwin WiseNet X XRN-1610S 16-Channel 12MP NVR with 16 PoE/PoE+ with 24TB HDD USB Mouse Power Cable Terminal Block Remote Control with Batteries Bracket Rack SATA Power Cable SATA Data Cable Mounting Screws Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X XRN-1610S 16-Channel 12MP NVR with 16 PoE PoE with 24TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XRN-1610S Specs | | | Video Input Resolution | Up to 16 Channels at CIF to 12 MP | | Protocols | Samsung, ONVIF Profile S | | Multi-Screen Display | Local Monitor: 1, 2V, 3V, 4, 6, 8, 9, 13, 16, Auto Sequence
Web: 1, 4, 9, 16, Auto Sequence | | Live Display | Local Monitor: 12 MP at 30 fps, 8 MP at 120 fps, 5 MP at 180 fps, 3 MP at 240 fps, 2 MP at 480 fps, 720p at 480 fps, D1 at 480 fps
Web: 5 MP at 30 fps, 3 MP at 60 fps, 2 MP at 120 fps, 720p at 240 fps, D1 at 480 fps | | | | Operating System | Embedded Linux | | Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) | | Output Bandwidth | Recording: 180 Mb/s | | Resolution | CIF to 12 MP | | Modes | Manual, Schedule (Continuous, Event), Event (Pre, Post) | | Event Trigger | Alarm Input (8), Video Loss, Camera Event (Sensor, MD, Video Analytics), VA Event (Tampering, Enter/Exit, Passing, Virtual Line, Appear/Disappear, Face Detection, Audio Detection), Defocus Camera Event | | Event Action | Email, PTZ Preset, Alarm Out, Buzzer, Monitor Out | | | | Bandwidth | Playback: 32 Mb/s (16 Channels Simultaneously) | | Users | Maximum 4 Users (1 x Local, 3 x Remote) | | Mode | Date/Time (Calendar), Event Log List, Text Search (POS, ANPR) | | Playback | Simultaneous: Maximum 16 Channels (Local Monitor, Network) | | Resolution | CIF to 12 MP | | Fisheye Dewarp Mode | Processed on Web or CMS | | Control | Fast Forward/Backward, Slow Forward/Backward, Move One Step Up/Down | | | | Capacity | 4 SATA Ports, Capacity up to 32 TB
24 TB Preinstalled | | Storage Interface | 4 x SATA, 1 x eSATA, iSCSI | | Backup | BU/EXE (GUI), JPG/AVI (Network)
Maximum 16 Channels Play, Date-Time/Title Display | | | | Inputs/Outputs | 8 x Inputs, 4 x Outputs (NO/NC Selectable) | | | | Inputs | 16 Channels (Network) | | Compression | G.711, G.726, AAC (16/48 kHz) | | Communication | Two-Way (Pass-Through Between Camera and SSM) | | | | Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client) | | DDNS | iPOLiS DDNS | | Bandwidth | Transmission: Maximum 256 Mb/s with iSCSI Off, 128 Mb/s with iSCSI On | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | IP | IPv4, IPv6 | | Security | IP Address Filtering, User Access Log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) | | Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (GUI) | | OS Support | Window XP (Service Pack 2 or Above), Vista, 7, 8, 10
Mac OS X (10.7 or Above) | | Web Browser Support | Google Chrome 47, MS Edge 20
WMF: 1 Channel Live (800 x 600) Microsoft Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X Only) | | Viewer | Software: SSM, Webviewer, SmartViewer, iPOLiS Mobile Viewer | | CMS | SDK, CGI (SUNAPI) | | | | Camera | Register: Plug-and-Play, Manual Mode
Setup: IP Address, Add Profile, Edit, Bit Rate, Compression, GOP, Quality
Camera Event Setup (MD, VA, Tampering, Enter, Exit, Passing (Virtual Line), Appear, Disappear, Face Detection, Audio Detection)
Video Setup (Simple Focus, Brightness, Contrast, Flip, Mirror, Iris, WDR, D/N, SSNR, Shutter, SSDR, DIS)
Fisheye Dewarping, Hallway View Setup, Camera Webpage | | Camera Control | PoE: Monitor PoE/PoE+ Power Consumption, On/Off Control for Each PoE/PoE+ Camera, Remote Reset for Each PoE/PoE+ Camera
Time Sync: NVR Time Protocol for PoE/PoE+ Camera (Time Sync Based on NVR Time) | | Configuration | Setup Wizard (Language Date/Time, Network, Auto Camera Configuration) Selectable Between Plug-and-Play and Manual Mode | | Backup | Auto Recovery Backup (ARB) | | PTZ Control | Via GUI, Webviewer, SPC-2000 (USB), 255 Presets | | Mobile OS Support | iOS and Android | | Protocol | RTP, RTSP, HTTP, CGI (SUNAPI) | | Control | Live (16-Channel): Multi-Profile Support, Playback (1-Channel, 2 MP Maximum) | | Number of Remote Users Supported | Mobile: 3 x Search, 10 x Live Unicast, 20 x Live Multicast | | System Control | Mouse, IR Remocon, Web, SPC-2000 (USB) | | | | LED Indicators | Front: Power Status, HDD Action, Alarm Status, Record Status, Network Action, Backup | | USB | 1 x Front, 1 x Rear | | HDMI | 1 x HDMI, Supports Live, Playback, Setup
Supports up to 4K (3840 x 2160, Single Monitor Mode) | | VGA | 1 x VGA, Supports Live Screen up to 16 Divisions | | Audio | 1 x RCA, Line Out | | Serial | 1 x RS-232C | | Ethernet | 2 x Ethernet (LAN/WAN, 1 Gb/s)
LAN: Downlink to Camera, PoE (PoE+) Hub
WAN: Uplink to CMS | | Alarm | 8 x Inputs (Terminal Block)
4 x Outputs (Terminal Block) | | Reset | Factory Reset, Alarm Reset | | | | System Log | Maximum 20,000 (System Log, Event Log) | | | | Input Voltage | 100 to 240 VAC | | Maximum Power Consumption | 271.9 W with 4 HDDs, PoE/PoE+ On
51.9 W with 4 HDDs, PoE/PoE+ Off | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 85% RH | | Material | Metal | | Dimensions | 17.3 x 3.5 x 15.2" / 440 x 88 x 385 mm | | Weight | 11.2 lb / 5.1 kg |
