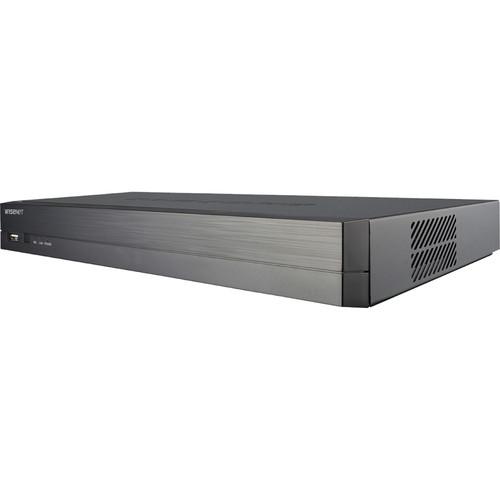

User Manual for Hanwha Techwin WiseNet X XRN-410S 4-Channel 8MP PoE NVR Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet X XRN-410S 4-Channel
- Product category: Network Video Recorders (NVRs) Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Network Video Recorders (NVRs)
|
User manual for the Hanwha Techwin WiseNet X XRN-410S 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Stream and record up to four video channels with the WiseNet X XRN-410S 4-Channel 8MP PoE NVR from Hanwha Techwin, at resolutions of up to 8MP. Equipped with one fixed SATA port, the NVR can be configured to have an internal storage of up to 6TB (HDD available separately). External storage options include PCs via Internet connection, network servers, and USB storage devices. Four PoE/PoE+ ports provide power and video connection to network cameras. WiseStream H.265/H.264 and MJPEG compression are supported, enabling you to choose the format that works best for your application.
The NVR enables simultaneous live view and playback of up to four channels at resolutions up to 3840 x 2160 via its HDMI and VGA ports. Up to four channels can be simultaneously recorded at full frame rate 8MP resolution, with an incoming bandwidth of 50 Mbps. The NVR supports two-way audio communication. Internet connectivity enables remote monitoring via PCs as well as from Android and iOS devices. - HDMI and VGA video output
- Supports P2P configuration
In the Box Hanwha Techwin WiseNet X XRN-410S 4-Channel 8MP PoE NVR Mouse Power Cord Power Adapter SATA Cable & HDD Fixing Screws Terminal Block Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X XRN-410S 4-Channel 8MP PoE NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XRN Series Specs | | | Video Inputs | 4 channels | | Video Resolution | CIF to 8 MP | | Interface | HDMI
VGA | | Resolution | Live Performance:
8 MP at 60 fps
5 MP at 90 fps
3 MP at 120 fps
2 MP at 240 fps
720p at 240 fps
D1 at 240 fps | | Multi-Screen Display | Live on Local Monitor: 1 / 2V / 3V / 4 / auto sequence
Live on Web: 1 / 4 / auto sequence | | | | Operating System | Embedded Linux | | Recording Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) | | Recording Resolution | CIF to 8 MP | | Bandwidth | Recording: 50 Mbps
Transmission: 64 Mbps | | Recording Mode | Manual, schedule (continuous/event), event (pre/post) | | Event Trigger | Alarm input x 4, video loss, camera event (sensor, MD, video analytics, defocus) | | Event Action | Email, PTZ preset, alarm out, buzzer, monitor out | | Playback | 32 Mbps, 4 channels simultaneously | | Search Modes | Date & time (calendar), event log list, text search (POS, ANPR), ARB search, smart search (virtual line with direction, enter/exit) | | Playback Control | Fast/slow, forward/backward, move one step up/down | | Internal HDD | 1 SATA port, capacity up to 6 TB (HDD available separately) | | Video File Backup | USB: BU, EXE
Web/CMS: JPEG, AVI | | Audio | 4-channel input (network)
1 x RCA, output | | Audio Compression | G.711, G.726, AAC (16/48 kHz) | | Sensor | 4 x inputs (NO)
2 x outputs (NO/NC) | | Audio Communication | 2-way | | | | Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (server, client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (server, client) | | DDNS | Hanwha security DDNS | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | IP | IPv4, IPv6 | | Security | IP address filtering, user access log, 802.1x authentication, encryption | | Language | GUI/Web: English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (simplified), Japanese, Thai | | OS Supported | Windows 7, 8, 10
Mac OS X 10.8, 10.9, 10.10, 10.11 | | Supported Web Browsers | Non-Plugin: Google Chrome 47, Microsoft Edge 20
Plugin: Microsoft Internet Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Viewer | Software Type: SSM, web viewer, SmartViewer, Wisenet mobile
CMS Support: SDK/CGI (SUNAPI) | | | | Camera Setup | Registration: PnP mode, manual mode
Setup Items: IP address, add profile edit, bit rate, compression, GOP, quality, camera MD setup, camera video setup (simple focus, brightness/contrast, flip/mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), fisheye dewarping (web), hallway view setup, camera web page | | Camera Control | Monitor PoE power consumption, on/off control for each PoE camera, remote reset for each PoE camera | | Configuration | Setup wizard (date/time, network, auto camera configuration), P2P (QR code) | | Redundancy | ARB | | PTZ | Control via GUI/Webviewer
255 presets | | Smartphone Compatibility | OS: iOS & Android
Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
Live 4-Channel Control: Multi-profile support; playback - 1 channel, event push
Maximum Remote Users: Search - 3; live unicast - 10; live multicast - 20 | | System Control | Mouse, IR remote control, web | | | | Indicators | LED indicator x 3
Power status, LAN, record | | Connector / Interface | 1 x VGA, video output
1 x HDMI, video output
1 x RCA, audio output
4 x PoE/PoE+ ports (100 Mbps)
1 x WAN port (1 Gbps)
4 x alarm outputs
2 x alarm inputs
1 x USB 3.0 on rear panel
1 x USB 2.0 on front panel
1 x reset switch
1 x VDC power | | | | System Log | Log List: 20,000 max. (for each system log & event) | | | | Power Supply | 54 VDC, 1.67 A | | Power Consumption | Maximum 13W | | PoE Budget | Maximum 50 W | | Working Environment | 32 to 104°F (0 to 40°C)
20-85% RH | | Rack Mount | 1 RU | | Dimensions | 17.32 x 8.22 x 1.89" (30 x 20.9 x 4.8 cm) | | Weight | 3.73 lb (1.69 kg), with 2 TB HDD | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 16.3 x 11.8 x 6.1" |
