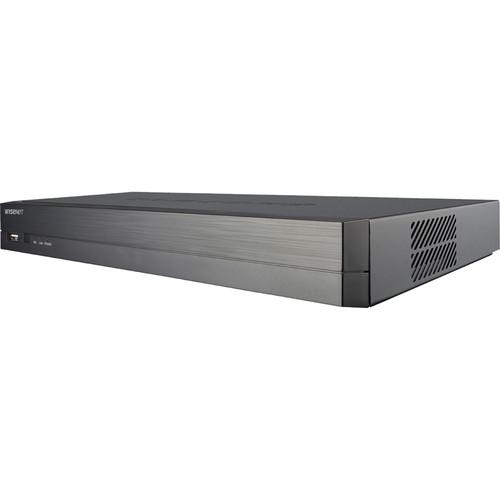

User Manual for Hanwha Techwin WiseNet X XRN-810S 8-Channel 8MP PoE NVR with 12TB HDD Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNet X XRN-810S 8-Channel
- Product category: Network Video Recorders (NVRs) Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Network Video Recorders (NVRs)
|
User manual for the Hanwha Techwin WiseNet X XRN-810S 8-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description Stream and record up to eight video channels with the XRN-810S 8MP PoE NVR from Hanwha Techwin, at resolutions of up to 8MP. It includes two 6TB HDDs for a total internal capacity of 12TB. External storage options include PCs via Internet connection, network servers, USB storage devices, and eSATA devices. Eight PoE ports provide power and video connection to network cameras. WiseStream H.265/H.264 and MJPEG compression are supported, enabling you to choose the format that works best for your application.
The NVR enables simultaneous live viewing and playback of up to eight channels at resolutions up to 3840 x 2160 via its HDMI and VGA ports. Up to eight channels can be simultaneously recorded at full frame rate in 8MP resolution with an incoming bandwidth of 100 Mbps. The NVR supports two-way audio communication. Internet connectivity enables remote monitoring via PCs as well as from Android and iOS devices. - HDMI and VGA simultaneous video output
- Supports ARB (Auto Recovery Backup)
In the Box Hanwha Techwin WiseNet X XRN-810S 8-Channel 8MP PoE NVR with 12TB HDD Mouse Power Cord Remote Control and AAA Battery Bracket Rack and Screws Terminal Block Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNet X XRN-810S 8-Channel 8MP PoE NVR with 12TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XRN Series Specs | | | Video Input | Up to 8 channels | | Video Resolution | CIF to 8 MP | | Protocols | Samsung, ONVIF | | Interface | HDMI
VGA | | Resolution | Local Monitor: 8 MP at 60 fps; 5 MP at 90 fps; 3 MP at 120 fps; 2 MP at 240 fps; 720p at 240 fps; D1 at 240 fps | | Multi-Screen Display | Local Monitor: 1 / 2V / 3V / 4 / 6 / 8 / auto sequence
Web: 1 / 4 / 8 / auto sequence | | | | Operating System | Embedded Linux | | Recording Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) | | Recording Resolution | CIF to 8 MP | | Bandwidth | Recording: 100 Mbps
Transmission: 128 Mbps | | Recording Mode | Manual, schedule (continuous/event), event (pre/post) | | Event Trigger | Alarm input x 4, video loss, camera event (sensor, MD, video analytics, defocus) | | Event Action | Email, PTZ preset, alarm out, buzzer, monitor out | | Playback | 32 Mbps, 8 channels simultaneously | | User Limit | 3 users (1 local, 3 remote) | | Search Modes | Date & time (calendar), event log list, text search (POS, ANPR), ARB search, smart search (virtual-line with direction, enter/exit) | | Playback Control | Fast/slow, forward/backward, move one step up/down | | Internal HDD | 2 SATA ports, capacity up to 12 TB
12 TB pre-installed | | External HDD | eSATA/iSCSI storage | | Sensor | 4 x inputs
3 x outputs | | Video File Backup | USB: BU, EXE
Web/CMS: JPEG, AVI | | Audio | 8-channel input (network)
1 x RCA, output | | Audio Compression | G.711, G.726, AAC (16/48 kHz) | | Audio Communication | 2-way | | | | Protocol Support | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (server, client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (server, client) | | DDNS | Hanwha security DDNS | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | IP | IPv4, IPv6 | | Security | IP address filtering, user access log, 802.1x authentication, encryption | | Language | GUI/Web: English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (simplified), Japanese, Thai | | OS Supported | Windows 7, 8, 10
Mac OS X 10.8, 10.9, 10.10, 10.11 | | Supported Web Browsers | Non-Plugin: Google Chrome 47, Microsoft Edge 20
Plugin: Microsoft Internet Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only) | | Viewer | Software Type: SSM, Webviewer, SmartViewer, Wisenet mobile
CMS Support: SDK/CGI (SUNAPI) | | | | Camera Setup | Register: PnP mode, manual mode
Setup Items: IP address, add profile edit, bit rate, compression, GOP, quality, camera MD setup, camera video setup (simple focus, brightness/contrast, flip/mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), fish-eye dewarping (web), hallway view setup, camera webpage | | Camera Control | Monitor PoE power consumption, on/off control for each PoE camera, remote reset for each PoE camera | | Configuration | Setup wizard (date/time, network, auto camera configuration), P2P (QR code) | | Redundancy | ARB | | PTZ | Control via GUI/Webviewer
255 presets | | Smart Phone | OS: iOS & Android
Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
Live 8-Channel Control: Multi-profile support; playback - 1 channel
Maximum Remote Users: Search - 3; live unicast - 10; live multicast - 20 | | System Control | Mouse, IR remote control, Web | | | | Indicators | HDD action, alarm, power, record, backup, network | | Connector / Interface | 1 x VGA, video output
1 x HDMI, video output
1 x RCA, audio output
8 x PoE/PoE+ ports (100 Mbps)
1 x WAN port (1 Gbps)
4 x alarm inputs
3 x alarm outputs
1 x USB 3.0 on rear panel
1 x USB 2.0 on front panel
1 x reset switch
1 x VAC power
1 x power on/off switch | | | | System Log | Log List: 20,000 max. (for each system log & event) | | | | Power Supply | 100-240 VAC, ±10% | | Power Consumption | Maximum: 19 W | | Working Environment | 32 to 104°F (0 to 10°C)
20-85% RH | | Rack Mount | 1 RU | | Dimensions | 14.57 x 12.6 x 1.73" (37 x 32 x 4.4 cm) | | Weight | 7.4 lb (3.4 kg), with 2 TB HDD |
