Hanwha Techwin WiseNet X XRN-810S 8-Channel

Search your instruction manual in PDF to download

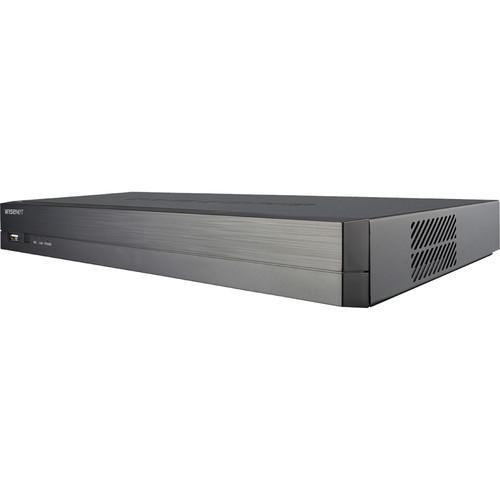

User Manual for Hanwha Techwin WiseNet X XRN-810S 8-Channel 8MP PoE NVR with 6TB HDD

Click to enlarge the picture
Hanwha Techwin WiseNet X XRN-810S 8-Channel 8MP PoE NVR with 6TB HDD Contents of the user manual for the Hanwha Techwin WiseNet X XRN-810S 8-Channel
  • Product category: Network Video Recorders (NVRs) Hanwha Techwin
  • Brand: Hanwha Techwin
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hanwha Techwin Network Video Recorders (NVRs)

User manual for the Hanwha Techwin WiseNet X XRN-810S 8-Channel contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hanwha Techwin product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!



Product description

Stream and record up to eight video channels with the XRN-810S 8MP PoE NVR from Hanwha Techwin, at resolutions of up to 8MP. It includes 6TB of HDD internal storage that can be expanded to 12TB using two hard drives of 6TB each. External storage options include PCs via Internet connection, network servers, USB storage devices, and eSATA devices. Eight PoE ports provide power and video connection to network cameras. WiseStream H.265/H.264 and MJPEG compression are supported, enabling you to choose the format that works best for your application.

The NVR enables simultaneous live viewing and playback of up to eight channels at resolutions up to 3840 x 2160 via its HDMI and VGA ports. Up to eight channels can be simultaneously recorded at full frame rate in 8MP resolution with an incoming bandwidth of 100 Mbps. The NVR supports two-way audio communication. Internet connectivity enables remote monitoring via PCs as well as from Android and iOS devices.
  • HDMI and VGA simultaneous video output
  • Supports P2P service
  • Supports ARB (Auto Recovery Backup)
In the Box Hanwha Techwin WiseNet X XRN-810S 8-Channel 8MP PoE NVR with 6TB HDD
  • Mouse
  • Power Cord
  • Remote Control and AAA Battery
  • Bracket Rack and Screws
  • Terminal Block
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hanwha Techwin WiseNet X XRN-810S 8-Channel 8MP PoE NVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hanwha Techwin XRN Series Specs

    Video Input Up to 8 channels
    Video Resolution CIF to 8 MP
    Protocols Samsung, ONVIF
    Interface HDMI
    VGA
    Resolution Local Monitor: 8 MP at 60 fps; 5 MP at 90 fps; 3 MP at 120 fps; 2 MP at 240 fps; 720p at 240 fps; D1 at 240 fps
    Multi-Screen Display Local Monitor: 1 / 2V / 3V / 4 / 6 / 8 / auto sequence
    Web: 1 / 4 / 8 / auto sequence
    Operating System Embedded Linux
    Recording Compression H.265, H.264, MJPEG, WiseStream (H.265, H.264)
    Recording Resolution CIF to 8 MP
    Bandwidth Recording: 100 Mbps
    Transmission: 128 Mbps
    Recording Mode Manual, schedule (continuous/event), event (pre/post)
    Event Trigger Alarm input x 4, video loss, camera event (sensor, MD, video analytics, defocus)
    Event Action Email, PTZ preset, alarm out, buzzer, monitor out
    Playback 32 Mbps, 8 channels simultaneously
    User Limit 3 users (1 local, 3 remote)
    Search Modes Date & time (calendar), event log list, text search (POS, ANPR), ARB search, smart search (virtual-line with direction, enter/exit)
    Playback Control Fast/slow, forward/backward, move one step up/down
    Internal HDD 2 SATA ports, capacity up to 12 TB
    6 TB pre-installed
    External HDD eSATA/iSCSI storage
    Sensor 4 x inputs
    3 x outputs
    Video File Backup USB: BU, EXE
    Web/CMS: JPEG, AVI
    Audio 8-channel input (network)
    1 x RCA, output
    Audio Compression G.711, G.726, AAC (16/48 kHz)
    Audio Communication 2-way
    Protocol Support TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (server, client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (server, client)
    DDNS Hanwha security DDNS
    Max. Remote Users Search: 3
    Live Unicast: 10
    Live Multicast: 20
    IP IPv4, IPv6
    Security IP address filtering, user access log, 802.1x authentication, encryption
    Language GUI/Web: English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (simplified), Japanese, Thai
    OS Supported Windows 7, 8, 10
    Mac OS X 10.8, 10.9, 10.10, 10.11
    Supported Web Browsers Non-Plugin: Google Chrome 47, Microsoft Edge 20
    Plugin: Microsoft Internet Explorer 11, Mozilla Firefox 43, Apple Safari 9 (Mac OS X only)
    Viewer Software Type: SSM, Webviewer, SmartViewer, Wisenet mobile
    CMS Support: SDK/CGI (SUNAPI)
    Camera Setup Register: PnP mode, manual mode
    Setup Items: IP address, add profile edit, bit rate, compression, GOP, quality, camera MD setup, camera video setup (simple focus, brightness/contrast, flip/mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), fish-eye dewarping (web), hallway view setup, camera webpage
    Camera Control Monitor PoE power consumption, on/off control for each PoE camera, remote reset for each PoE camera
    Configuration Setup wizard (date/time, network, auto camera configuration), P2P (QR code)
    Redundancy ARB
    PTZ Control via GUI/Webviewer
    255 presets
    Smart Phone OS: iOS & Android
    Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
    Live 8-Channel Control: Multi-profile support; playback - 1 channel
    Maximum Remote Users: Search - 3; live unicast - 10; live multicast - 20
    System Control Mouse, IR remote control, Web
    Indicators HDD action, alarm, power, record, backup, network
    Connector / Interface 1 x VGA, video output
    1 x HDMI, video output
    1 x RCA, audio output
    8 x PoE/PoE+ ports (100 Mbps)
    1 x WAN port (1 Gbps)
    4 x alarm inputs
    3 x alarm outputs
    1 x USB 3.0 on rear panel
    1 x USB 2.0 on front panel
    1 x reset switch
    1 x VAC power
    1 x power on/off switch
    System Log Log List: 20,000 max. (for each system log & event)
    Power Supply 100-240 VAC, ±10%
    Power Consumption Maximum: 19 W
    Working Environment 32 to 104°F (0 to 10°C)
    20-85% RH
    Rack Mount 1 RU
    Dimensions 14.57 x 12.6 x 1.73" (37 x 32 x 4.4 cm)
    Weight 7.4 lb (3.4 kg), with 2 TB HDD
