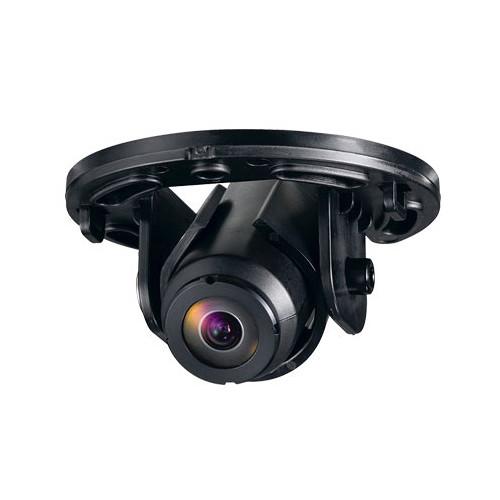

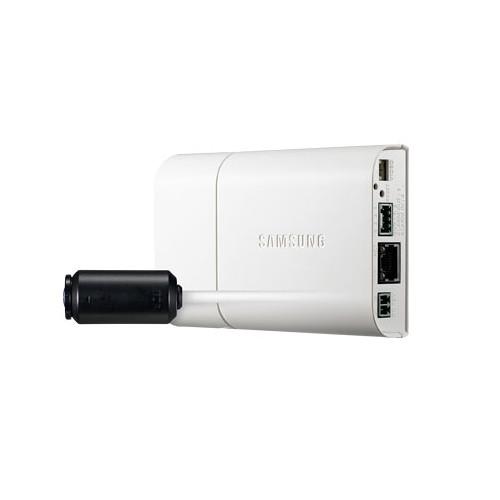

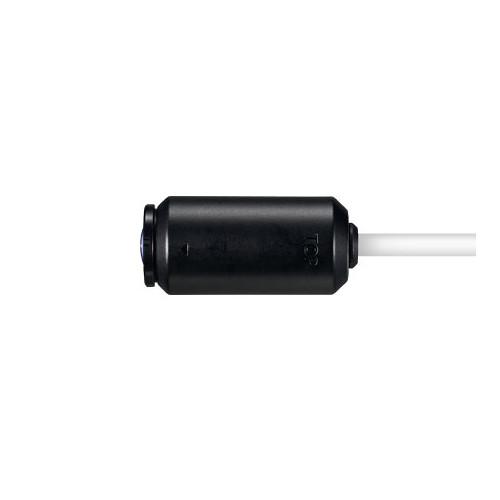

Product description The WiseNetIII SNB-6011B 2MP Modular Covert Network Camera from Samsung features 1/2.8" CMOS sensor and a 2.4mm fixed pinhole lens. The 2.4mm pinhole lens provides a 134° horizontal viewing angle. The camera offers WDR up to 120 dB for capturing images under varied lighting conditions. It features a microSDXC memory card slot which in the main unit. The WiseNetIII SNB-6011B camera can be used in covert locations as well as in installations where space is limited. The camera head is separate from the main unit allowing installation in locations such as ATMs, height strips, or data center racks. - Maximum resolution of up to 2MP (1920 x 1080)
- Supports multiple streaming
- Supports motion detection, audio detection, face detection with metadata, tampering, virtual line, enter/exit, and disappear
Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNetIII SNB-6011B 2MP Modular Covert Network Camera with Audio Support and 4.9' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Hanwha Techwin WiseNetIII SNB-6011B 2MP Modular Covert Network Camera with Audio Support and 4.9' can be downloaded in PDF format at the link stated below.
Technical parametersHanwha Techwin SNB-6011B-15 Specs | | | Imaging Device | 1/2.8" 2.38 MP CMOS | | Total Pixels (H x V) | 1,952 x 1,116 | | Effective Pixels (H x V) | 1,944 x 1,104 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.3 lux (1/30 sec, F2.5, 50IRE) | | Output | CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (NTSC), 720 x 576 (PAL), for installation DIP connector type | | | | Focal Length | 2.4mm pinhole | | Maximum Aperture Ratio | f/2.0 | | Angular Field of View | Horizontal: 134.3°
Vertical: 70.9° | | Minimum Object Distance | 0.98' (0.3 m) | | Mount Type | RJ12 connected with main unit | | | | Camera Title | Off / On (displays up to 45 characters) | | Day & Night | Auto (Electrical) / Color / B&W / Schedule | | Backlight Compensation | Off / BLC / WDR | | Wide Dynamic Range | 120 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNRIII (2D+3D noise filter) (Off / On) | | Digital Image Stabilizer | Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 x 4-point polygonal zones) | | Privacy Masking | Off / On (32 zones with 4 points of polygonal) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 to 1/12,000 sec) | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection with metadata | | Alarm I/O | 1 x Input
1 x Output | | Alarm Triggers | Motion detection, Alarm input, Video analytics, Network disconnection, Audio detection | | Alarm Events | File upload via FTP and email
Notification via email
Local storage (microSD/SDHC/SDXC), or NAS recording at event (alarm triggers)
External output | | | | Type | Bi-directional audio (2-way) | | Audio In | Selectable (Mic in / Line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms | | Audio Out | Line out (3.5 mm stereo mini jack)
Max Output Level: 1 Vrms | | Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 / 24 / 32 / 40 kbps | | | | Ethernet | RJ45 (10/100BaseT) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264:
Maximum 30 fps at all resolutions
MJPEG:
Maximum 15 fps at 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Maximum 30 fps at 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Video Quality Adjustment | H.264: Compression level, Target bit rate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR
MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | IP | IPv4, IPv6 | | Protocol | TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, and Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at unicast mode | | Edge Storage | microSD/SDHC/SDXC
Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded
NAS (Network Attached Storage) | | Application Programming Interface | ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Romanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, and Norwegian | | Web Viewer | Supported OS:
Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Supported Browser:
MS Explorer 11, Mozilla Firefox 43, Apple Safari 9 | | Central Management System | Smart Viewer, SSM software | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Humidity | Less than 90% RH | | | | Input Voltage | 12 VDC, PoE (IEEE 802.3af) | | Power Consumption | Maximum 6.5 W at 12 VDC
Maximum 7.5 W at PoE | | | | Material | Plastic | | Dimensions | Camera Header: 0.94 x 1.97" (2.4 x 5 cm)
Main Unit: 5.16 x 1.1 x 3.39" (13.1 x 2.8 x 8.6 cm)
Cable Length: 4.9' (1.5 m) | | Weight | Camera Header (Including Cable): 2.8 oz (80 g)
Main Unit: 9 oz (255 g) |
