User Manual for Hanwha Techwin WiseNetIII SND-5084 1.3MP 2.8x Zoom Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNetIII SND-5084 1.3MP 2.8x
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNetIII SND-5084 1.3MP 2.8x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|

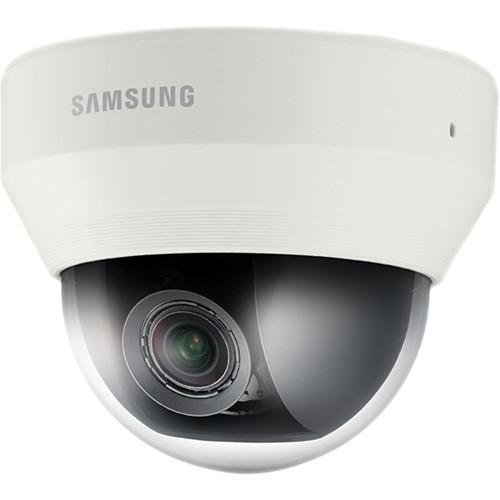

Product description The WiseNetIII SND-5084 1.3MP 2.8x Zoom Network Dome Camera from Samsung features the WiseNetIII chipset for capturing enhanced high-definition images. Its 1/3" progressive scan CMOS sensor captures 1280 x 1024 resolution video at up to 60 fps. It is also capable of delivering video in light as low as 0.05 lux, creating clear images under low-light conditions. This camera has a 3-8.5mm varifocal lens with a wide 93.3-33.2° diagonal field of view to monitor large areas. PoE technology eases installation and the IK08-rated enclosure provides protection against impact. - 1.3MP 1/3" progressive-scan CMOS sensor captures 720p video at up to 60 fps
- 3-8.5mm motorized varifocal lens with a 93.3-33.2° diagonal field of view
- Electronic day/night function
- Motion detection and privacy masking
- H.264 and MJPEG compression
In the Box Hanwha Techwin WiseNetIII SND-5084 1.3MP 2.8x Zoom Network Dome Camera Software CD and DVD Testing Monitor Cable Power Terminal Block Alarm Cable 2 x Mounting Hardware Alignment Template Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNetIII SND-5084 1.3MP 2.8x Zoom Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SND-5084 Specs | | | Imaging Sensor | 1.3 MP 1/3" progressive scan CMOS sensor | | Total Pixels | 1312 x 1069 | | Effective Pixels | 1305 x 1049 | | Minimum Illumination | Color: 0.05 lux (1/30 sec, f/1.2, 50 IRE), 0.0008 lux (2 sec, 50 IRE)
B&W: 0.005 lux (1/30 sec, f/1.2, 50 IRE) | | Signal to Noise Ratio | 50 dB | | Video Output | CVBS: 1 V p-p 75 Ohms composite, 704 x 480, for installation, DIP connector type | | | | Lens | 3-8.5mm motorized varifocal | | Maximum Aperture Ratio | f/1.2 | | Angular Field of View | Horizontal: 93.3-33.2°
Vertical: 73.7-26.6° | | Minimum Object Distance | 1.64' (0.5 m) | | Focus Control | Simple focus (motorized V/F)/Manual
Remote control via network, Button control (Manual, Simple focus) | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | Camera Control | Pan: 0 to 354°
Tilt: 0 to 67°
Rotate: 0 to 355° | | | | Camera Title | Off / On (Displayed up to 40 characters) | | Day & Night | Auto (ICR) / Color / B&W / External / Schedule | | Backlight Compensation | Off / BLC | | Wide Dynamic Range | 130 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNRIII (2D + 3D noise filter) (Off / On) | | Image Stabilization | Digital: Off / On | | Defog | Off / Auto / Manual | | Motion Detection | Off / On (4 x 4 points polygonal zones) | | Privacy Masking | Off / On (32 zones with 4 points of polygonal) | | Gain Control | Off / Low / Middle / High | | White Balance | ATW / AWC / Manual / Indoor / Outdoor | | Electronic Shutter Speed | Minimum / Maximum / Anti-flicker (2 to 1/12,000 sec) | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, Virtual line, Enter/Exit, Appear / Disappear, Audio detection, Face detection | | Alarm I/O | 1 x input, 1 x output | | Alarm Triggers | Motion detection, tempering, audio detection, face detection, video analytics, network disconnection, alarm input | | Alarm Events | File upload via FTP and email, notification via email, TCP and HTTP
Local storage (available separately) recording at network disconnected and event (alarm triggers), external output | | | | Ethernet | RJ45 10/100Base-T | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480, 320 x 240 | | Frame Rate | H.264: Maximum 60 fps at all resolutions
MJPEG: Maximum 30 fps at all resolutions | | Video Quality Adjustment | H.264: Compression level, Target bitrate level control
MJPEG: Quality level control | | Bit Rate Control | H.264: CBR or VBR, MJPEG: VBR | | Streaming Capability | Multiple streaming (Up to 10 profiles) | | IP | IPv4, IPv6 | | Audio | Audio In: Selectable (Mic in / Line in), Max output level: 1 Vrms
Supply Voltage: 2.5 VDC (4 mA), Input Impedance: Approximately 2 kOhms
Audio Out: Line out (3.5 mm stereo mini jack)
Audio Compression Format: G.711 u-law / G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16, 24, 32, 40 kb/s
Audio Communication: Bi-directional audio | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication | | Streaming Method | Unicast / Multicast | | Maximum User Access | 15 users at unicast mode | | Memory Slots | microSD slot supports up to 64 GB | | Application Programming Interface | ONVIF Profile S, HTTP API v2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Romanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP, Vista, 7, 8, 8.1, Mac OS X 10.7
Supported Browsers: Microsoft Internet Explorer (Ver. 11, 10, 9, 8), Mozilla Firefox (Version 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9), Google Chrome (Version 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15)Windows only
Apple Safari (Version 6.0.2 using Mac OS X 10.8, 10.7 only, 5.1.7) Mac OS X only Windows 8 is supported only in desktop mode. | | Recommended | Recommended Specifications: PC
CPU: Intel Core 2 Duo 2.4 GHz or higher (for using 1280 x 1024 30 fps)
Intel Core i7 2.8 GHz or higher (for using 1280 x 1024 60 fps)
Web Plug-in is optimized to SSE 4.1 instruction set
Resolution: 1280 x 1024 pixels or higher (32 bit color)
RAM: 2 GB or higher 7)
For IPv6 connection, Window 7 or higher is recommended
Video Memory: 256 MB or higher
Memory Card
For the framerate below 30 fps, it is recommended to use the specification memory card of Class 6 or higher
For frame rate over 31 fps, it is recommended to use the specification memory card of Class 10 UHS or higher
It is recommended to set the storage frame rate to 30 fps or lower when you use the embedded SD memory card | | Central Management | Central Management Software: SmartViewer, SSM | | | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | Less than 90% RH | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Storage Humidity | Less than 90% RH | | | | Input Voltage/Current | 12 VDC, PoE (IEEE 802.3af class3) | | Power Consumption | Maximum 9 W (12 VDC), maximum 11 W (PoE, Class3) | | | | Material | Polycarbonate (PC) | | Dimensions (Ø x H) | 5.2 x 4.24" (132.1 x 107.6 mm) | | Weight | 1.2 lb (0.53 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 6.4 x 6.3 x 5.2" |
