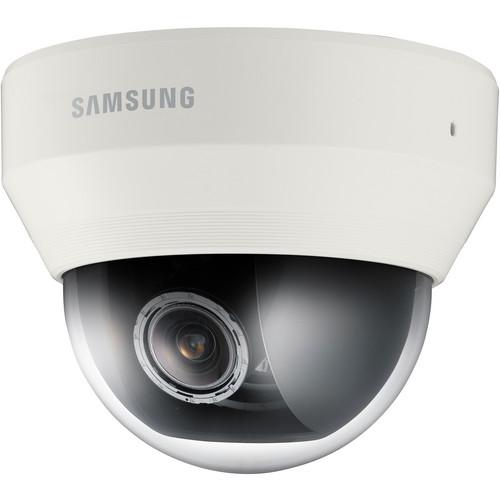

User Manual for Hanwha Techwin WiseNetIII SND-6083 2Mp Full HD Color Indoor Day & Night Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Hanwha Techwin WiseNetIII SND-6083 2Mp Full
- Product category: Wired IP Cameras Hanwha Techwin
- Brand: Hanwha Techwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hanwha Techwin Wired IP Cameras
|
User manual for the Hanwha Techwin WiseNetIII SND-6083 2Mp Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hanwha Techwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hanwha Techwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hanwha Techwin product will considerably shorten its lifespan!
|
Product description The ivory WiseNetIII SND-6083 2Mp Full HD Color Indoor Day & Night Network Dome Camera with 3 to 8.5mm (2.8x) Varifocal Lens from Samsung captures High Definition images at 1080p resolution (at 30fps). The camera features WDR that captures clear images even under backlighting, where the intensity of illumination varies considerably. It also supports low light performance down to 0.1 lux (F1.2, 50 IRE, color) for clear images in low light conditions.With enhanced features and new technologies to combat the challenges of tough environmental conditions, the SND-6083 Camera is suitable for the professional security market. - SSle (Samsung Super light enhancer)
- This camera incorporates SSLe technology for capturing high-quality color images in low light conditions. With SSLE, you can monitor the scene in 2Mp even under low light conditions, so that there is little chance of missing any movement in dark areas.
- 2Mp 100 dB WDR (Wide Dynamic Range)
- The WDR function provides 30fps of 2Mp enhanced picture quality by reducing motion blur and processing clear images. While working with a contrast ratio of approximately 100 dB, the WDR feature allows for accurate reproduction of the detail of the images in scenes that simultaneously contain very bright and dark areas.
- Defog
- Defog can be used to help improve the image captured in poor weather conditions such as smog, fog, or smoke. The visibility of the camera can be enhanced in any weather condition with this feature.
- Enhanced DIS (Digital Image Stabilization)
- The camera features DIS (Digital Image Stabilization) technology that negates the effects of camera shaking because of high wind or building vibration. DIS also greatly reduces the rolling shutter effect such as image wobble or skew that can often be seen in high-quality images. With enhanced DIS technology, the problems of monitoring using a camera installed on a pole or in windy conditions can be reduced. This also assists in capturing or detection of fast moving car number plates.
- P-Iris
- This camera supports the P-Iris system, which optimizes the iris function when multiple lighting conditions exist in a single scene. This results in images with better contrast, clarity, resolution, and depth of field. The optimization of resolution at both the center and corner of the image, as well as the depth of field and shutter speed provide increased image sharpness especially effective in Mp cameras.
- 60fps at 2 Mp Resolution
- The camera has a frame rate of 60fps at 2 Mp 1080p resolution; this results in latency free clear images. It is possible to utilize this frame rate in multiple ways. For example, using 60fps at 2 Mp 1080p resolution can be particularly beneficial when viewing moving objects to ensure that any edges are kept sharp and clear. By dividing the frame rate between the NVR and PC monitoring, you can record and monitor the scene in real time.
- Improved Bandwidth Utilization
- By applying an advanced compression technology, this network camera's streaming performance is greatly enhanced. The camera can process data streaming using 30% of the network bandwidth of other products. Because of improved bandwidth technology, seamless image transfer is possible even when limited network bandwidth available, thereby improving storage efficiency.
- Multi-Crop Streaming
- Multi-crop streaming allows you to highlight/crop areas of the scene so that only those areas of interest will be transmitted from the camera in a predetermined resolution and frame rate. This flexibility in the video's resolution and frame rate allows smart and efficient use of the network's bandwidth, resulting in reduced data size and storage capacity.
- Simple Focus
- The motorized varifocal lens with a remote control function allows you to control focus adjustments. You can also adjust the optimal focus remotely via the network, reducing the installation/optimization time of the camera.
- Multi-Browser Support
- This camera utilizes NPAPI (Netscape Plug-in Application Programming Interface). This plug-in architecture removes the limitation on supporting resolution and Web-browser types. NPAPI is designed to satisfy both sides, the operating system and a solution for adopting Samsung Techwin's optimized security system codec. NPAPI, Google Chrome, Safari, Firefox, and IE can be used to monitor the WiseNetIII camera.
- Easy Installation
- This dome camera is pigtail and cable bundle free, and yet provides the option to plug-in cables as required in an area that allows ample room for cable movement, which improves installation time.
- Motion/Audio/Face Detection
- The motion detection technology reduces false alarm rate and improves the efficiency of the operators by learning what is the normal motion of the scene it can ignore, such as waves in the sea or the leaf movement of trees. This technology has also been adopted for audio detection so that the camera will only recognize abnormal noise levels. Face detection is also available and will detect up to 35 faces in the scene; these will be listed on the NVR as separate events for quick recall. 1
Please Note: NVR sold separately. close - Applications
- For the applications, you can use edge storage as a recording solution, SmartViewer CMS for management, and iPOLiS mobile for Smartphone Monitoring. For mid/large applications, hardware/software NVRs can be used as the recording solution while Samsung Security Manager (SSM) can be used as the monitoring/management software.
Brochure PDF 459.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin WiseNetIII SND-6083 2Mp Full HD Color Indoor Day & Night Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin SND-6083 Specs | | | Imaging Device | 1/2.8" PS Exmor 2.38M CMOS | | Total Pixels (H x V) | 1952 x 1116 | | Effective Pixels (H x V) | 1944 x 1104 | | Scanning System | Progressive | | Minimum Illumination | Color: 0.1 lux (F1.2, 50IRE), B&W: 0.1 lux (F1.2, 50IRE) | | S/N Ratio | 50 dB | | Video Output | CVBS: 1.0 Vpp / 75 Ω composite, 704 x 480 (N), 704 x 576 (P) for installation DIP connector type | | | | Focal Length (Zoom Ratio) | 3 to 8.5 mm (2.8x) varifocal | | Maximum Aperture Ratio | F1.2 | | Angular Field of View | H: 106.18° (Wide) to 37.1° (Tele) / V: 58.42° (Wide) to 20.94° (Tele) | | Minimum Object Distance | 164.0' (50.0 m) | | Focus Control | Manual | | Lens Type | DC auto iris | | Mount Type | Board-in type | | | | Range | Pan: 0 to 354°
Tilt: 0 to 67°
Rotate: 0 to 355° | | | | Camera Title | Off / On (displayed up to 45 characters) | | Day & Night | Auto (electrical) / color / B&W / external / schedule | | Backlight Compensation | Off / BLC | | Wide Dynamic Range | 100 dB | | Contrast Enhancement | SSDR (Samsung Super Dynamic Range) (Off / On) | | Digital Noise Reduction (DNR) | SSNRIII (2D+3D noise filter) (Off / On) | | Digital Image Stabilizer | Off / On | | Defog | Off / auto / manual | | Motion Detection | Off / On (4ea 4 points polygonal zones) | | Privacy Masking | Off / On (32 zones with 4 points of polygonal) | | Gain Control | Off / low / middle / high | | White Balance | ATW / AWC / manual / indoor / outdoor | | Electronic Shutter Speed | Minimum / maximum / anti flicker (2 to 1/12,000 sec) | | Flip / Mirror | Off / On | | Intelligent Video Analytics | Tampering, virtual line, enter/exit, appear / disappear, audio detection, face detection | | Alarm I/O | Input 1ea / output 1ea | | Alarm Triggers | Motion detection, audio detection, face detection, video analytics, alarm input, network disconnection | | Alarm Events | File upload via FTP and e-mail, notification via e-mail, TCP and HTTP, local storage (SD/SDHC/SDXC) recording at network disconnected & Event (alarm triggers), external output | | | | Ethernet | RJ-45 (10/100BASE-T) | | Video Compression Format | H.264 (MPEG-4 part 10/AVC), MJPEG | | Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Maximum Frame Rate | H.264: Maximum 60 fps at all resolutions
MJPEG: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Maximum 15 fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Maximum 30 fps | | Video Quality Adjustment | H.264: Compression level, target bitrate level control
MJPEG: Quality level control | | Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR | | Streaming Capability | Multiple streaming (up to 10 profiles) | | Audio I/O | Selectable (mic in / line in)
Maximum Output Level: 1 Vrms Supply Voltage: 3.3 VDC (4 mA)
Input Impedance: Approximately 2 kΩ | | Audio Compression Format | G.711 u-law /G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726 : 16, 24, 32, 40 kb/s | | Audio Communication | Bi-directional audio | | IP | IPv4, IPv6 | | Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | | Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication | | Streaming Method | Unicast / multicast | | Maximum User Access | 15 users at unicast mode | | Memory Slots | Micro SD / SDHC / SDXC
Motion images recorded in the SDXC / SDHC / SD memory card can be downloaded | | Application Programming Interface | ONVIF profile S, HTTP API v2.0, SVNP 1.2 | | Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish, Norwegian | | Web Viewer | Supported OS: Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser: Microsoft Internet Explorer (Version 10, 9, 8, 7)
Mozilla Firefox (Version 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9)
Google Chrome (Version 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15)
Apple Safari (Version 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7)
Mac OS X only | | Central Management | SmartViewer 4.0 | | | | Temperature | Operating: 14 to 131°F (-10 to +55°C)
Storage: -22 to 140°F (-30 to +60°C) | | Humidity | Less than 90% RH | | | | Input Voltage/Current | 12 VDC, PoE (IEEE802.3af class3) | | Power Consumption | Maximum 8.5 W (12 VDC), Maximum 10 W (PoE, Class3) | | | | Material | Plastic | | Dimensions (Ø x H) | 5.20 x 4.24" (132.10 x 107.60 cm) | | Weight | 1.07 lb (0.48 kg) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 6.3 x 6.3 x 5.2" |
